Resistance Probes

Resistance probes are designed for applications where stable and reproducible temperature values are essential. Based on the resistance principle, they measure temperature with high consistency and support precise monitoring across industrial processes and machinery. This gives you a reliable basis for continuous temperature measurement, helping you maintain signal quality, compare values with confidence, and keep thermal conditions under control in daily operation.
View all products

Product Overview (23)

Stick-in safety resistance temperature sensor, head connection TR293

RTD temperature sensor for exhaust gas and air measurement with 2 x Pt100 class A, 3-wire elements, -100..+600 °C operating temperature, 25 bar process pressure and ATEX Ex-ia certification.

Screw-in safety resistance temperature sensor, head connection TR296

RTD temperature sensor for water, oil and air measurement measurement with 2 x Pt100 class A, 3-wire elements, -100..+600 °C operating temperature, 40 bar process pressure and ATEX Ex-ia certification.

Resistance temperature probe, PFA-encapsulated TF101P

RTD temperature probe with fully PFA-encapsulated measuring tip, 3x50mm, DIN class A accuracy, -60 ... +250 °C measuring range and IP68 welded tip.

Stick-in temperature probe for EX areas GTF101-EX

Resistance temperature probe for Ex areas with Pt100 or Pt1000, 4-wire design, fixed cable, compact 100 mm x 6 mm standard probe tube and measuring ranges up to -200 ... +600 °C.

Screw in resistance temperature probe GTF102P

GTF102P is screw-in resistance temperature sensor in a 3mm stainless steel tube with fixed cable. It is available as Pt100 or Pt1000 (1/10B, AA, A or B class), thinfilm or wire-wound in custom length.

Resistance temperature probe for Ex areas, threaded process fit GTF102-EX

Resistance temperature probe for Ex areas with Pt100 or Pt1000 4-wire elements, fixed cable, G 1/2"A standard thread, 100 mm x 6 mm probe tube and measuring ranges up to -200 ... +600 °C.

Stick-in resistance temperature probe, M12 connection GTF111P

GTF111P is stick-in resistance temperature sensor in a 3mm stainless steel tube with 4-pole M12 plug. It is available as Pt100 or Pt1000 (1/10B, AA, A or B class), thinfilm or wire-wound in custom length.

Stick-in resistance temperature probe for Ex areas, M12 connection GTF111-EX

Resistance temperature probe for Ex areas with Pt100 or Pt1000 4-wire elements, M12 connection, compact 100 mm x 6 mm standard probe tube and measuring ranges up to -200 °C ... +600 °C.

Screw-in resistance temperature probe, M12 connection GTF112P

GTF112P is screw-in resistance temperature sensor in a 3mm stainless steel tube with 4-pole M12 plug. It is available as Pt100 or Pt1000 (1/10B, AA, A or B class), thinfilm or wire-wound in custom length.

Screw in resistance temperature probe for Ex areas, M12 connection GTF112-EX

Resistance temperature probe for Ex areas with Pt100 or Pt1000 4-wire elements, M12 connection, G 1/2"A thread, compact 100 mm x 6 mm standard probe tube and measuring ranges up to -200 °C ... +600 °C.

Stick-in resistance temperature probe GTF200

GTF200 is stick-in resistance temperature sensor in standard configuration. Pt100 (DIN B class) sensor element in 5x50mm stainless steel tube for working temperatures of -50...+200°C with 4-wire silicon cable.

Compact temperature transmitter for hygienic process temperature measurement Thermocont TK

Compact temperature transmitter for process temperature measurement in gases, vapors, liquids and dusts, with Pt100 class A sensor, -50°C...+150°C range, 4...20 mA or Pt100 output and ingress protection (IP67).

Ultra-compact temperature sensor for fast process temperature measurement Thermocont TK4SS

Ultra-compact temperature sensor for process temperature measurement from -50°C...+200°C, with Pt100 or Pt1000 class A sensor, 4...20 mA/FSK, RS485 Modbus-RTU or IO-Link outputs and ingress protection (IP69K/IP67).

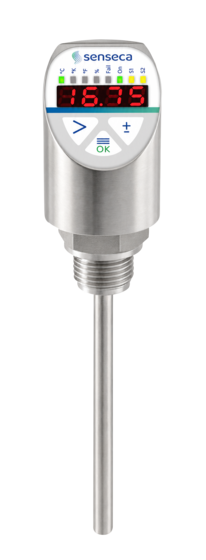

Temperature transmitter for process temperature monitoring up to +500°C Thermocont TS4S

Temperature transmitter for process temperature measurement in gases, vapors, liquids and dusts, with Pt100 class A sensor, -99.9°C...+500°C range options, up to 100 bar process pressure, display, 4...20 mA and PNP outputs.

Resistance thermometer for Pt100 process temperature measurement PTA

Resistance thermometer for temperature measurement with Pt100 or Pt1000 elements, -70°C...+300°C standard tip range, AA, A or B tolerance, stainless steel 1.4571 protection tube and configurable process connection.

Resistance thermometer for flush weld Pt100 temperature measurement PTB

Resistance thermometer for flush weld temperature measurement with Pt100 or Pt1000 elements, -70°C...+300°C standard tip range, AA, A or B tolerance and stainless steel 1.4571 process-side materials

You have seen 16/23 products
