Flow Meters without Electrical Function

For applications where local flow indication is sufficient, non-electrical flow meters provide a simple way to monitor liquid or gas movement without auxiliary power. Using purely mechanical or visual operating principles, they help you assess process conditions directly on site and support robust flow checking in industrial systems, supply lines, and service environments.
View all products
Variable Area Flowmeter

Product Overview (4)

Flowmeter for water and air with optional switch output GK

Flowmeter for water and air flow measurement, covering water from 2...650 l/min and air from 0.02...37.5 Nm³/h, with DN 10...25 sizes, clear scale reading and optional reed switch output.

Variable area flow meter for water and gas lines GKL

Variable area flow meter for water and gas lines, with DN 25..50 sizes, water ranges from 20 – 250 l/h to 1 – 10 m³/h, air ranges from 0.4 – 4 to 20 – 250 Nm³/h, a clear scale and optional reed switch.

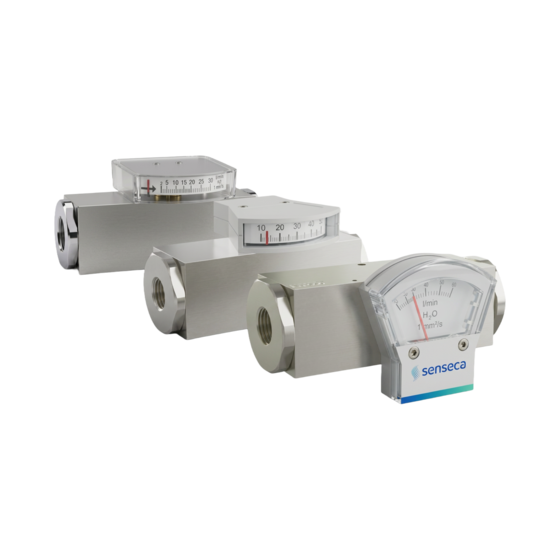

Flow indicator for water without power supply H1

Flow indicator for water flow monitoring with 0.1...85 l/min ranges, DN 8...25 internal threads and individually calibrated indication, for horizontal left-to-right flow without electrical supply.

Flow indicator for oil without power supply H2

Flow indicator for oil flow monitoring with individually calibrated mechanical indication, 0.5...65 l/min ranges, DN 8...25 internal threads and brass or stainless steel wetted parts.

You have seen 4/4 products
