Electronical Flow Meters

Electronic flow meters measure liquid flow using application-specific sensing principles such as dynamic orifice, impeller, magnetic-inductive, thermal, piston, or turbine technology. This allows you to match the measuring method to the medium, flow range, and operating conditions, supporting reliable flow monitoring and process control in industrial fluid systems, cooling circuits, and automation applications.
View all products
Dynamic Orifice
Impeller
Magnetic-Inductive
Piston
Thermal
Turbine
Volumeters (Gear Wheel & Screw)

Product Overview (40)

Thermal flow and temperature transmitter for liquids OMNIPLUS-F

Flow meter and thermometer for liquids, measuring flow from 2...300 cm/s and medium temperature with thermal sensing, 1.2 inch graphic LCD, IO-Link, analog output and two configurable switch outputs.

Piston inline flow transmitter OMNIPLUS-HD1

Flow measurement with spring-supported piston for water and low-viscous media

Piston inline flow transmitter OMNIPLUS-HD2

Flow transmitter for viscous media measurement, covering 0.5 ... 60 l/min for oils and media from 30 ... 330 mm²/s. It combines configurable outputs, IO-Link and an IP65/IP67 housing.

Piston inline flow transmitter OMNIPLUS-HR1MV

Flow transmitter for oil and viscous media measurement, covering 2 ... 200 l/min in DN 32, DN 40 and DN 50 for 30 ... 200 mm²/s. It combines configurable outputs, IO-Link and IP65/IP67 protection.

Piston inline flow transmitter OMNIPLUS-HR2

Flow transmitter for water flow monitoring up to 300 l/min

Piston inline flow transmitter OMNIPLUS-HR2V

Flow transmitter for viscous oil media up to 160 l/min

Piston inline flow transmitter OMNIPLUS-MR1

Flow transmitter for industrial water circuits up to PN 200

Flow transmitter for low-viscosity liquids, 0.1...12 l/min OMNIPLUS-RRH-010

Flow transmitter for water and low-viscosity liquids, covering 0.1...12 l/min in DN 10 and PN 100, with LCD, IO-Link, analog output and two configurable switching outputs.

Flow transmitter for low-viscosity liquids, 2...100 l/min OMNIPLUS-RRH-025

Flow transmitter for water and low-viscosity liquids, covering 2...100 l/min in DN 25 up to PN 100, with LCD, IO-Link, analog output and two configurable switching outputs.

Flow transmitter for low-viscosity liquids, 0.1...12 l/min OMNIPLUS-RRI-010

Flow transmitter for water and low-viscosity liquids, covering 0.1...12 l/min in DN 10 and PN 16, with LCD, IO-Link, analog output and two configurable switching outputs.

Flow transmitter for low-viscosity liquids, 2...100 l/min OMNIPLUS-RRI-025

Flow transmitter for water and low-viscosity liquids, covering 2...100 l/min in DN 25 and PN 16, with LCD, IO-Link, analog output and two configurable switching outputs.

Flow transmitter for high-pressure liquid flow monitoring RRH-010/025

Flow transmitter for liquid flow monitoring from 0.1...100 l/min H2O, with DN 10 or DN 25 sizes, Hall sensor, metal housing, PNP or NPN output and ingress protection (IP67).

Flow transmitter for liquid flow without inlet or outlet runs RRI-010/025

Flow transmitter for liquid flow measurement from 0.1...100.0 l/min H2O, with DN 10 or DN 25 sizes, PNP, NPN o.C. or optional NAMUR output and IP 67 protection.

Flow transmitter for DN32 and larger pipes, 0.3 to 6 m/s RRH-032

Flow transmitter for DN 32 and larger pipes measures 0.3 to 6 m/s and supports push-pull, 4–20 mA, 0–10 V, frequency or limit switch outputs. Stainless steel design with ingress protection (IP65).

Flow transmitter for DN 32 and larger pipes, 0.3 to 6 m/s RRI-032

Flow transmitter for liquid flow monitoring in pipes from DN 32, with a measuring range of 0.3...6 m/s. Selectable PNP/NPN, NAMUR, 4...20 mA, 0...10 V, frequency or limit switch output.

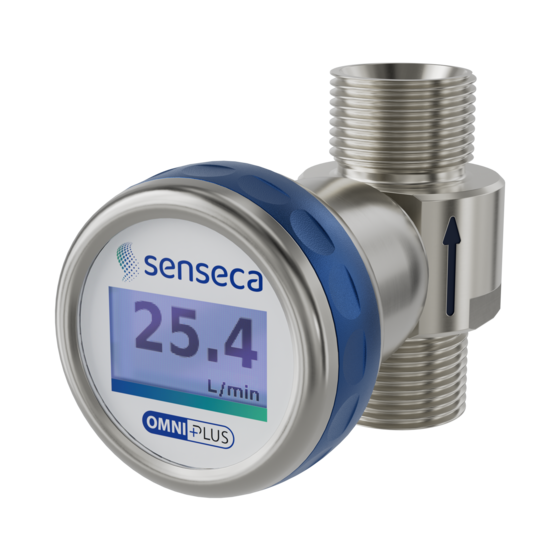

Turbine flow transmitter OMNIPLUS-RT

Flow transmitter with turbine flow measurement for low-viscosity media, high compressive strength PN250, no magnets in the flow chamber, and measurement uncertainty of 1 % F.S.

You have seen 16/40 products
