Float Level Switches

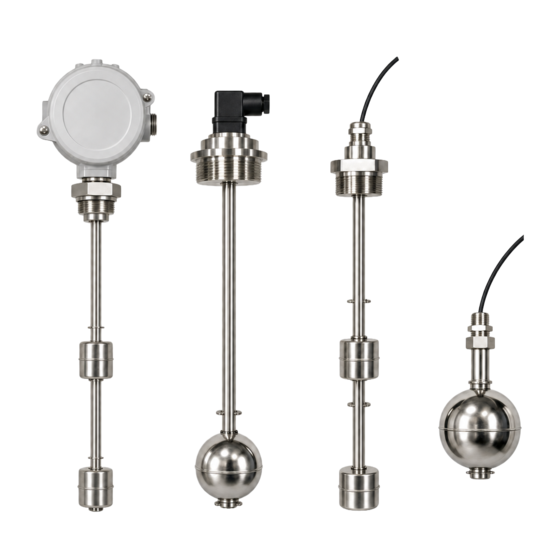

For robust point level control, float level switches use a magnetic float to actuate reed contacts inside the measuring rod. With the float as the only moving element, the principle supports reliable switching with low maintenance effort across industrial tanks and liquids. This gives you dependable level limit detection for monitoring and control tasks, helping you trigger clear actions when defined filling states are reached.
View all products

Product Overview (43)

Level switch for fluid media control - side installation MW3

Level switch for fluid media control with G ¾ A or G 1 A thread, micro switch, 250 V AC and 5 A switching capacity, IP65 protection and brass or stainless steel construction.

Level switch for fluid media control - side installation NW1

Level switch for fluid media monitoring with reed switch, G ¾ A or G 1 A thread, normally open or normally closed contact, max. 230 V AC, 1 A switching current, 50 VA capacity and IP65 protection.

Level switch for fluid media control - side installation NW3

Level switch for fluid media monitoring with reed switch, G ¾ A or G 1 A thread, normally open or normally closed contact, max. 230 V AC, 1 A switching current, 50 VA capacity and IP65 protection.

Level switch for multi-point liquid monitoring MULTIPOINT O

Level switch for multi-point liquid monitoring with up to 6 switch points, up to 6 m length, Spansil floats, brass rod options, 10 bar max pressure, IP65 outputs and optional built-in temperature sensors.

Level switch for ATEX hazardous-area tank control (Buna) MULTIPOINT L - O ATEX E

Level switch for hazardous-area tank level control, certified CESI 03 ATEX 272 Ext.2, with up to 4 switch points, 20 bar maximum working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT L - S ATEX E

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 6 m length, 50 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT L - S ATEX I

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 265 Ext.2, with up to 4 switch points, 50 bar working pressure and minimum IP65 protection.

Level switch for ATEX hazardous-area tank control (Buna) MULTIPOINT O - ATEX E

Level switch for hazardous-area tank control, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 6 m length, 10 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (Buna) MULTIPOINT O - ATEX I

Level switch for hazardous-area tank control, certified CESI 03 ATEX 265 Ext.2, with up to 6 switch points, 6 m length, 20 bar working pressure and minimum IP65 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT S - ATEX E

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 6 m length, 50 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT S - ATEX I

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 265 Ext.2, with up to 6 switch points, 6 m length, 50 bar working pressure and minimum IP65 protection.

Level switch for ATEX hazardous-area tank control (PVC, PP, PVDF) MULTIPOINT V-F ATEX E

Level switch for hazardous-area tank control in PVC, PP or PVDF, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 5 m length, 6 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (PVC, PP, PVDF) MULTIPOINT V-F ATEX I

Level switch for hazardous-area tank control in PVC, PP or PVDF, certified CESI 03 ATEX 265 Ext.2, with up to 6 switch points, 5 m length, 6 bar working pressure and minimum IP65 protection.

Level switch for multi-point liquid monitoring MULTIPOINT S

Level switch for liquid level control with AISI 316 construction, up to 6 switch points, rod lengths up to 6 m, working pressure up to 50 bars and minimum IP65 protection.

Level switch for multi-point liquid monitoring MULTIPOINT V-F

Level switch for liquid level control in PVC, PP or PVDF, with up to 6 switch points, rod lengths up to 5 m, 6 bars working pressure and minimum IP65 protection.

Level switch for liquid control up to 120 °C - side installation SIMPLE B77

Level switch for lateral liquid control with 1 or 2 SPDT microswitches, adjustable float rod and DN 25 process connection. It supports 10 bar pressure, 120 °C process temperature and IP65 electrical housing.

You have seen 16/43 products
