Solar Instruments

Reliable measurement of solar energy, irradiance, and daylight conditions forms the foundation of any serious meteorological or photovoltaic monitoring setup. Covering pyranometers, pyrheliometers, pyrgeometers, photometers, albedometers, and solar trackers, these instruments give you dependable data to assess solar resources, evaluate sunshine duration, and track radiation levels, helping you make informed decisions for renewable energy projects, weather stations, and climate research.
View all products
Albedometers
Net Radiometers
Photometers
Pyranometers
Pyrgeometers
Pyrheliometers
Soiling Systems
Solar Trackers System
Sunshine Duration Sensors
UV Radiometers

Product Overview (25)

Class C pyranometer for PV and solar irradiance monitoring LPPYRA-Lite

Class C pyranometer for PV and solar irradiance monitoring, measuring 0…2000 W/m2 with thermopile sensor and mV, 4…20 mA, RS485 Modbus-RTU or SDI-12 outputs.

Pyrheliometer for direct solar irradiance measurement LPPYRHE16

Pyrheliometer for direct solar irradiance measurement from 0…2000 W/m2, Spectrally Flat Class B to ISO 9060:2018, with mV, 4…20 mA, voltage or RS485 Modbus-RTU output.

Class A pyranometer for fast global irradiance monitoring LPR10

Class A pyranometer for fast global irradiance monitoring from -200…4000 W/m2, with < 0.3 s response, isolated RS485 Modbus-RTU, integrated heater, tilt and diagnostic sensors.

Class B pyranometer for global solar irradiance monitoring LPS02

Pyranometer for global solar irradiance monitoring, measuring 200…4000 W/m2 across 283…2800 nm. Spectrally Flat Class B with thermopile sensor, IP 67 housing and model-dependent Modbus, analog or mV output.

Class C pyranometer for global solar irradiance monitoring LPS03

Pyranometer for global solar irradiance monitoring, measuring 200…4000 W/m2 across 300…2800 nm. Spectrally Flat Class C with thermopile sensor, IP 67 housing and model-dependent Modbus, analog or mV output.

Class B albedometer for solar reflectance and net radiation LPS05

Albedometer for solar reflectance and net radiation, measuring incident and reflected solar radiation from 200…4000 W/m2. Spectrally Flat Class B with passive mV output, IP 67 protection and integrated bubble level.

Class C albedometer for solar reflectance and net radiation LPS06

Albedometer for solar reflectance and net radiation, measuring incident and reflected solar radiation from 200…4000 W/m2. Spectrally Flat Class C with passive mV output, IP 67 protection and integrated bubble level.

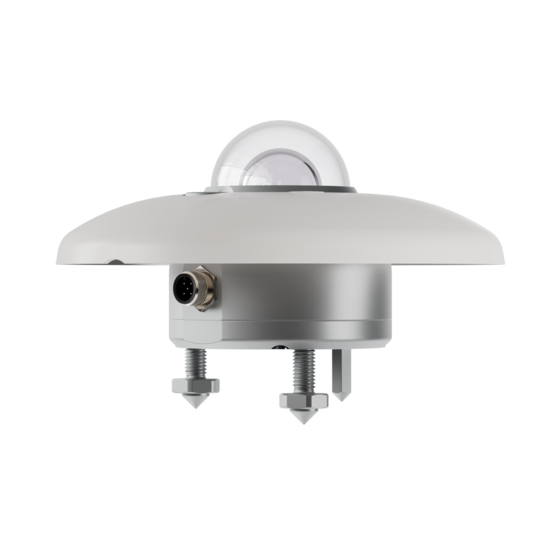

Class A pyranometer for solar irradiance monitoring LPS10

Class A pyranometer for solar irradiance monitoring, measuring -200…4000 W/m2 over 283…2800 nm, with thermopile sensor, IP 67 housing and RS485 Modbus-RTU, analog, 4…20 mA or mV outputs.

Class A albedometer for high-accuracy solar reflectance LPS11

Albedometer for high-accuracy solar reflectance, measuring incident and reflected solar radiation from 200…4000 W/m2. Spectrally Flat Class A with passive mV output, 283…2800 nm spectral range and IP 67 protection.

Class B pyranometer with shadow ring for diffuse solar irradiance LPS12

Pyranometer with shadow ring for diffuse solar irradiance, measuring 200…4000 W/m2 across 283…2800 nm. Spectrally Flat Class B with model-dependent Modbus, analog or mV output and IP 67 protection.

Class A pyranometer with shadow ring for diffuse solar irradiance LPS13

Pyranometer with shadow ring for diffuse solar irradiance, measuring 200…4000 W/m2 across 283…2800 nm. Spectrally Flat Class A with model-dependent Modbus, analog or mV output and IP 67 protection.

Sunshine duration sensor for WMO sunlight monitoring LPSD18

Sunshine duration sensor for WMO sunlight monitoring, measuring SRD 0…2000 W/m2 with 120 W/m2 threshold, 1 s resolution, RS485 Modbus-RTU, SDI-12 or analog outputs.

Silicon pyranometer for global solar irradiance LPSILICON-PYRA04

Silicon pyranometer for global solar irradiance, measuring 0…2000 W/m2 with passive mV output, 400…1100 nm spectral range, 5 m fixed cable and IP 67 housing.

UVA radiometer for outdoor and indoor irradiance monitoring LPUVA02

UVA radiometer for irradiance monitoring, measuring 0…200 W/m² over the UVA range with passive, 4...20 mA or 0...1 V, 0...5 V and 0...10 V output versions.

Radiometric probe for outdoor UVA irradiance monitoring LPUVA03

Radiometric probe for outdoor UVA irradiance monitoring, with UVA spectral measurement, mV, 4...20 mA, 0...10 Vdc or RS485 MODBUS-RTU output and diffuser with protection dome.

UV Index radiometer for meteorological monitoring LPUVI02

UV Index radiometer for meteorological monitoring, measuring 0…16 or 0…20 UV Index with analog 0…1 V, 0…5 V or 0…10 V output and IP 67 protection.

You have seen 16/25 products
