Class B pyranometer for global solar irradiance monitoring

LPS02

Pyranometer for global solar irradiance monitoring, measuring 200…4000 W/m2 across 283…2800 nm. Spectrally Flat Class B with thermopile sensor, IP 67 housing and model-dependent Modbus, analog or mV output.
Product Inquiry

Introduction

Reliable solar radiation data starts with a pyranometer that stays accurate in real outdoor conditions. This series measures global irradiance on a flat surface, covering direct and diffuse solar irradiance for environmental studies, research, meteorology and PV monitoring.

Measurements are based on a thermopile sensor with a 200…4000 W/m2 measuring range and 283…2800 nm spectral range. Spectrally Flat Class B classification according to ISO 9060:2018 and factory calibration according to ISO 9847:2023 support confident data quality in demanding monitoring networks.

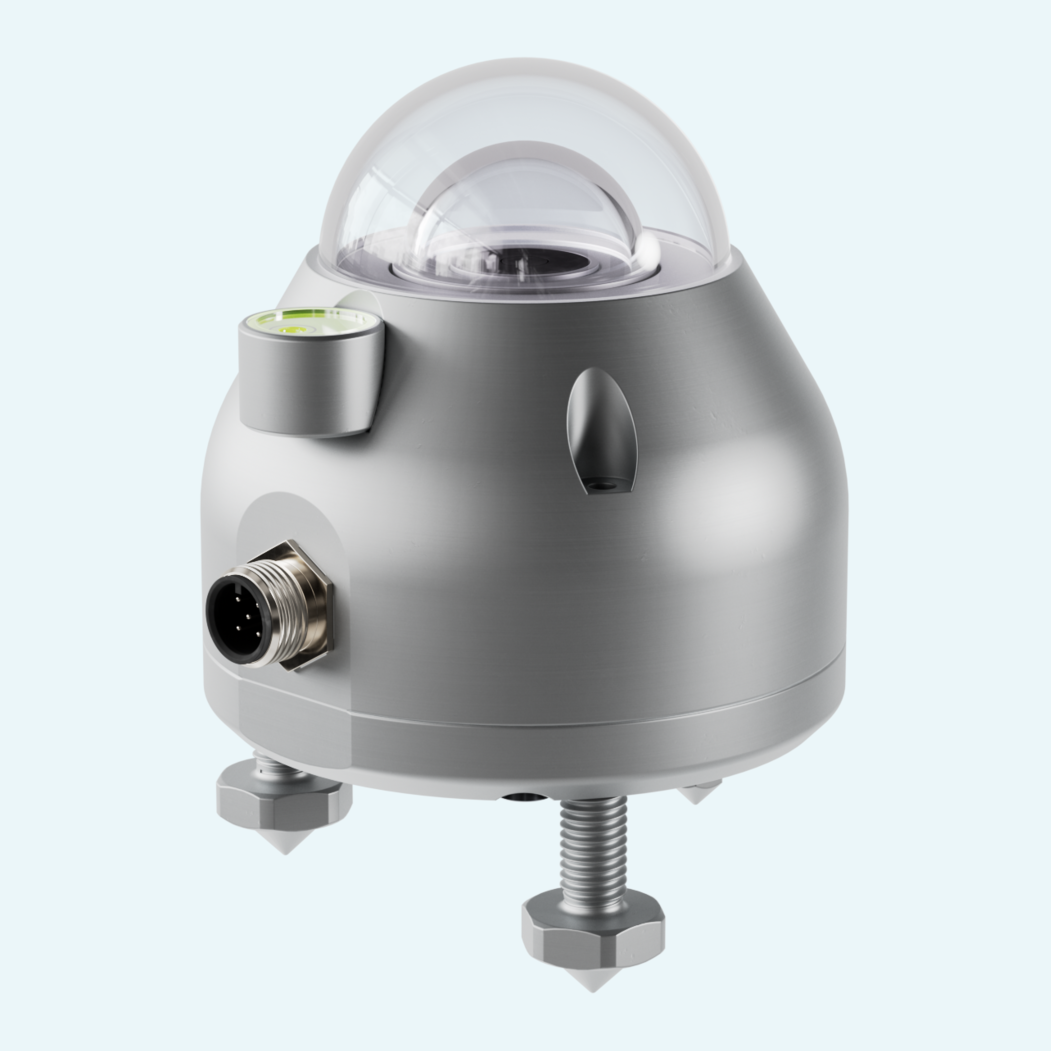

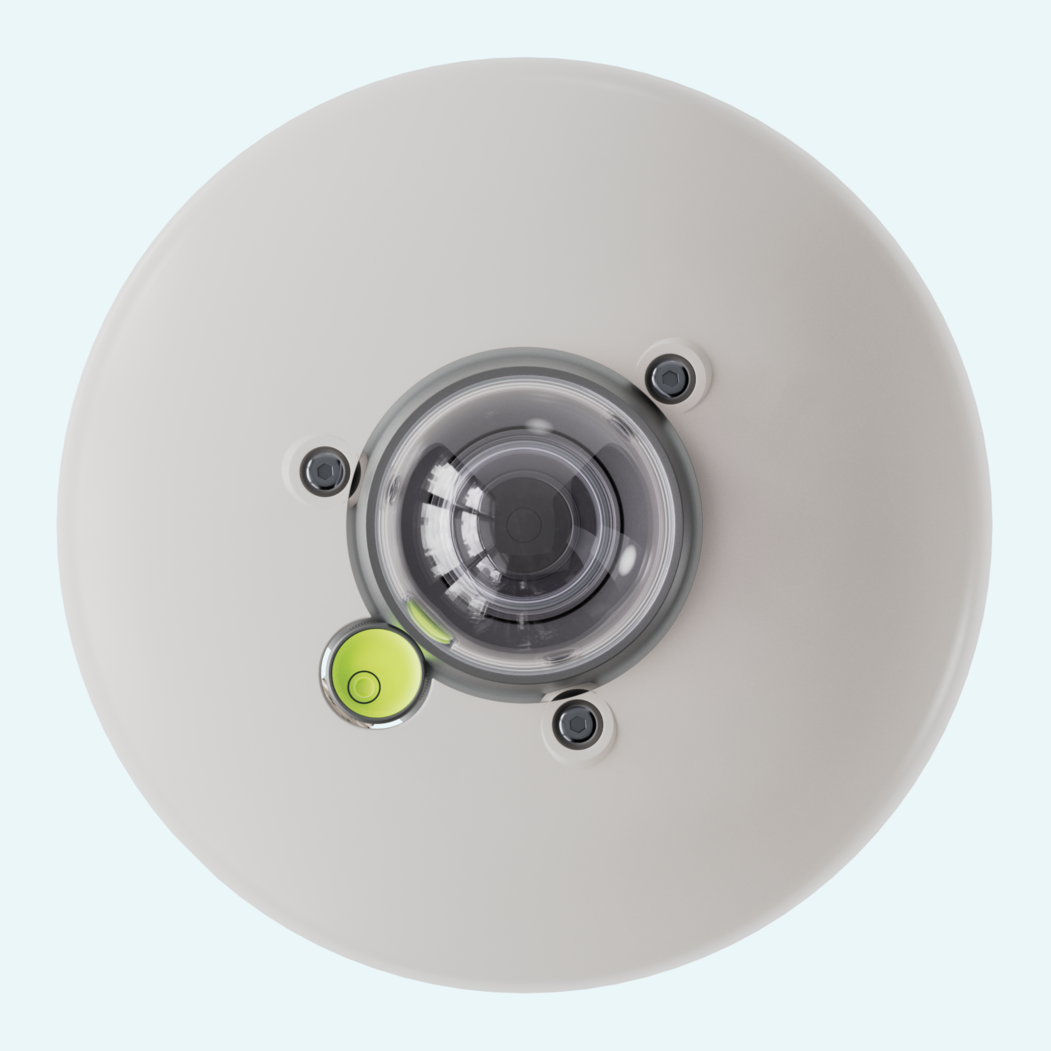

Installation and integration stay practical on site. Integrated bubble level and adjustable feet support horizontal positioning, while IP 67 protection, anodized aluminum housing, ASA screen and optical glass dome help the instrument withstand outdoor use. Depending on the model, outputs include RS485 Modbus-RTU, configurable analog signals, 2-wire 4…20 mA or passive mV.

Class B confidence
Spectrally Flat Class B according to ISO 9060:2018 for dependable solar irradiance data.
Wide solar coverage
Measures 200…4000 W/m2 across 283…2800 nm for global irradiance monitoring.
Outdoor durability
IP 67 protection with anodized aluminum housing, ASA screen and optical glass dome.
Flexible integration
Choose RS485 Modbus-RTU, configurable analog, 2-wire 4…20 mA or passive mV output.
Faster positioning
Integrated bubble level and adjustable feet support accurate horizontal installation.
Smart diagnostics
Digital models monitor internal temperature, humidity and pressure for condition checks.

Features

Thermopile measurement principle

The series uses a thermopile sensor with a black matt coated sensitive surface to measure global irradiance on a flat surface in W/m2.

Digital diagnostics

LPS02Mxx models include internal temperature, relative humidity and pressure sensors. Tilt monitoring is available on models with option T.

Configurable analog output

LPS02MAx models provide a configurable analog output with 4…20 mA default, plus 0…20 mA, 0…1 V, 0…5 V or 0…10 V options.

Software configuration

DATAsense PC software supports Modbus parameter setup, analog output range configuration, real-time monitoring and saving measured values to a file.

Installation design

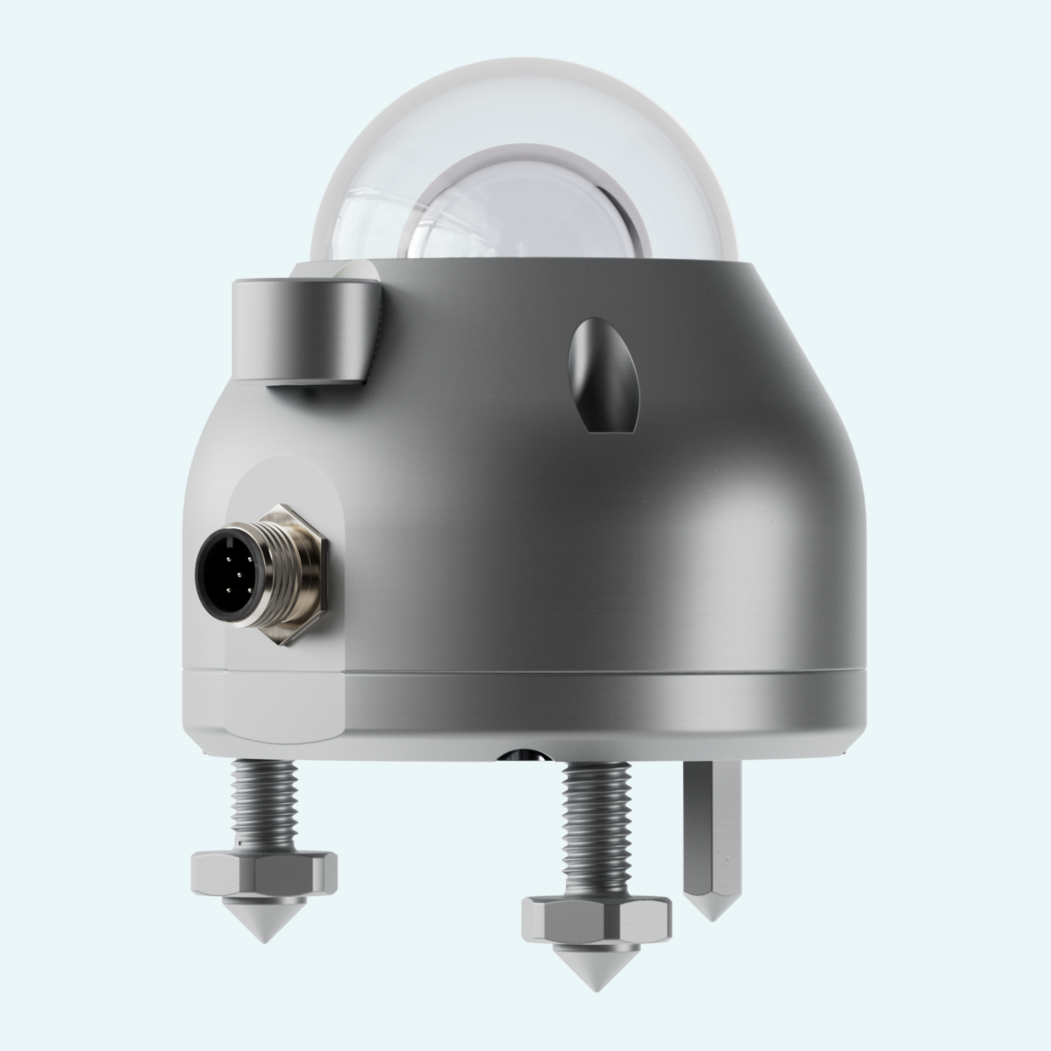

The housing includes an integrated bubble level, adjustable feet and M5 fixing holes. Optional brackets support mast mounting or inclined installation.

Calibration report

Each pyranometer is factory calibrated according to ISO 9847:2023 (Type A1) and supplied with an individual calibration report.
