Multiple Switching Point

When you need more than one level limit in the same tank, multi-point float switches provide several defined switching points along a single measuring rod. Multiple reed contacts are actuated by one or more magnetic floats, enabling stable monitoring of minimum, maximum, and intermediate levels. This allows you to control filling processes more precisely, reduce wiring complexity, and manage level-dependent sequences with confidence.
View all products

Product Overview (18)

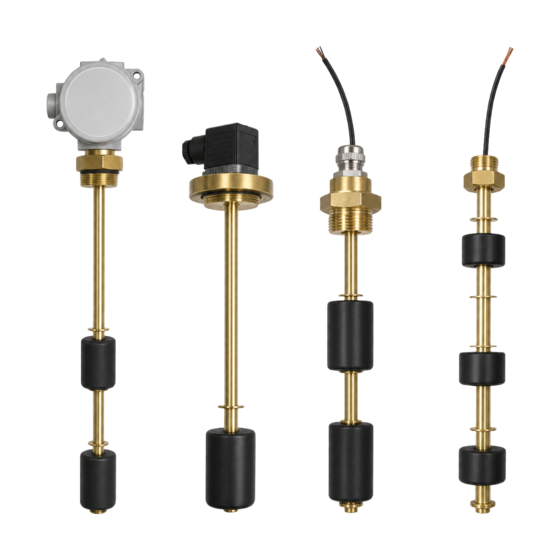

Level switch for multi-point liquid monitoring MULTIPOINT O

Level switch for multi-point liquid monitoring with up to 6 switch points, up to 6 m length, Spansil floats, brass rod options, 10 bar max pressure, IP65 outputs and optional built-in temperature sensors.

Level switch for ATEX hazardous-area tank control (Buna) MULTIPOINT L - O ATEX E

Level switch for hazardous-area tank level control, certified CESI 03 ATEX 272 Ext.2, with up to 4 switch points, 20 bar maximum working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT L - S ATEX E

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 6 m length, 50 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT L - S ATEX I

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 265 Ext.2, with up to 4 switch points, 50 bar working pressure and minimum IP65 protection.

Level switch for ATEX hazardous-area tank control (Buna) MULTIPOINT O - ATEX E

Level switch for hazardous-area tank control, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 6 m length, 10 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (Buna) MULTIPOINT O - ATEX I

Level switch for hazardous-area tank control, certified CESI 03 ATEX 265 Ext.2, with up to 6 switch points, 6 m length, 20 bar working pressure and minimum IP65 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT S - ATEX E

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 6 m length, 50 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (stainless steel) MULTIPOINT S - ATEX I

Level switch for hazardous-area tank control in AISI 316, certified CESI 03 ATEX 265 Ext.2, with up to 6 switch points, 6 m length, 50 bar working pressure and minimum IP65 protection.

Level switch for ATEX hazardous-area tank control (PVC, PP, PVDF) MULTIPOINT V-F ATEX E

Level switch for hazardous-area tank control in PVC, PP or PVDF, certified CESI 03 ATEX 272 Ext.2, with up to 6 switch points, 5 m length, 6 bar working pressure and IP67 protection.

Level switch for ATEX hazardous-area tank control (PVC, PP, PVDF) MULTIPOINT V-F ATEX I

Level switch for hazardous-area tank control in PVC, PP or PVDF, certified CESI 03 ATEX 265 Ext.2, with up to 6 switch points, 5 m length, 6 bar working pressure and minimum IP65 protection.

Level switch for multi-point liquid monitoring MULTIPOINT S

Level switch for liquid level control with AISI 316 construction, up to 6 switch points, rod lengths up to 6 m, working pressure up to 50 bars and minimum IP65 protection.

Level switch for multi-point liquid monitoring MULTIPOINT V-F

Level switch for liquid level control in PVC, PP or PVDF, with up to 6 switch points, rod lengths up to 5 m, 6 bars working pressure and minimum IP65 protection.

Caged float level switch for side-mounted tank monitoring CAGE S1/M2.CAL-D

Caged float level switch for side-mounted tank monitoring, with 1 or 2 SPDT contacts, AISI 316 float and stem, 55 mm center distance, 10 mm pipe unions, IP65 housing and 105 °C max temperature.

Level switch for small tank monitoring with 2 contacts SIMPLE M2

Level switch for small tank monitoring with 2 electrical contacts, magnetic float operation, SPST N.C. / N.O. contact, 200 to 500 mm rod lengths, DIN 43650 plug and IP65 protection.

Level switch for small tanks with stainless steel construction SIMPLE M2.S

Level switch for small tank monitoring with 2 electrical contacts, AISI 316 stainless steel construction, 150 to 500 mm rod lengths, threaded or flanged mounting, DIN 43650 plug and IP65 protection.

Mechanical level switch for bypass liquid monitoring SIMPLE NG1

Mechanical level switch for bypass liquid monitoring with 1 or 2 fixed SPST reed contacts, transparent housing, AISI-316 float and rod, 1/2" NPT female thread, 12 Bar max pressure, 75 °C max temperature and IP65 protection.

You have seen 16/18 products
