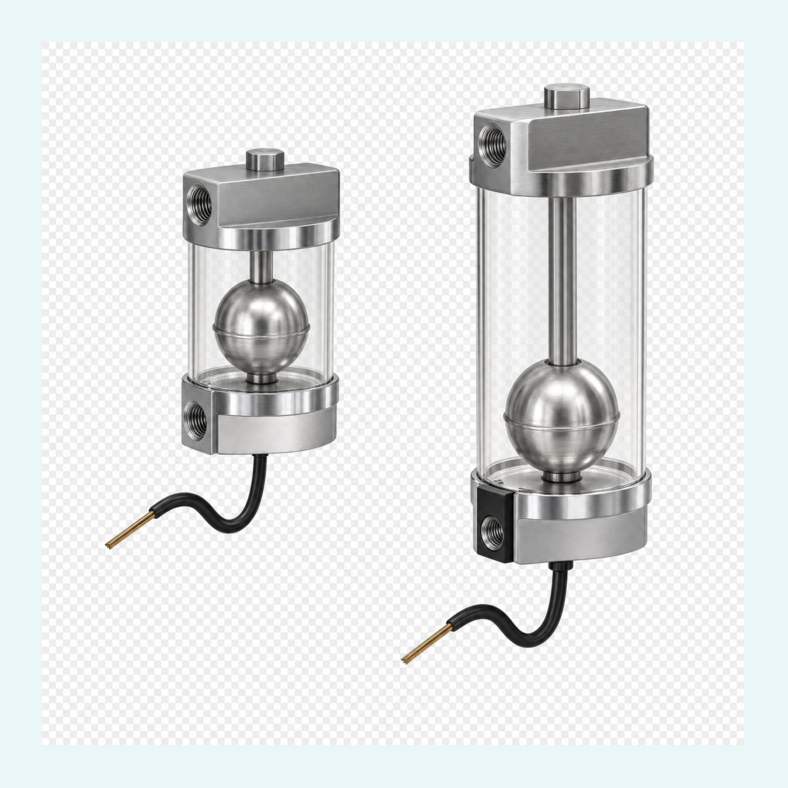

Bypass-mounted level monitoring gives operators a clear, fixed switching point without placing the switching mechanism directly in the tank. In the transparent housing, a magnet-equipped float follows the actual liquid level and actuates a reed switch at a defined position.
The SIMPLE NG1 family is available with one or two independent switch points, making it suitable for simple alarm or control tasks in liquid applications. The stainless steel float and rod support robust operation, while the 1/2" NPT female process connection keeps integration straightforward.
Designed for practical industrial use, the switch is rated for a maximum working pressure of 12 Bar and a maximum working temperature of 75 °C. The unit operates at -30 /+55 °C and 90% RH, and the IP65 degree of protection supports dependable use in typical plant environments
The float contains a magnet and follows the actual liquid level inside the transparent housing, triggering a reed switch at a fixed position.
NG1..1 provides one switch point, while NG1..2 provides two independent switch points.
The contact type is SPST reed switch, rated for 250V AC/DC and 1,3A AC/DC.
The process connection is DN 015 with a 1/2" NPT female thread.
The body material data lists anodized aluminium and glass/acrylic, with AISI-316 used for the float and rod.
The float version S52 is specified for liquids with S.G. > 0,75 g/cm3.
The switch is specified for 12 Bar maximum working pressure and 75 °C maximum working temperature.
