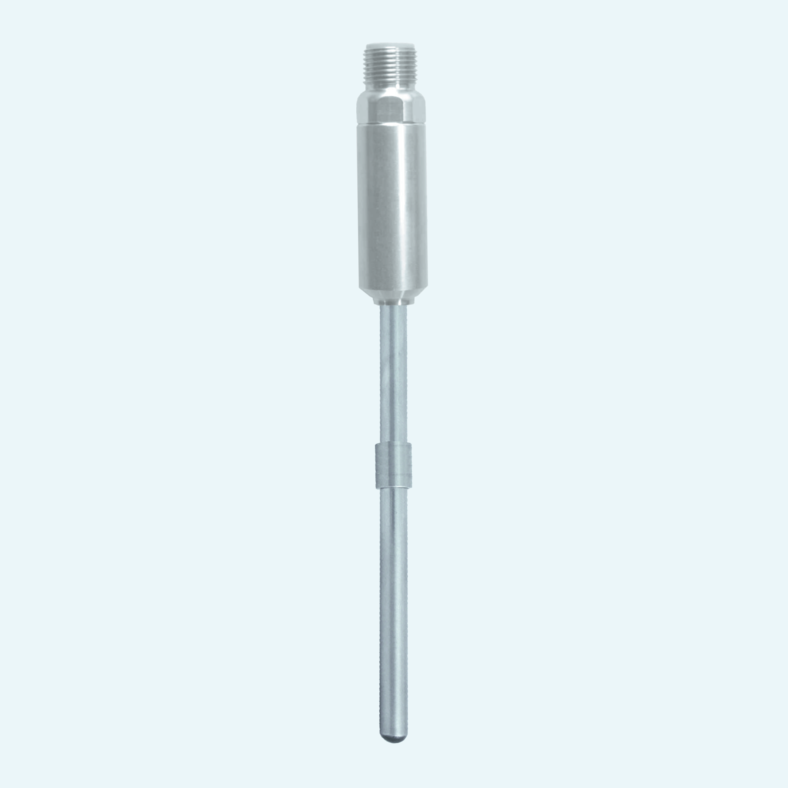

Stick-in resistance temperature probe for Ex areas, M12 connection

GTF111-EX

Resistance temperature probe for Ex areas with Pt100 or Pt1000 4-wire elements, M12 connection, compact 100 mm x 6 mm standard probe tube and measuring ranges up to -200 °C ... +600 °C.
Product Inquiry

Introduction

Hazardous industrial areas often leave little room for installation, while temperature measurement still has to match the Ex zone and process limits. This compact resistance temperature probe is designed as an insertion sensor for explosive atmospheres and uses an M12 connection for detachable cable integration.

Pt100 and Pt1000 versions use sheathed resistance thermometer elements in 4-wire design. Depending on configuration, Pt100/Pt1000 versions cover -50 ... +100 °C without neck tube. With neck tube, Pt100 versions cover -200 ... +600 °C and Pt1000 versions cover -70 ... +600 °C.

The standard GTF 111-Ex design uses a 100 mm probe length, 6 mm probe tube diameter and stainless steel probe tube. Configurable probe tube diameters from 3 to 8 mm and neck tube designs support different installation requirements, while Ex ia versions are listed for defined gas and dust zones.

Ex-zone fit
Ex-zone fit
Versions are listed for Zone 0, 1, 2, 20, 21 and 22, depending on type.
M12 connection
M12 connection
The probe uses an M12 connection for detachable cable integration.
Pt sensor choice
Pt sensor choice
Pt100 and Pt1000 4-wire elements support resistance-based temperature measurement.
Wide process range
Wide process range
Pt100 with neck tube covers -200 °C ... +600 °C.
Compact installation
Compact installation
Standard probe design uses 100 mm length and 6 mm tube diameter.

Features

Resistance elements

The probe is available with sheathed Pt100 or Pt1000 resistance thermometer elements in class B.

4-wire design

Pt100 and Pt1000 versions use a 4-wire electrical connection for the measuring circuit.

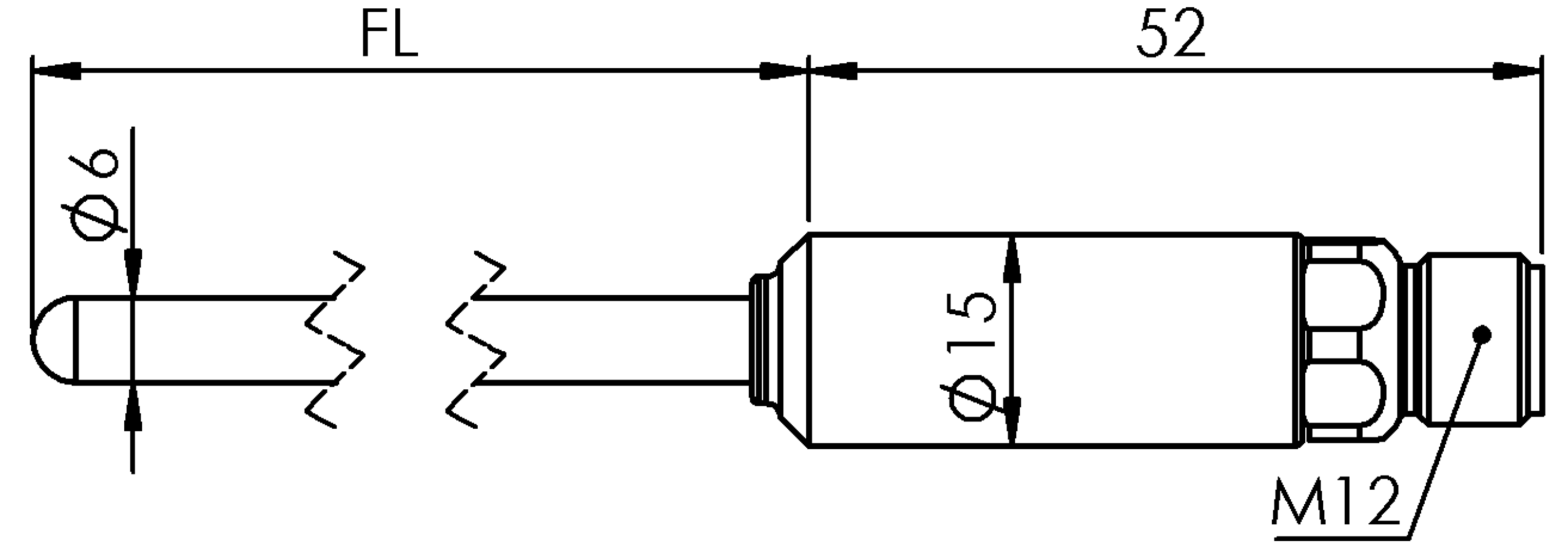

Standard construction

The standard GTF 111-Ex version has a 100 mm probe length, 6 mm probe tube diameter and wall thickness of at least 1.0 mm.

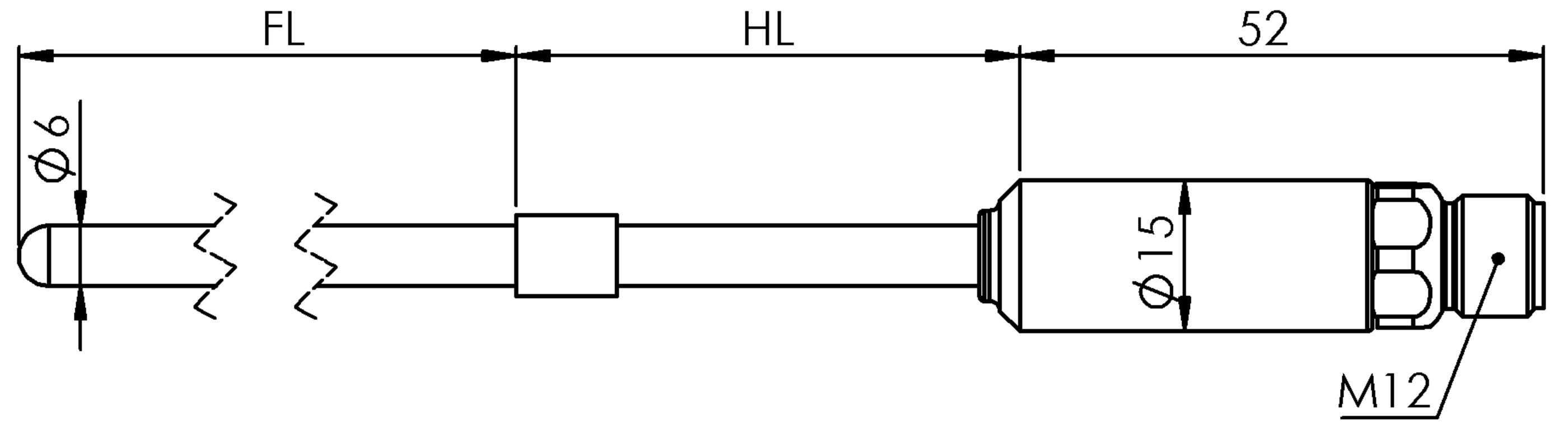

Neck tube version

Versions with neck tube are listed with a standard neck tube length of 50 mm.

Probe materials

The probe tube is made from stainless steel, with listed material options including 1.4404, 1.4435 and 1.4571.

Configurable dimensions

Possible probe tube diameters are 3, 4, 5, 6 and 8 mm, depending on the selected configuration.

Thread options

Possible external thread types include G, R, NPT and M with several listed thread sizes.
