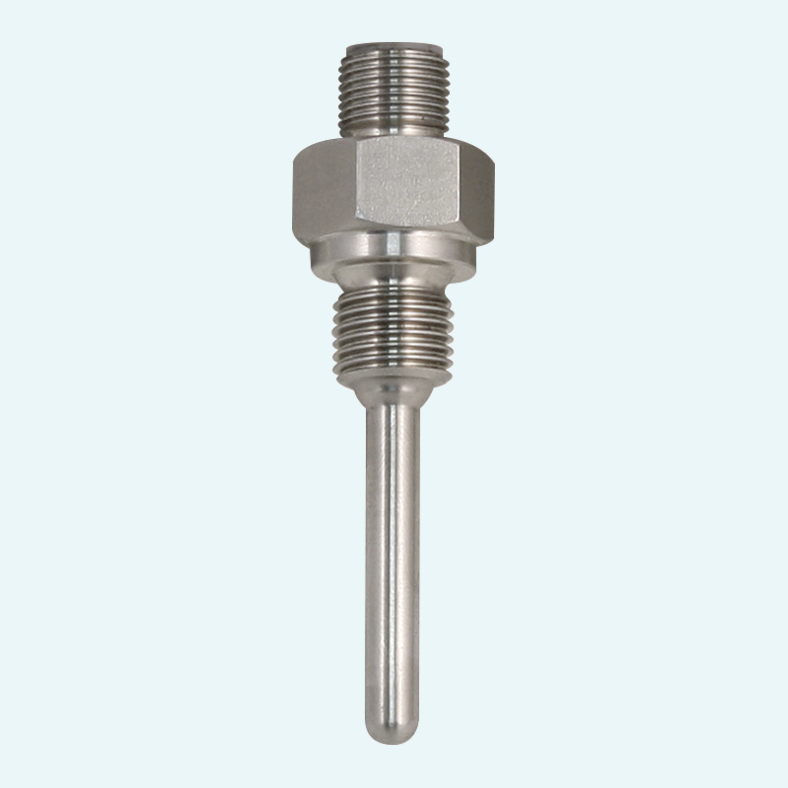

GTF112P is a screw-in resistance temperature sensor in a 3mm (other diameters available) stainless steel tube with 4-pole M12 plug.
It is available as Pt100 or Pt1000 (1/10B, AA, A or B class), thinfilm or wire-wound in custom length.
Three temperature ranges (250/400/600°C) are avaiale to allow best adaption to process requirements beween maximum temperature and repsonse times.
Available RTD elements acc. to IEC751/EN60751:
Note: Wire wound sensor and 1/10 class B elements are available vor Pt100, only.
Other:
Available in 6mm dianmeter (or 3mm reduced tip) in lenght up to 1000mm in 5mm minmum steppings.

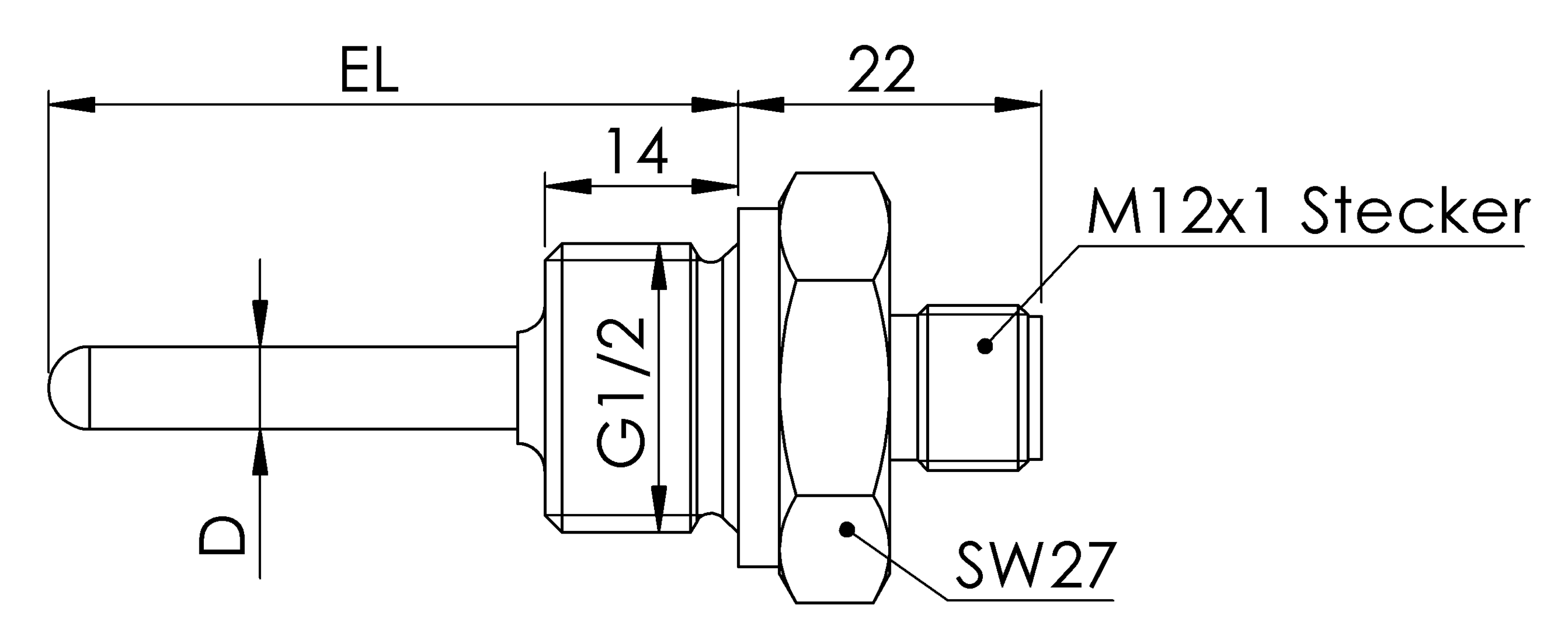

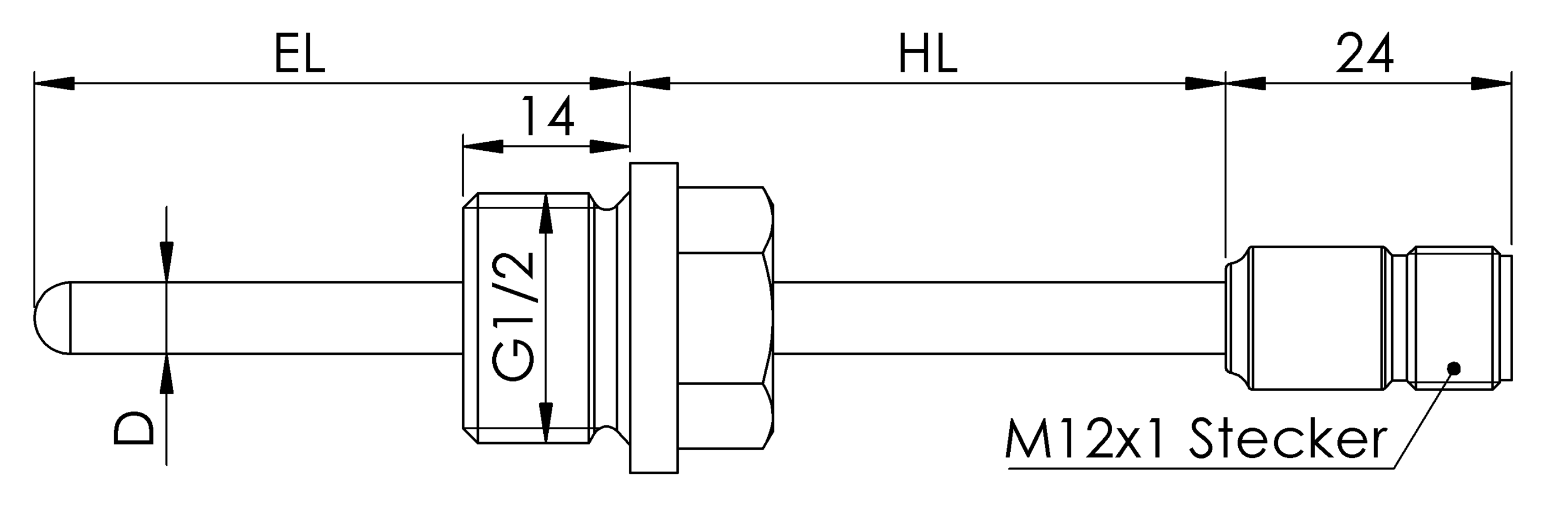

G1/2" (standard) or G1/4"
| Pressure rating |
50 bar max.
|
|---|
| Temperature sensor |
Pt100, Pt1000, Class 1/10B, AA, A, B
For Pt100: Pt100 For Pt1000: Pt1000 For B class DIN EN 60751 (-50…+500°C, thin-film): B For A class DIN EN 60751 (-30…+300°C, thin film): A For A class DIN EN 60751 (-100…+450°C, wire-wound): A For AA class DIN EN 60751 (0…+150°C, thin film): AA For 1/10B class (-50…+100°C, wire-wound): 1/10B |
|---|---|
| Measuring principle |
RTD
|
| Electrical connection type |
4-pole M12 (-20...+85°C, max), IP67/IP69K)
|
|---|
| Material |
Stainless steel 1.4404
|
|---|---|
| Probe length |
For 50 mm: 50 mm
For 100 mm: 100 mm For 50 mm: 50 mm For 100 mm: 100 mm For 150 mm: 150 mm For 250 mm: 250 mm For 500 mm: 500 mm |
| Probe Diameter |
For 6 mm: 6 mm
|
| Cable |
For 4-wire: 4-wire
|
