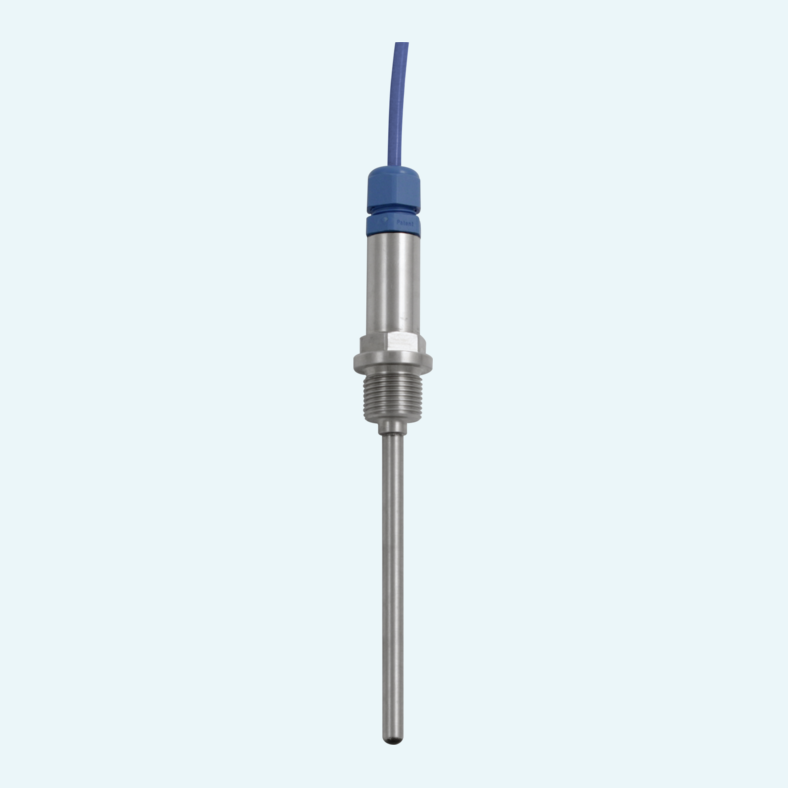

Resistance temperature probe for Ex areas, threaded process fit

GTF102-EX

Resistance temperature probe for Ex areas with Pt100 or Pt1000 4-wire elements, fixed cable, G 1/2"A standard thread, 100 mm x 6 mm probe tube and measuring ranges up to -200 ... +600 °C.
Product Inquiry

Introduction

Temperature measurement in explosive atmospheres needs a probe that matches both the Ex zone and the process connection. This resistance temperature probe is designed as a compact threaded insertion sensor for hazardous industrial areas and hard-to-access measuring points.

Pt100 and Pt1000 versions use sheathed resistance thermometer elements in 4-wire design. Depending on configuration, Pt100 versions cover -50 ... +100 °C without neck tube or -200 ... +600 °C with neck tube. Pt1000 versions with neck tube cover -70 ... +600 °C.

The standard GTF 102-Ex design includes a G 1/2"A thread, 100 mm probe length and 6 mm probe tube diameter. Silicone, PVC and Teflon cable options are listed for Pt100 and Pt1000 versions, while configurable tube diameters, neck tube designs and thread types support different installation requirements.

Ex-zone fit
Ex-zone fit
Versions are listed for Zone 0, 1, 2, 20, 21 and 22, depending on type.
Pt sensor choice
Pt sensor choice
Pt100 and Pt1000 4-wire elements support resistance-based temperature measurement.
Wide process range
Wide process range
Pt100 with neck tube covers -200 ... +600 °C
Threaded mounting
Threaded mounting
Standard GTF 102-Ex design includes G 1/2"A thread and 100 mm probe length.
Cable flexibility
Cable flexibility
Pt100 and Pt1000 versions can use silicone, PVC or Teflon cable.

Features

Resistance elements

The probe is available with sheathed Pt100 or Pt1000 resistance thermometer elements in class B.

4-wire connection

Pt100 and Pt1000 versions use a 4-wire electrical connection for the measuring circuit.

Standard construction

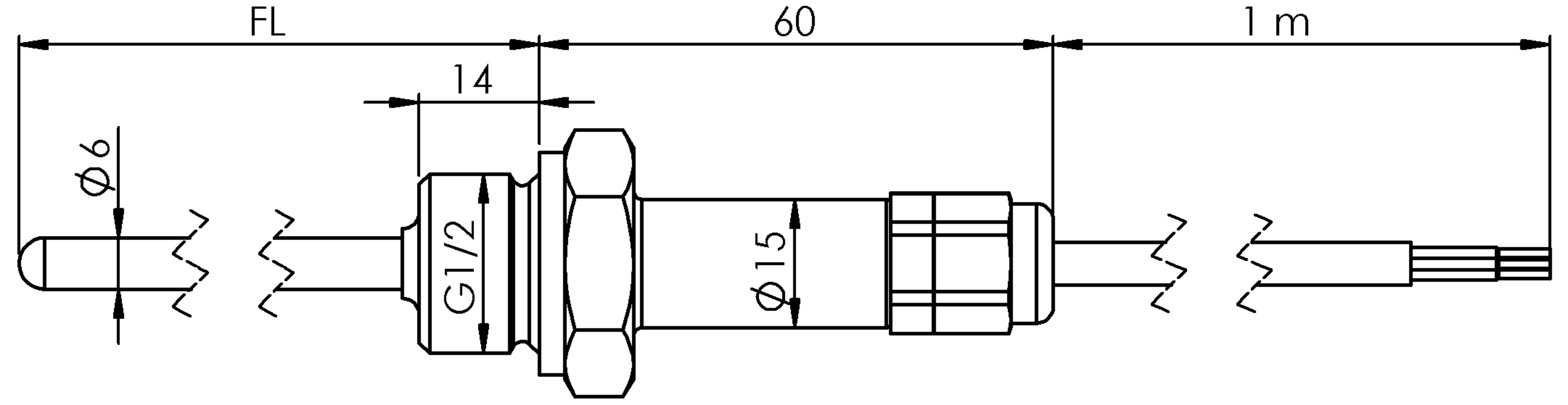

The standard GTF 102-Ex version has a G 1/2"A thread, 100 mm probe length and 6 mm probe tube diameter.

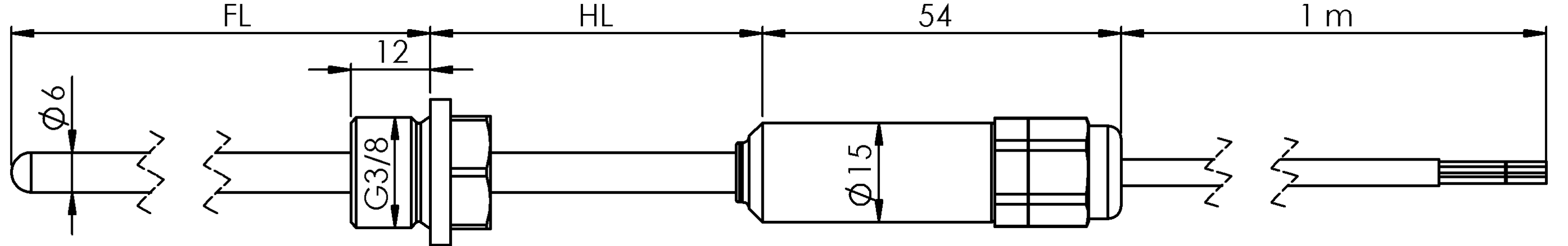

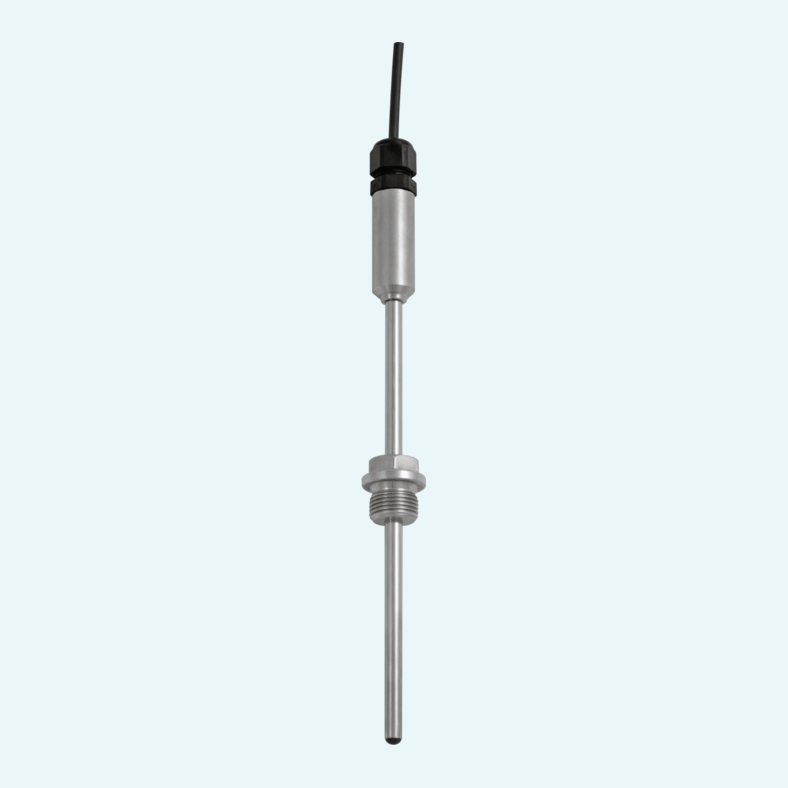

Neck tube version

Versions with neck tube are listed with a 50 mm neck length and 8 mm neck tube diameter.

Cable materials

 Pt100 and Pt1000 versions can use silicone cable, PVC cable or Teflon cable with 4 x 0.14 mm² conductors.

Configurable dimensions

Possible probe tube diameters are 3, 4, 5, 6 and 8 mm, depending on the selected configuration.

Thread options

Possible external thread types include G, R, NPT and M with several listed thread sizes.

Cable gland

The cable gland is specified with IP68 - 10 bar.

Product inquiry

All fields marked with * are required. Product specific information are filled in automatically.

Drag files here or

PDF, PNG or JPG file, in total max. 20 MB

Please check the automatically filled product information before sending your inquiry. Attaching relevant documents helps us process your request faster.
