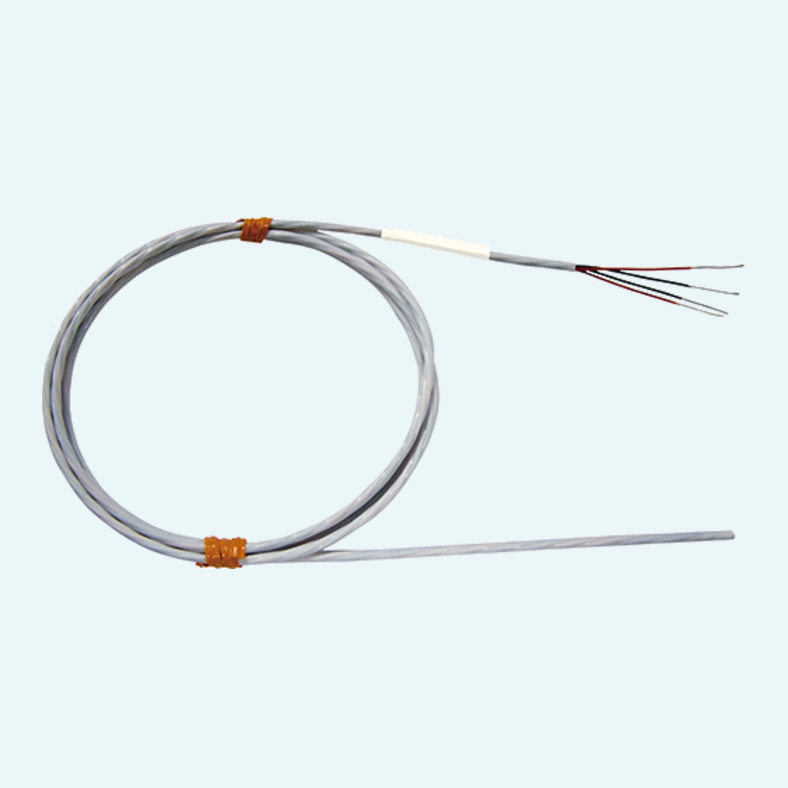

This RTD probe uses a fully PFA-encapsulated measuring tip that helps protect against moisture and corrosion, making it suitable for demanding environments with many chemicals and oils.
The small 3x50mm tube supports a fast response of approx. 8 s in water at 0.4 m/s. DIN class A accuracy and a -60 ... +250 °C measuring range provide dependable temperature readings for process, laboratory and cleaning-related tasks.
The welded measuring tip provides IP68 and supports simple cleaning and sterilization. Standard cable lengths are 1 m, 2 m and 3 m. Pt1000 versions are also available, and selected Pt100 variants can be supplied with a V4A protection tube Ø 4 mm, EL = 50 mm.
The probe uses a fully PFA-encapsulated Pt100 measuring element.
The electrical connection uses 4 x 0.14 mm² nickel-plated copper strands.
The sensor has a 3 mm nominal diameter for use in narrow installation spaces.
Standard versions are listed with 1 m, 2 m and 3 m cable length.
The source states that the probe is also available with Pt1000.

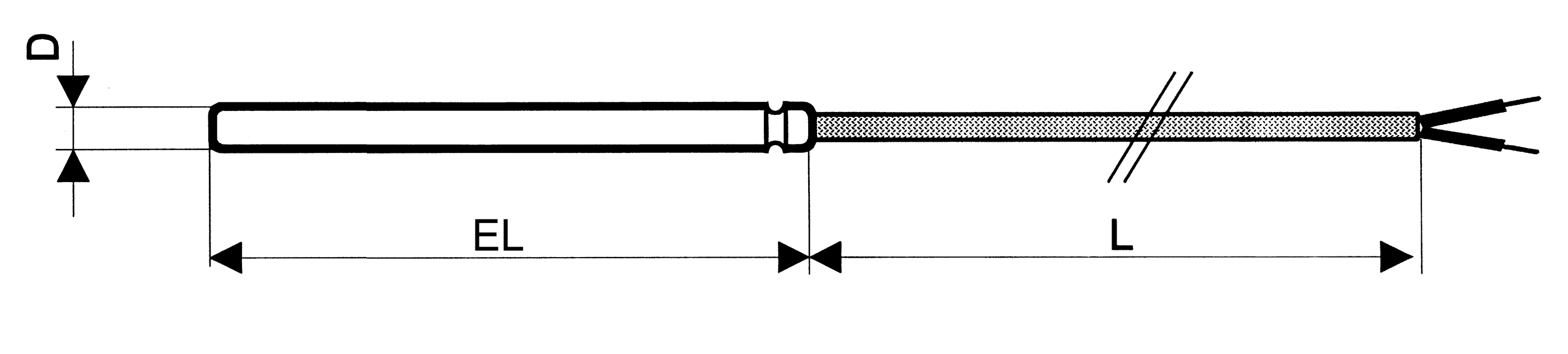

Selected Pt100 variants are available with a V4A protection tube Ø 4 mm and EL = 50 mm.
