Pt1000

Pt1000 temperature probes are designed for reliable use in 2-wire measurement systems, particularly in economic applications with simplified wiring requirements. Their higher nominal resistance compared to Pt100 minimizes the influence of lead and contact effects, ensuring accurate temperature readings across a wide range of industrial and laboratory environments. Suitable for measurements in gases, liquids, and soft materials, Pt1000 sensors provide a robust and versatile solution for process monitoring and general temperature measurement tasks.
View all products

23 Products

Pt1000 Sensor Element PT1000

Pt1000 sensor element as a component.

HayTemp spare parts for fiberglass insertion probes HAYTEMP

HayTemp spare parts for fiber glass based insertion probes and combined HayTemp sets, including a 4 m fiberglass probe rod without tip and a screw-off double-edged cutting tip with Pt1000 Class B sensor.

Insertion temperature probe for soft media, -70 ... +250 °C GES 175

Insertion temperature probe for soft media measures -70 ... +250 °C with a Pt1000 element, V4A probe tube and selectable BNC, loose-end, 3.5 mm jack or Mini-DIN connection.

Compact core temperature probe for food and catering applications GES 20

Compact needle shaped core temperature probe for food applications, measuring -40 … +550°C, -70 … +250°C or -200 … +250°C with Type K, Pt100 or Pt1000 sensors, V4A stainless steel tip, PTFE cable and IP65 protection.

Robust core temperature probe for food and catering applications GES 21-X

Large PTFE handle core temperature probe for food applications, measuring -50 … +250°C or -200 … +250°C with Type K, Pt100 or Pt1000 sensors, large Teflon handle, V4A stainless steel tip and IP65 protection.

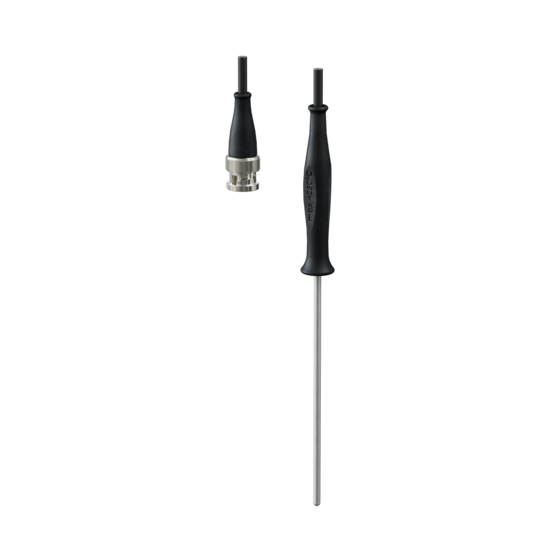

Pt1000 handle probe for gases, liquids and soft materials up to 250 °C GF 1T

Pt1000 handle probe for temperature measurement in gases, liquids and soft materials, with -70 ... +250 °C probe-tip range, Ø 1.5 mm or Ø 3 mm sheath options, fast T90 response and IP67 protection with BNC when plugged in.

Temperature penetration probe without cable for liquids and soft materials GF 2T

Temperature penetration probe for liquids, gases and soft materials, with -70 ... +250 °C range, 1.5 mm or 3 mm V4A shaft, Pt1000 2-wire sensor, BNC direct connection and IP67 protection when plugged in.

Pt1000 temperature probe for grill and oven measurements GF 3T

Pt1000 temperature probe for grill and oven measurements, with -70 ... +400 °C probe-tip range, Ø 3 mm insertion sheath, stainless steel tube and glass fibre insulated cable in stainless steel braid.

Screw-in temperature probes for deep-frozen products Pt100/ Pt1000 GGF 175

Pt100/Pt1000 screw-in temperature probes for deep-frozen products measure from -70 ... +250 °C, with V4A stainless steel, ergonomic T-handle and IP65/IP67 protection.

Air / gas temperature probe for clean media, Pt1000 GLF 175

Air / gas temperature probe for clean media, Pt1000, with massive Ø6mm protection tube.

Immersion probes for liquids and gases with fast T90 response GTF 175

Immersion probes for liquids and gases, measuring -70 ... +250 °C or -70 ... +200 °C with <2 s T90 in water at 0.4 m/s, DIN Class B accuracy options, V4A tubes from Ø1.6 mm to Ø6 mm, and selectable connections.

Portable air and pipe surface probe for Pt1000 temperature measurement GTF 2000 PORTABLE

Air and pipe surface probe for Pt1000 temperature measurement from -50 ... +200 °C or -20 ... +105 °C, with V4A probe tube, Ø5 mm diameter, 50 mm length and BNC, banana or Ø3.5 mm jack connection.

Stainless steel insertion probe, t-handle GTF 40

Extra robust stainless steel T-handle penetration probe. Especially for measuring in hay and straw bales or similar bulk goods like wood chips and grain. Type K and Pt 1000 versions in different lengths are available

Pt1000 immersion probe for gases and liquids AX 12X

Pt1000 immersion probe for temperature measurement in gases and liquids, with -50 … +250 °C or -200 … +600 °C ranges, Ø 3 mm stainless steel stem, IP67 protection and BNC, banana plug or loose-end connection.

Pt1000 insertion probe for gases, liquids and soft materials AX 12X-I

Pt1000 insertion probe for temperature measurement in gases, liquids and soft materials, with -50 … +250 °C or -200 … +600 °C ranges, Ø 3 mm stainless steel stem with cold formed tip, IP67 protection and BNC, banana plug or loose-end connection.

Specialized 2-wire precision Pt1000 insertion probes AX 12X-IX

Pt1000 insertion probes for field temperature measurement in asphalt, bulk goods and bales, with -50 ... +250 °C range, 2-wire Pt1000 sensor, stainless-steel stem and IP67 water protection, different Diameters.

You have seen 16/23 products
