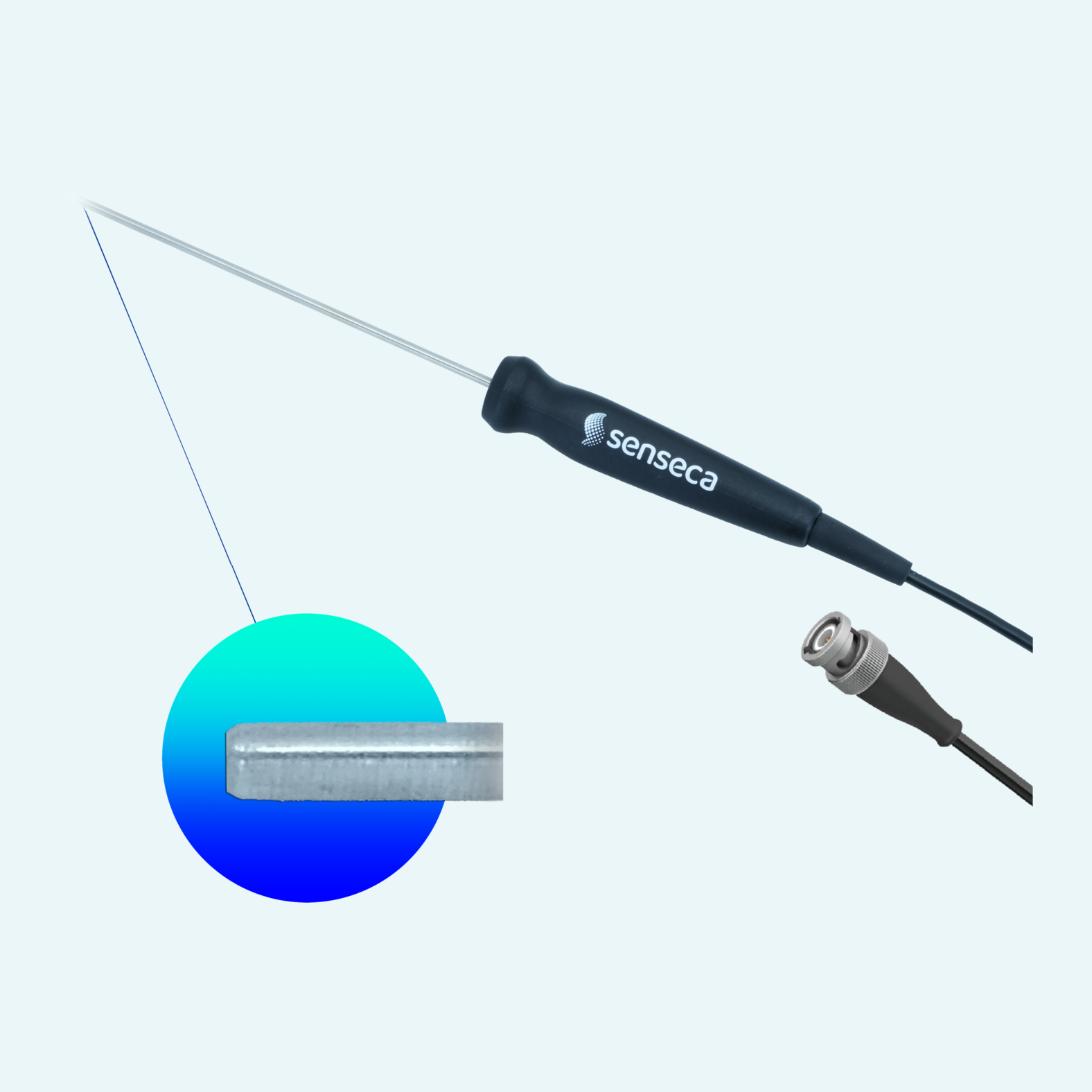

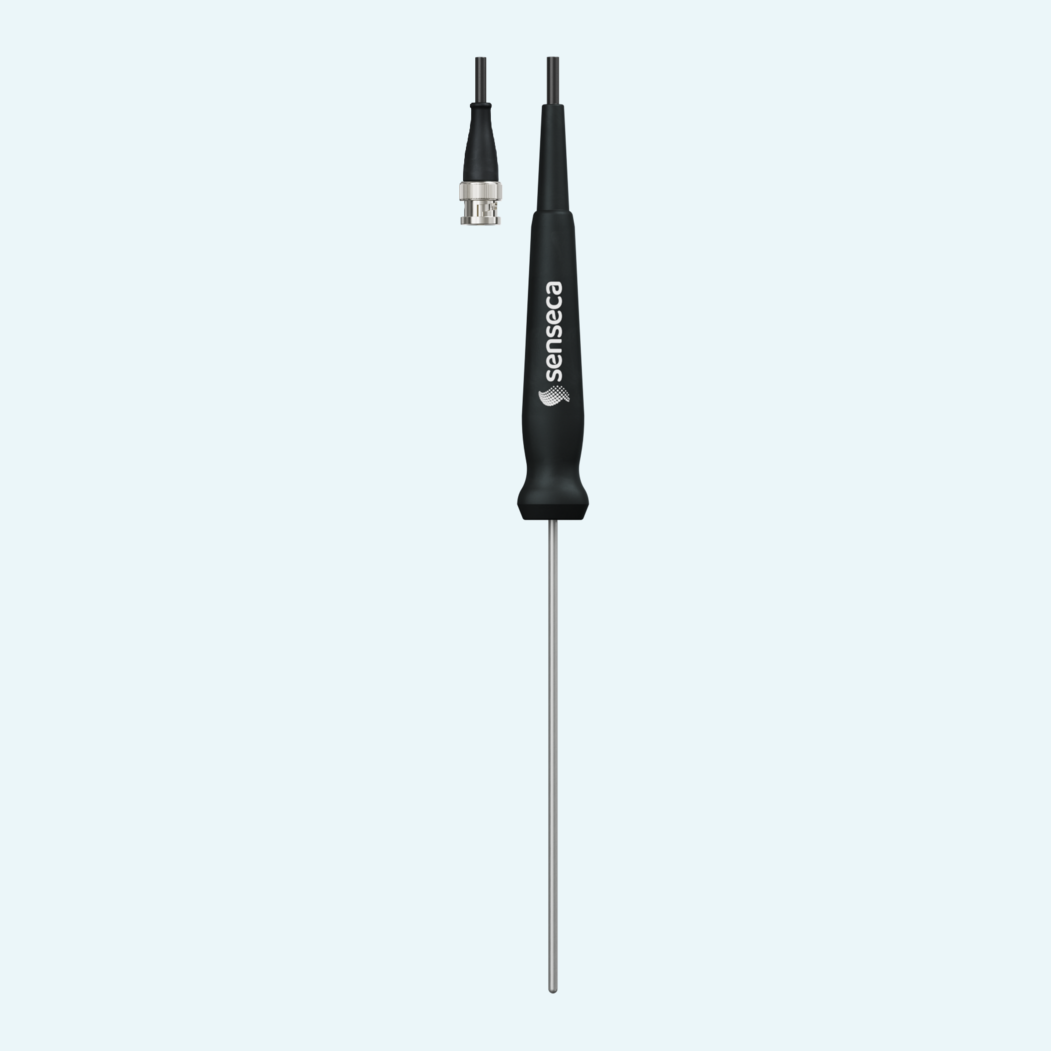

Reliable temperature checks in liquids and gases depend on a probe that reacts quickly and withstands daily professional use. This precision analog Pt1000 immersion probe combines a thin film 2-wire sensor with a corrosion and temperature resistant AISI 316 stainless steel stem, giving users a dependable solution for reference instruments such as the ECO 120.

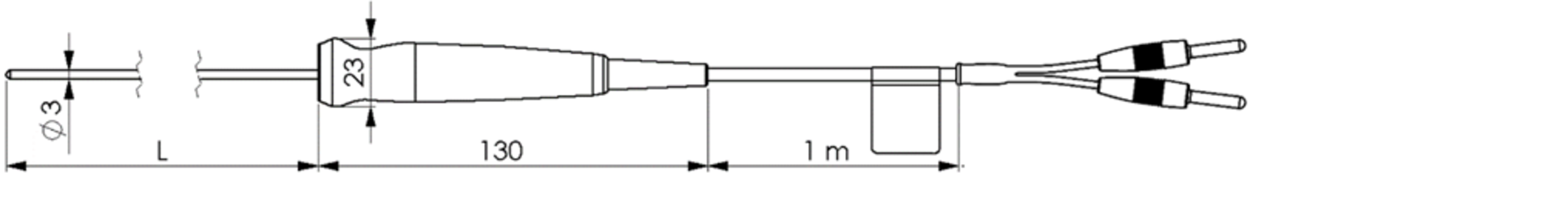

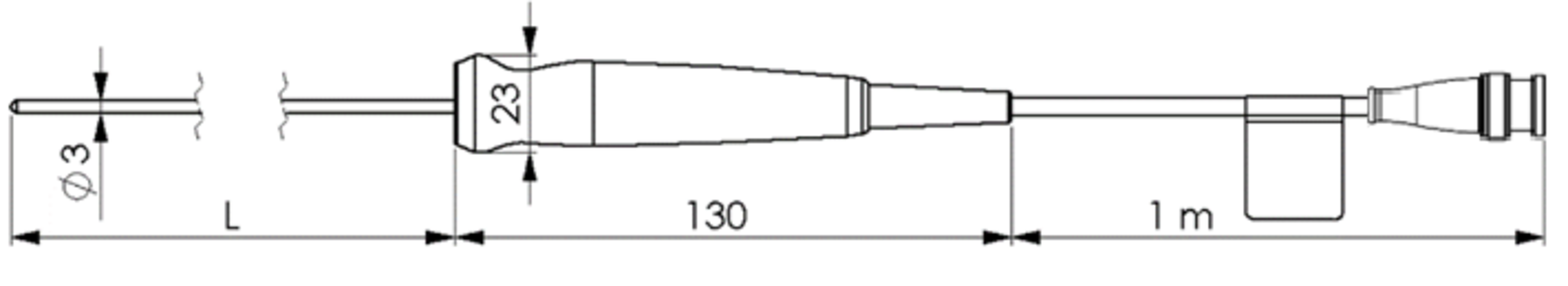

The family covers rigid and mineral-insulated bendable designs, with measuring ranges from -50 … +250 °C to -200 … +600 °C depending on construction. Fast response helps speed up routine measurements, while the Ø 3 mm stem supports precise immersion tasks.
Designed for demanding handling, the AX 121 uses an ergonomic polyamide handle rated up to 120 °C and is water-protected according to IP67. Connection options include BNC-connector, 2 x banana plugs or loose ends with wire end ferrules, with optional ISO 9001 or DAkkS-/ACCREDIA accredited calibration ISO/IEC 17025 when combined with a suitable display instrument.
The probe uses a 2-wire Pt1000 thin film sensor for analog temperature measurement with suitable reference instruments.
Versions are available in tolerance classes B and AA according to IEC 751 and EN 60751 applicability limits
Cable termination options include BNC-connector or loose ends with wire end ferrules.
The probe can be supplied with ISO 9001 or DAkkS-/ACCREDIA accredited calibration ISO/IEC 17025 when combined with a suitable display instrument.
