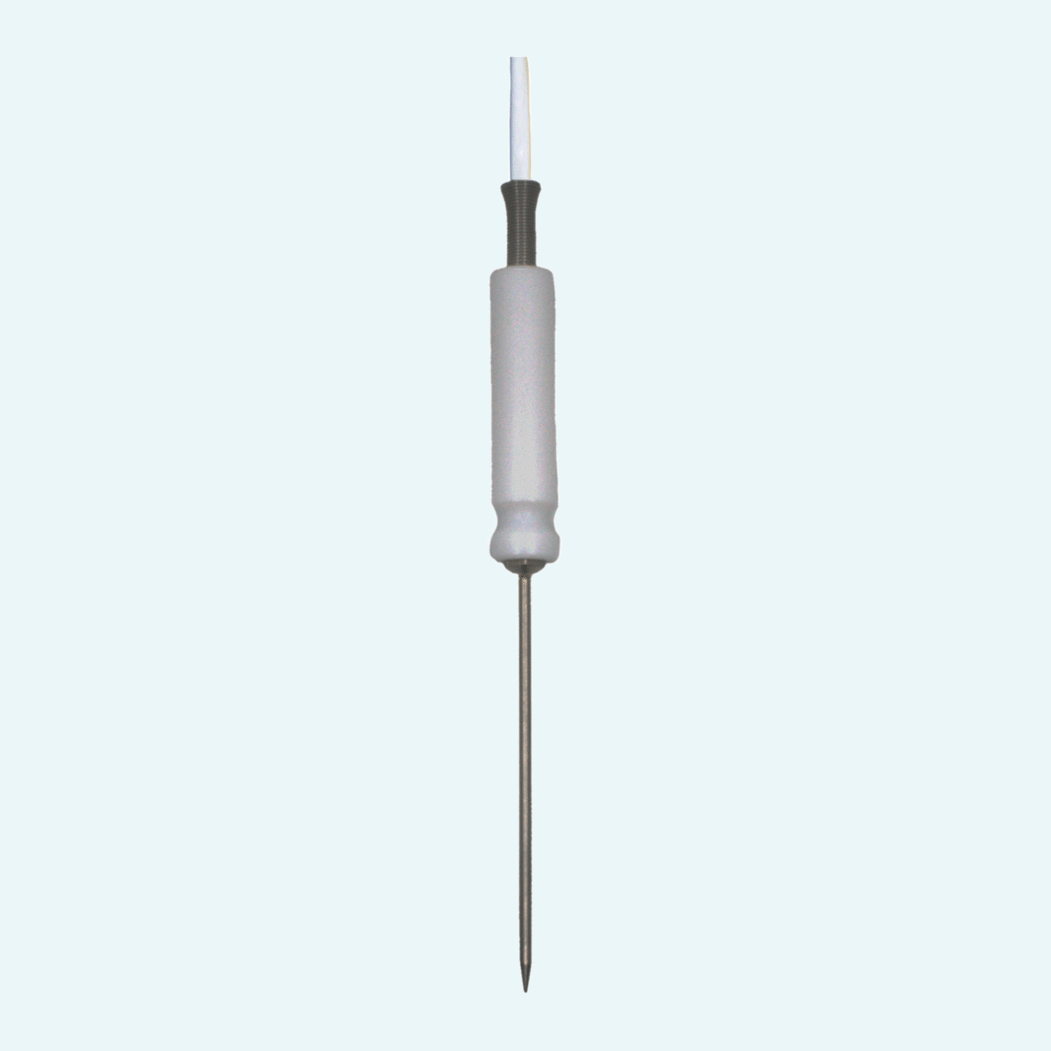

Robust core temperature probe for food and catering applications

GES 21

Large PTFE handle core temperature probe for food applications, measuring -50 … +250°C or -200 … +250°C with Type K, Pt100 or Pt1000 sensors, large Teflon handle, V4A stainless steel tip and IP65 protection.
Product Inquiry

Introduction

Daily core temperature checks in professional kitchens, bakeries and butcher shops need a probe that feels secure in the hand and stands up to repeated cleaning. This insertion probe supports HACCP-oriented monitoring in meat and fish products, baked goods, and cooling or cooking processes.

The cold formed V4A stainless steel tip is food-safe, corrosion-resistant and resistant to aggressive cleaning agents. With Ø 3 mm or Ø 4 mm probe tubes and lengths of 100 mm, 150 mm or 200 mm, the family offers a robust balance between response speed and mechanical strength.

The large PTFE handle gives stable handling during routine checks, while the PTFE cable and stainless steel kink protection support use in demanding food environments. Type K, Pt100 and Pt1000 sensor versions cover -50 … +250°C or -200 … +250°C, with IP65 water protection and optional ISO/IEC 17025 or ISO 9001 calibration with a suitable display device.

Secure handling
Large PTFE handle supports stable use during routine core temperature checks, for ergonomic insertion.
Food-ready design
V4A stainless steel is food-safe, corrosion-resistant and easy to clean.
Robust probe tip
Ø 3 mm or Ø 4 mm tube balances response speed with mechanical strength.
Flexible lengths
00 mm, 150 mm and 200 mm probe lengths suit different food inspection tasks.
Sensor & accuracy choice
Type K thermocouple class 1, Pt100 / Pt1000 2-, 3- or 4-wire versions match different tasks.

Features

Cable and handle

The handle and cable use Teflon (PTFE), rated up to 250°C, with stainless steel kink protection at the handle.

Connection options

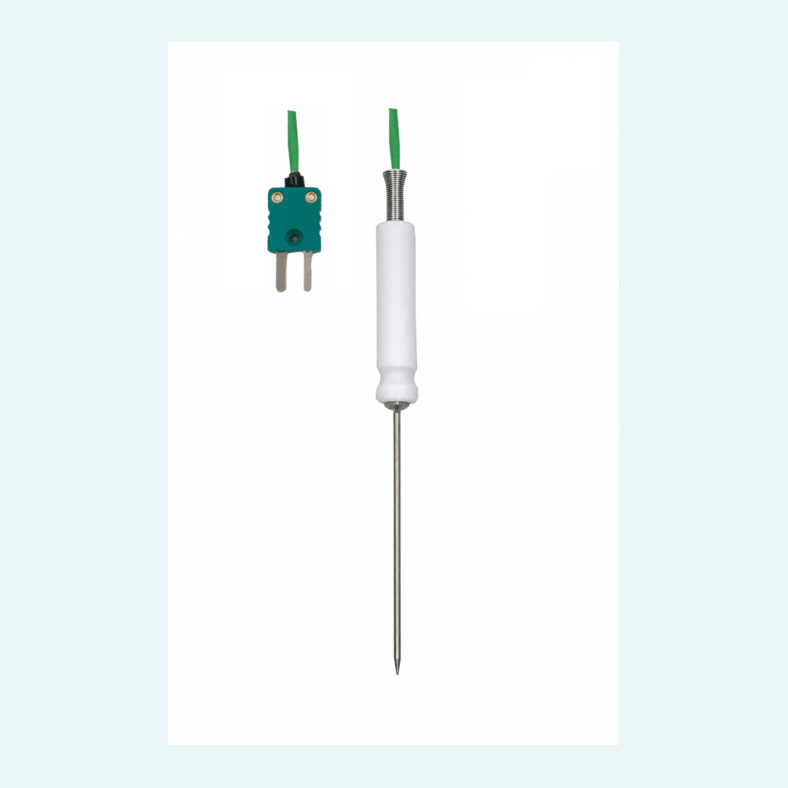

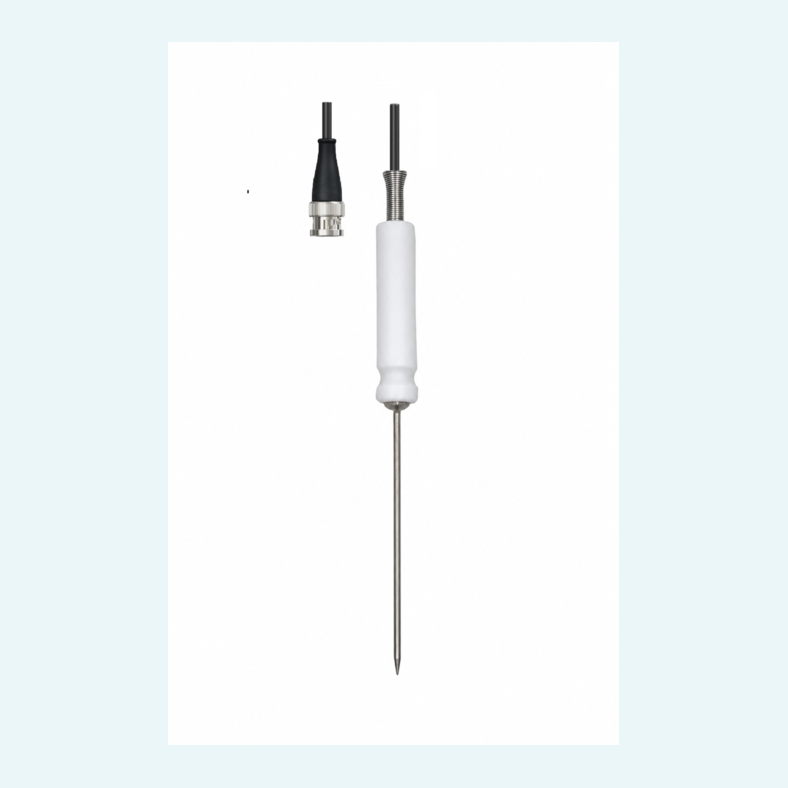

Versions are available with miniature flat-pin plug, BNC plug, M12 connector or loose ends with wire end ferrules.

Response behavior

The probe reaches T90 in less than 2 s in water at 0.4 m/s and approximately 40 s in air at 2 m/s.

Details

GES 21-K large handle insertion probe type K
