Screw-in temperature probes for deep-frozen products Pt100/ Pt1000

GGF 175

Pt100/Pt1000 screw-in temperature probes for deep-frozen products measure from -70 ... +250 °C, with V4A stainless steel, ergonomic T-handle and IP65/IP67 protection.
View all variants Product Inquiry

Introduction

Fast temperature checks in deep-frozen goods need a probe that enters the product securely without slowing the operator down. These screw-in probes use an integrated screw thread, allowing direct insertion into frozen food and other solid media without predrilling. The ergonomic T-handle supports controlled handling during routine checks.

The GGF 175 uses Pt100 or Pt1000 for -70 ... +250 °C. Accuracy is specified as Class B/AA.

V4A stainless steel gives the probe a robust, food-safe and corrosion-resistant construction for demanding use. IP65/IP67 protection supports practical work around moisture, and optional DAkkS/ACCREDIA-accredited ISO/IEC 17025 or ISO 9001 calibration is available when combined with a suitable display device like ECO 120.

Secure frozen checks
Screw thread enters frozen goods and solid media directly, with no predrilling required.
Wide temperature use
Pt1000 sensor covers -70 ... +250 °C.
Food-safe build
V4A stainless steel makes the probe robust, food safe and corrosion resistant.
Protected in use
Water-protected to IP65/IP67, including the BNC connector when connected to instrument.

Features

Probe geometry

The probe has a Ø 6 mm tube with 95 mm length to the handle. The handle measures Ø 8 mm and 115 mm in length.

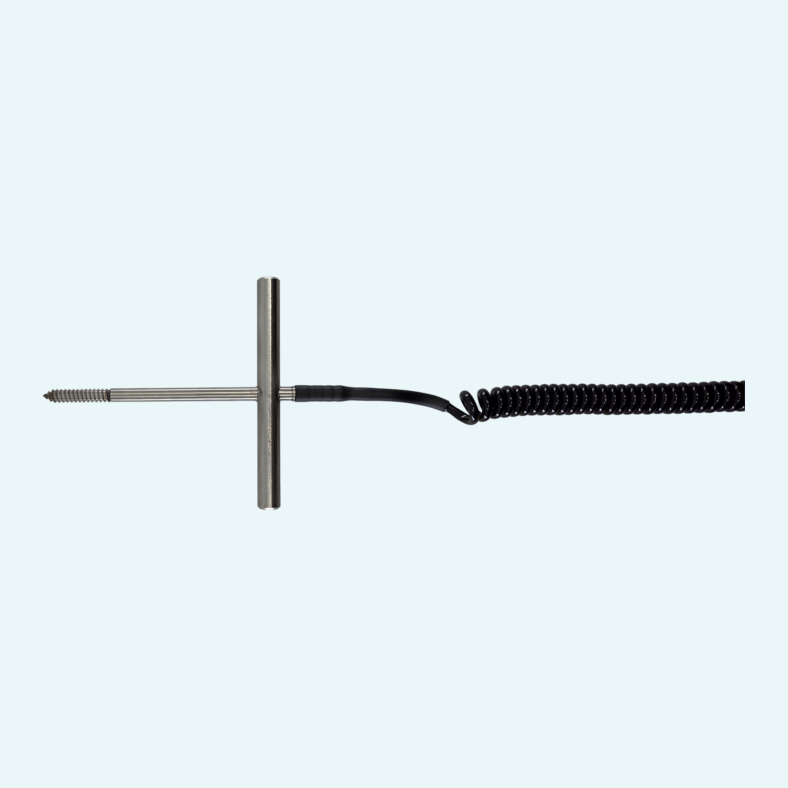

T-handle

The ergonomic T-handle provides a defined grip for screwing the probe into deep-frozen products and solid media.

Details

Probe with BNC connector
