Pt1000 insertion probe for gases, liquids and soft materials

AX 121-I

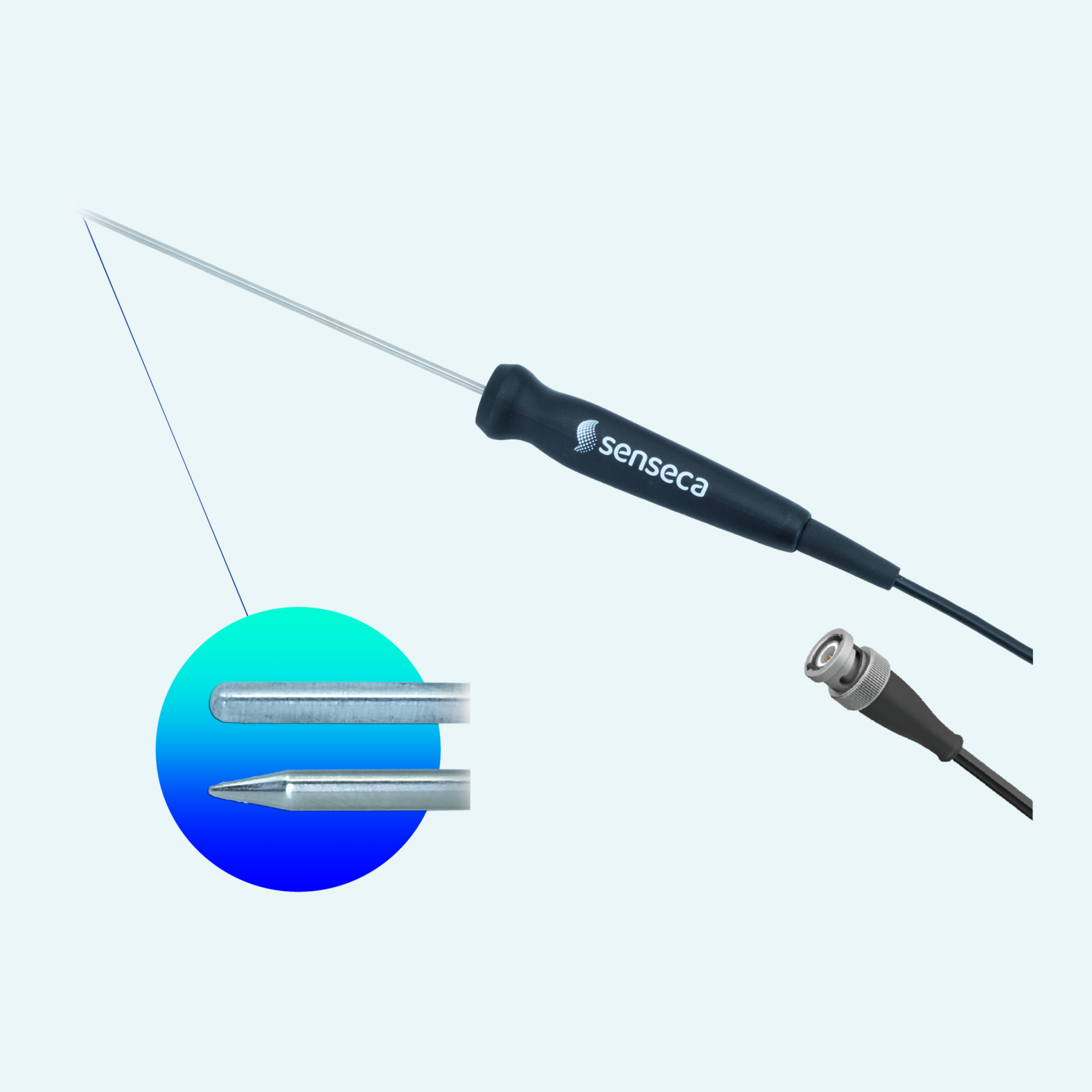

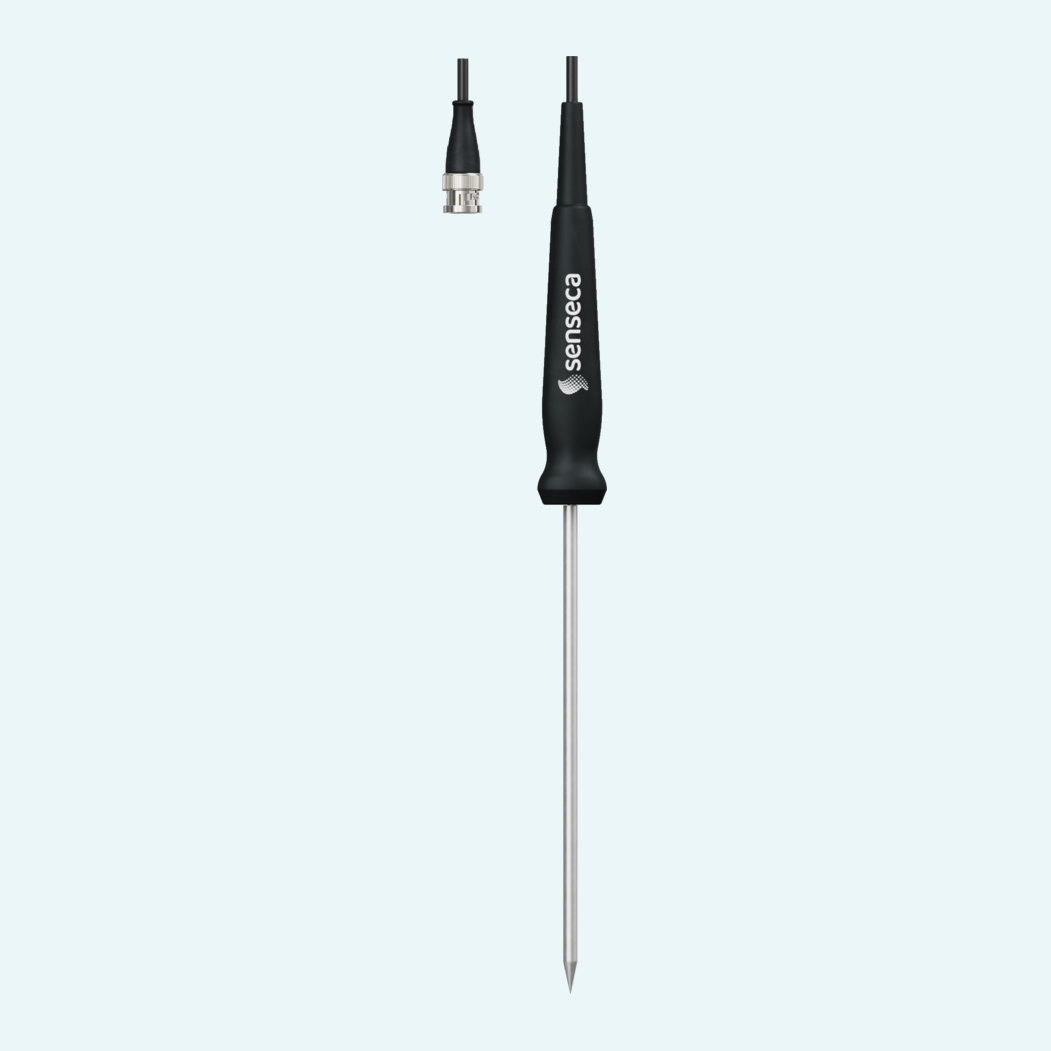

Pt1000 insertion probe for temperature measurement in gases, liquids and soft materials, with -50 … +250 °C or -200 … +600 °C ranges, Ø 3 mm stainless steel stem with cold formed tip, IP67 protection and BNC, banana plug or loose-end connection.
Product Inquiry

Introduction

Reliable temperature measurement starts at the contact point. This probe family gives technicians a precise, easy-to-handle Pt100 solution for immersion and insertion tasks in gases, liquids and soft materials, including applications with continuous food contact, giving users a dependable solution for reference instruments such as the ECO 120.

The AX 121-I uses a thin film Pt100 sensor for fast, economical measurement. Depending on the configuration, measuring ranges cover -50...+250 °C, -50...+400 °C, with tolerance classes from B to AA and 1/10 B.

Designed for demanding handling, the AX 121 uses an ergonomic polyamide handle rated up to 120 °C and is water-protected according to IP67. Connection options include BNC-connector, 2 x banana plugs or loose ends with wire end ferrules, with optional ISO 9001 or DAkkS-/ACCREDIA accredited calibration ISO/IEC 17025 when combined with a suitable display instrument.

Fast checks
T90 response time is under 2 s in water
Ergonomic large handle
Comfortable Insertion into media. High operating temperature up to 120 °C of handle and gland.
Food compatible
Corrosion and temperature resistant stainless steel stem, suitable for continuous food contact.
Water protected
IP67 protection supports professional use in demanding measurement tasks - while easy to clean
Pt1000 BNC version
Ideal quick connect probe for instruments like ECO 120, special design: water proof when connected.

Features

Pt1000 thin film sensor

The probe uses a 2-wire Pt1000 thin film sensor for analog temperature measurement with suitable reference instruments.

Accuracy classes

Versions are available in tolerance classes B and AA according to IEC 751 and EN 60751 applicability limits

Connection versions

Cable termination options include BNC-connector or loose ends with wire end ferrules.

Calibration options

The probe can be supplied with ISO 9001 or DAkkS-/ACCREDIA accredited calibration ISO/IEC 17025 when combined with a suitable display instrument.
