Loop-powered isolating converter

TV500P

Loop-powered isolating converter for standard analog signals, adapting 0..20 mA, 4..20 mA, ±20 mA, 0..10 V, 2..10 V or ±10 V inputs to a passive 4..20 mA output.
Product Inquiry

Introduction

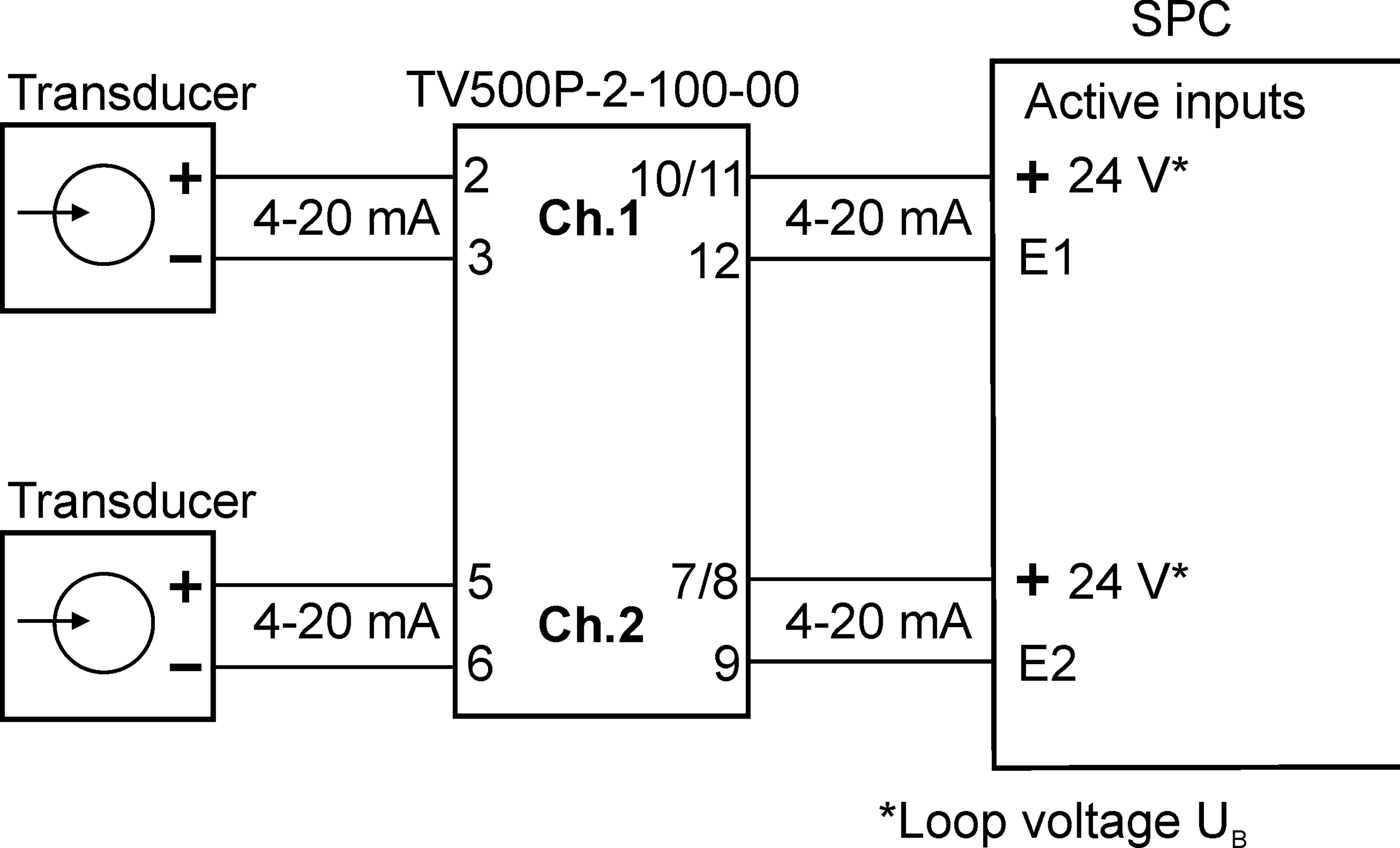

Compact signal isolation becomes easier when no separate supply wiring is needed. TV500P isolates and adapts standard analog signals to active inputs of SPC and DC systems, powered directly through the 4..20 mA output loop.

The device handles current and voltage inputs including 0..20 mA, 4..20 mA, ±20 mA, 0..10 V, 2..10 V and ±10 V. A selectable increasing or decreasing output characteristic supports standard and inverted signal behavior, while the 20 mA end value can be adjusted by ±5 % from the front.

For space-conscious control cabinets, TV500P is available as a 1- or 2-channel device in a 22.5 mm DIN rail case. Full 2-port isolation, a 14..30 V DC loop voltage range and output switching to 22 mA on defined input underrange or overrange help create a clear, practical interface to the control system.

No extra supply
No extra supply
Loop powered via the 4..20 mA output with 14..30 V DC.
Signal adaptation
Signal adaptation
Converts current or voltage inputs to a passive 4..20 mA output.
Two-channel option
Two-channel option
2-channel version reduces space and cost for multiple converters.
Clear fault output
Clear fault output
Output switches to 22 mA on input deviation below -34 % or above +34 %.
Clear fault output
Clear fault output
Output switches to 22 mA on input deviation below -34 % or above +34 %.

Features

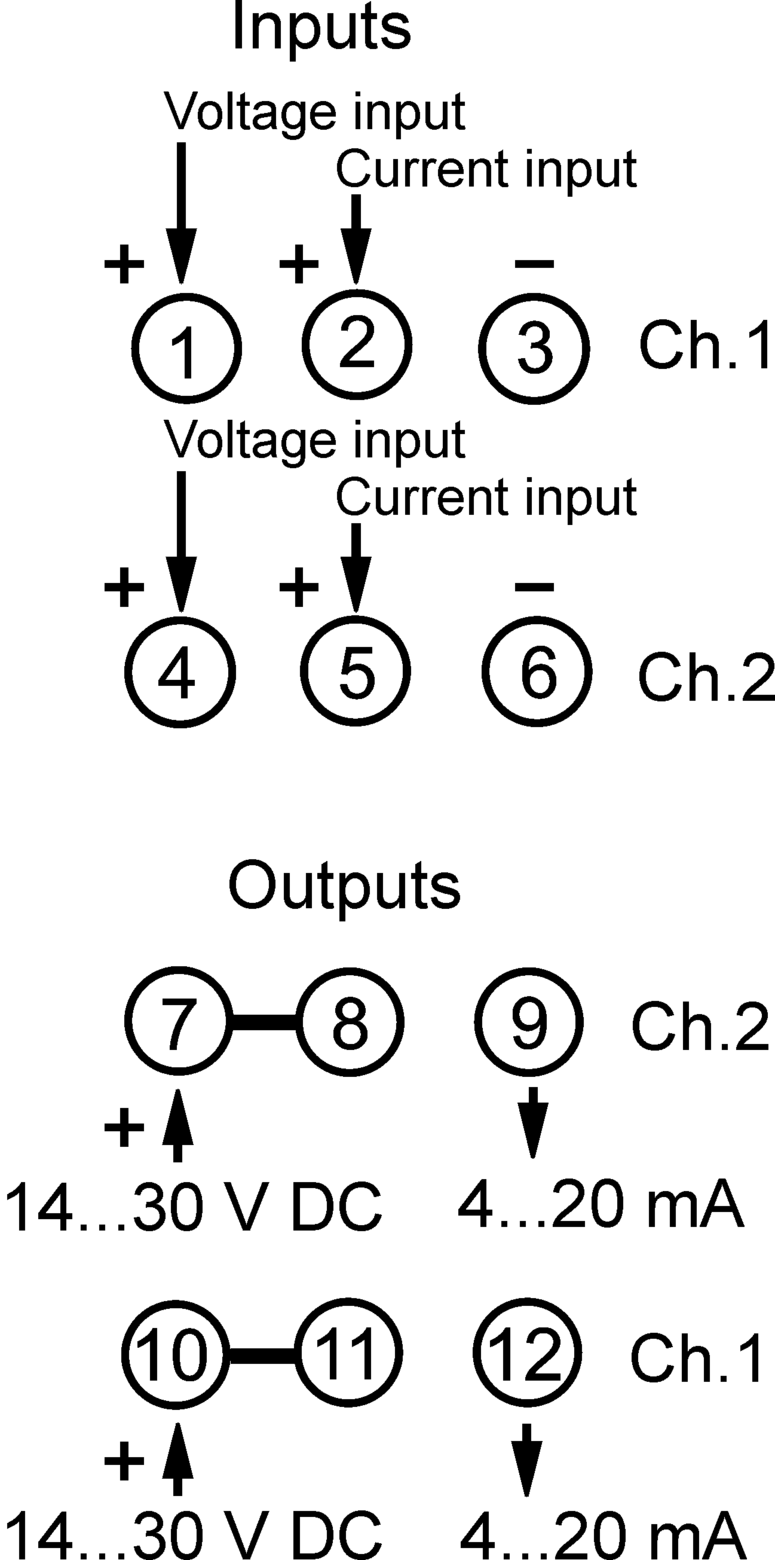

Input ranges

Versions accept 0..20 mA and 0..10 V DC, 4..20 mA and 2..10 V DC, or ±20 mA and ±10 V DC input signals.

Passive current output

The output provides a passive 4..20 mA signal. The maximum burden depends on loop voltage according to Rmax = (UB-14 V) ÷ 20 mA.

Output characteristic

The characteristic curve can be specified as increasing or decreasing, supporting normal or inverted output behavior.

Channel versions

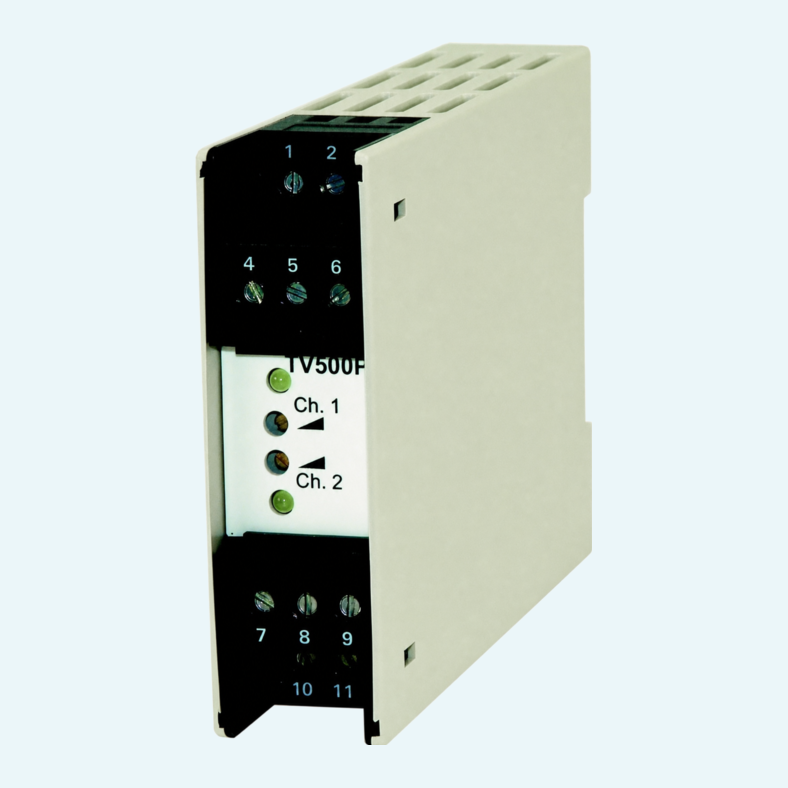

TV500P is available as a 1-channel or 2-channel device. Each channel has its own power-on LED and front-side end value adjustment.

Signal response

Rise time is below 70 ms. If the input signal falls below -34 % or exceeds +34 %, the output switches to 22 mA.

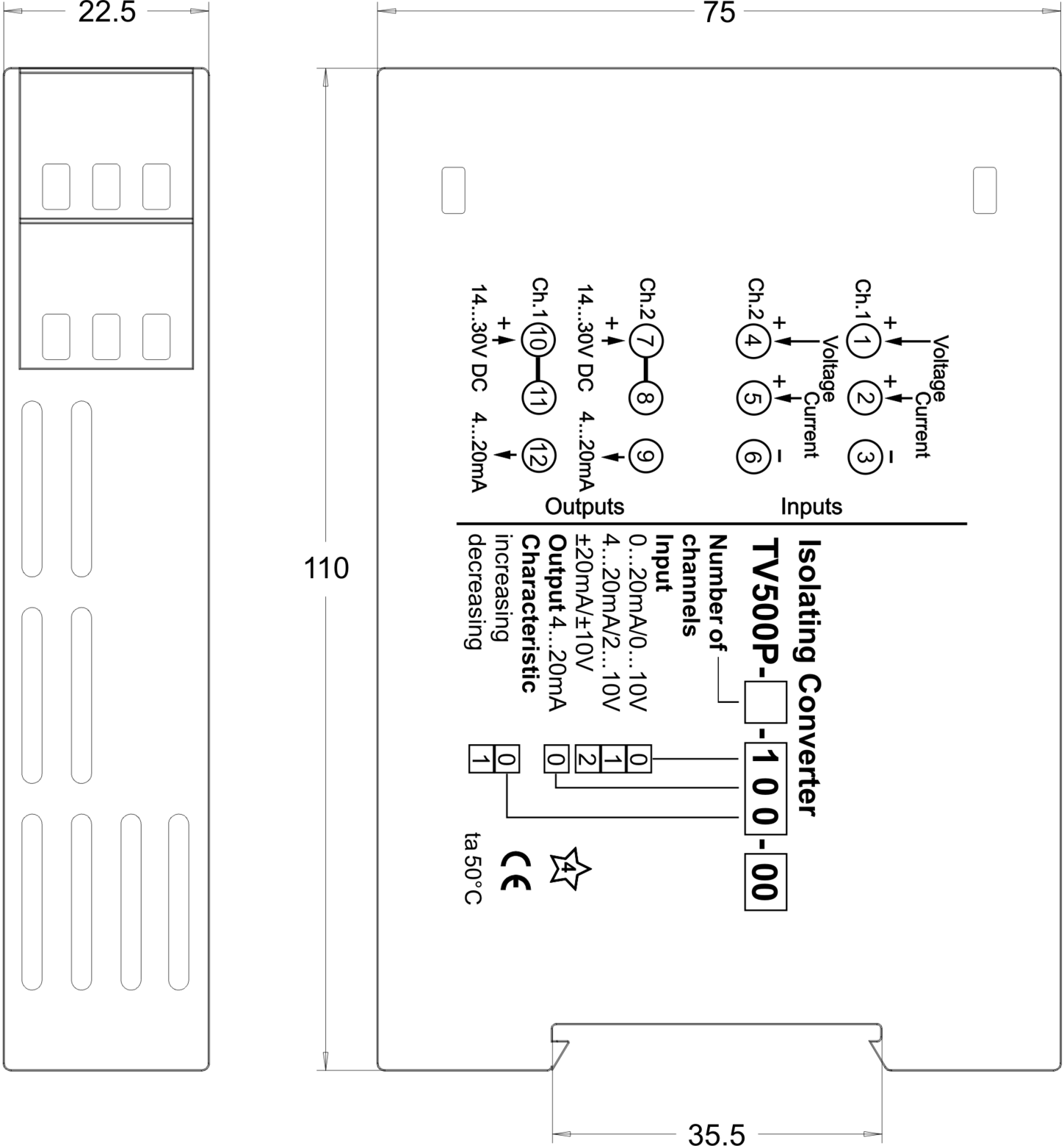

DIN rail housing

The standard polycarbonate case mounts on TS35 DIN rails and provides case IP30 with IP20 terminals.
