Isolating amplifier

ST500 / TV500

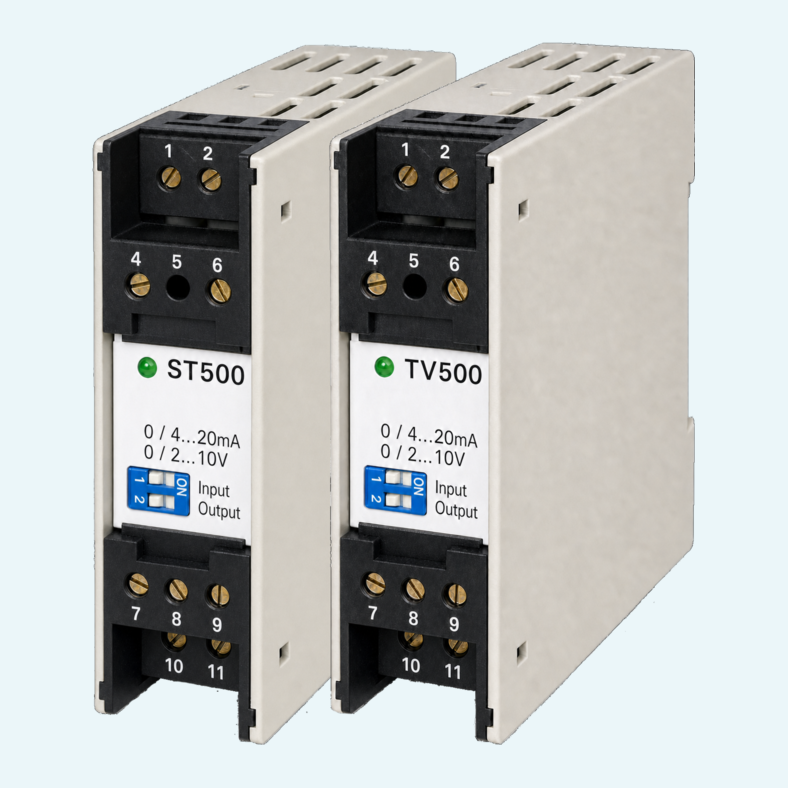

Isolating signal converter for process control signals, converting 0/4 ... 20 mA or 0/2 ... 10 V DC inputs to selectable current and voltage outputs. 22.5mm DIN rail case, 3-port isolation and ST500 transmitter supply.
Product Inquiry

Selected product option for Isolating amplifier. All information below applies to the selected product option.

Isolating converter with transmitter supply Power feed signal converter for process control signals, converting 0/4 ... 20 mA or 0/2 ... 10 V DC inputs to selectable outputs. Includes approx. 24 V DC isolated transmitter supply and 3-port isolation.
Isolating Signal Converter Isolating signal converter for process control signals, converting 0/4 ... 20 mA or 0/2 ... 10 V DC field inputs to selectable current and voltage outputs. 22.5mm DIN rail case, 3-port isolation and power-on LED.

Introduction

Field transmitters often need both signal conditioning and a dependable supply from the control cabinet. ST500 combines signal isolation and conversion with an integrated, fully floating transmitter supply of approx. 24 V DC.

The device converts 0/4 ... 20 mA or 0/2 ... 10 V DC field signals into selectable process control outputs. Front DIP switches configure input and output ranges, while the current output supports a max. burden of 1 kΩ for direct control of I/P transmitters and 20 mA proportional valves. Voltage output is available simultaneously.

Full 3-port isolation separates input, output and supply for stable integration into industrial control systems. The 22.5mm DIN rail case saves cabinet space, and supply options cover 100 ... 265 V AC or 10.8 ... 30 V AC/DC. Measuring range variants provide T90 <20 ms or T90 <100 μs for faster signal transmission.

Flexible conversion
Flexible conversion
Switch selectable 0/4 ... 20 mA and 0/2 ... 10 V DC inputs and outputs.
Clean separation
Clean separation
Full 3-port isolation separates input, output and supply.
Direct actuator use
Direct actuator use
Current output supports max. 1 kΩ burden for I/P transmitters and 20 mA valves.
Sensor feed included
Sensor feed included
ST500 provides an integrated approx. 24 V DC transmitter supply.

Features

Switch selectable inputs

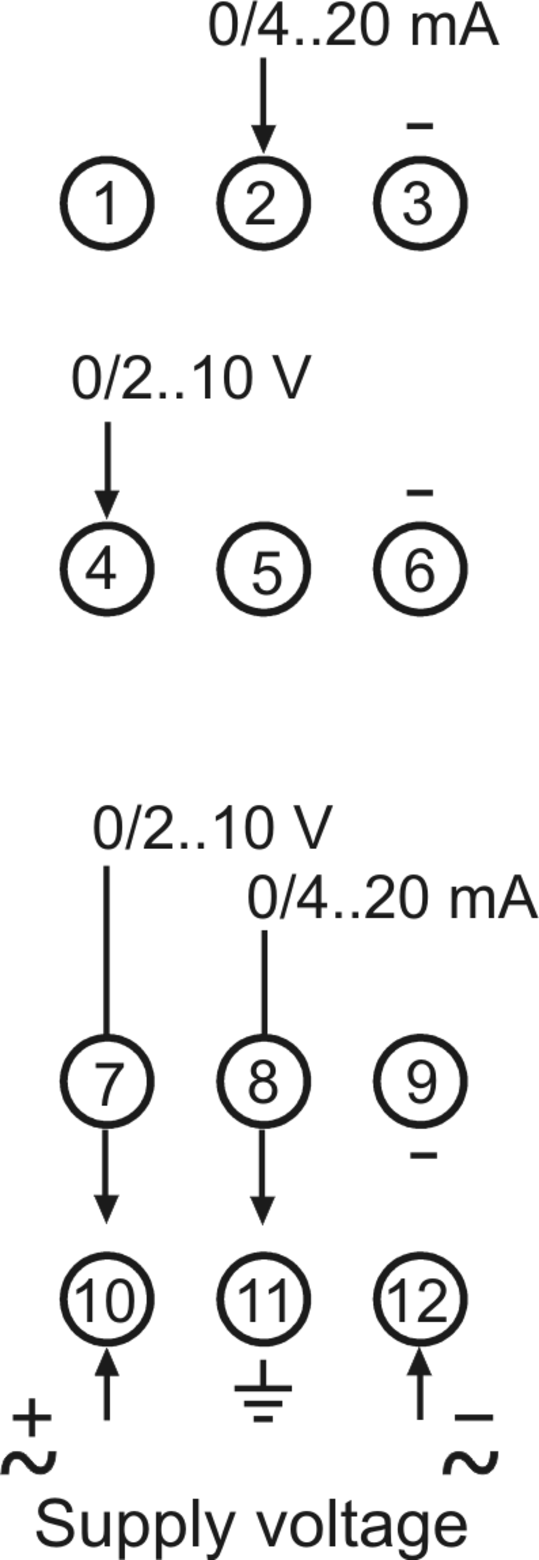

The input range is configured on the front panel for 0 ... 20 mA, 4 ... 20 mA, 0 ... 10 V DC or 2 ... 10 V DC.

Current and voltage outputs

The output can be selected for 0 ... 20 mA, 4 ... 20 mA, 0 ... 10 V or 2 ... 10 V, with current and voltage output available simultaneously.

Transmitter supply

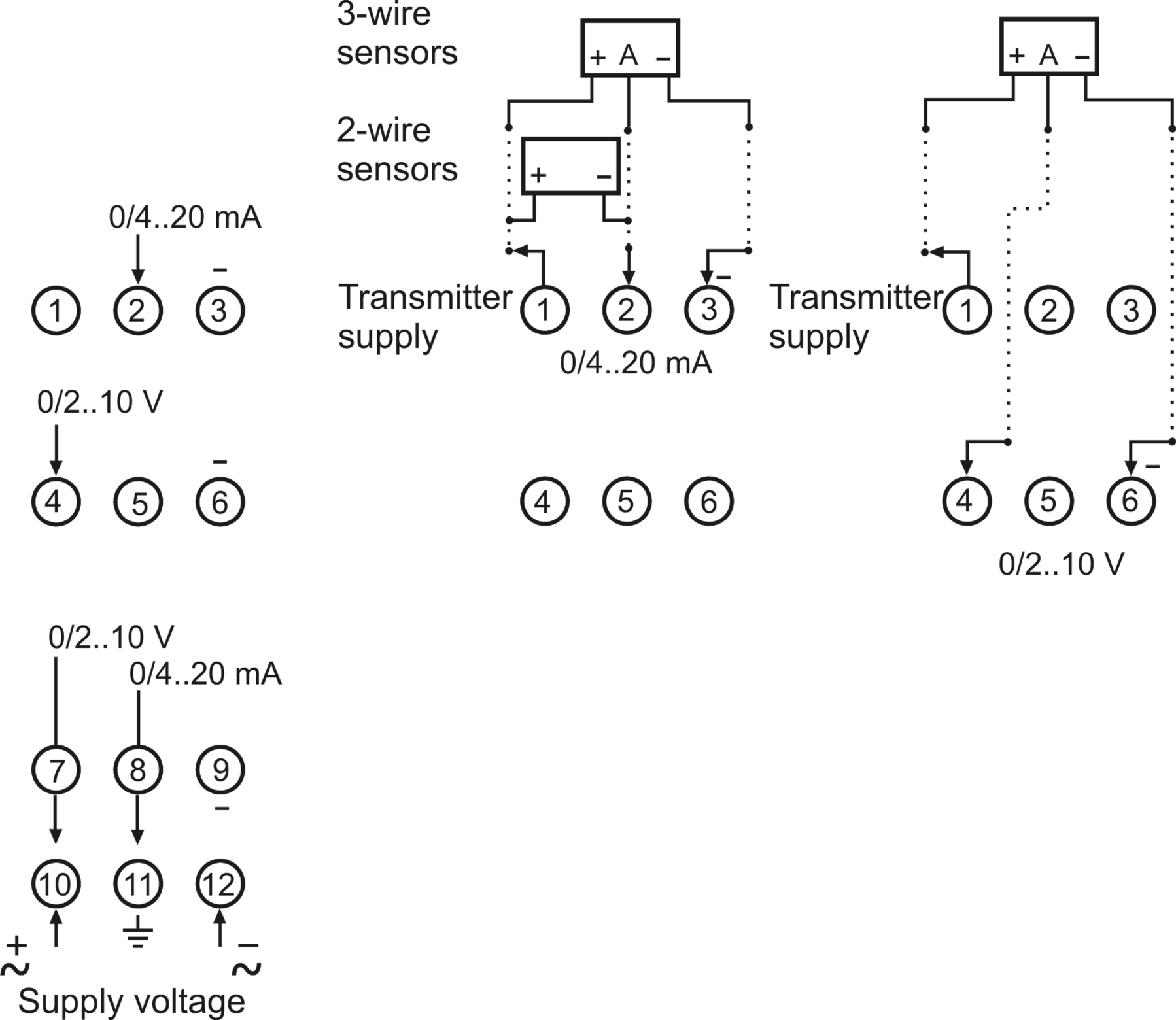

ST500 versions provide a fully floating isolated transmitter supply for connected field devices.

Supply voltage variants

Versions are available for 100 ... 265 V AC or 10.8 ... 30 V AC/DC auxiliary voltage.

Response time options

Measuring range 10 provides T90 <20 ms. Measuring range 11 provides T90 <100 µs for faster signal transmission.

Adjustment controls

The measuring range and 4mA/2V value can be adjusted by approx. +/-5% using front panel controls.

DIN rail housing

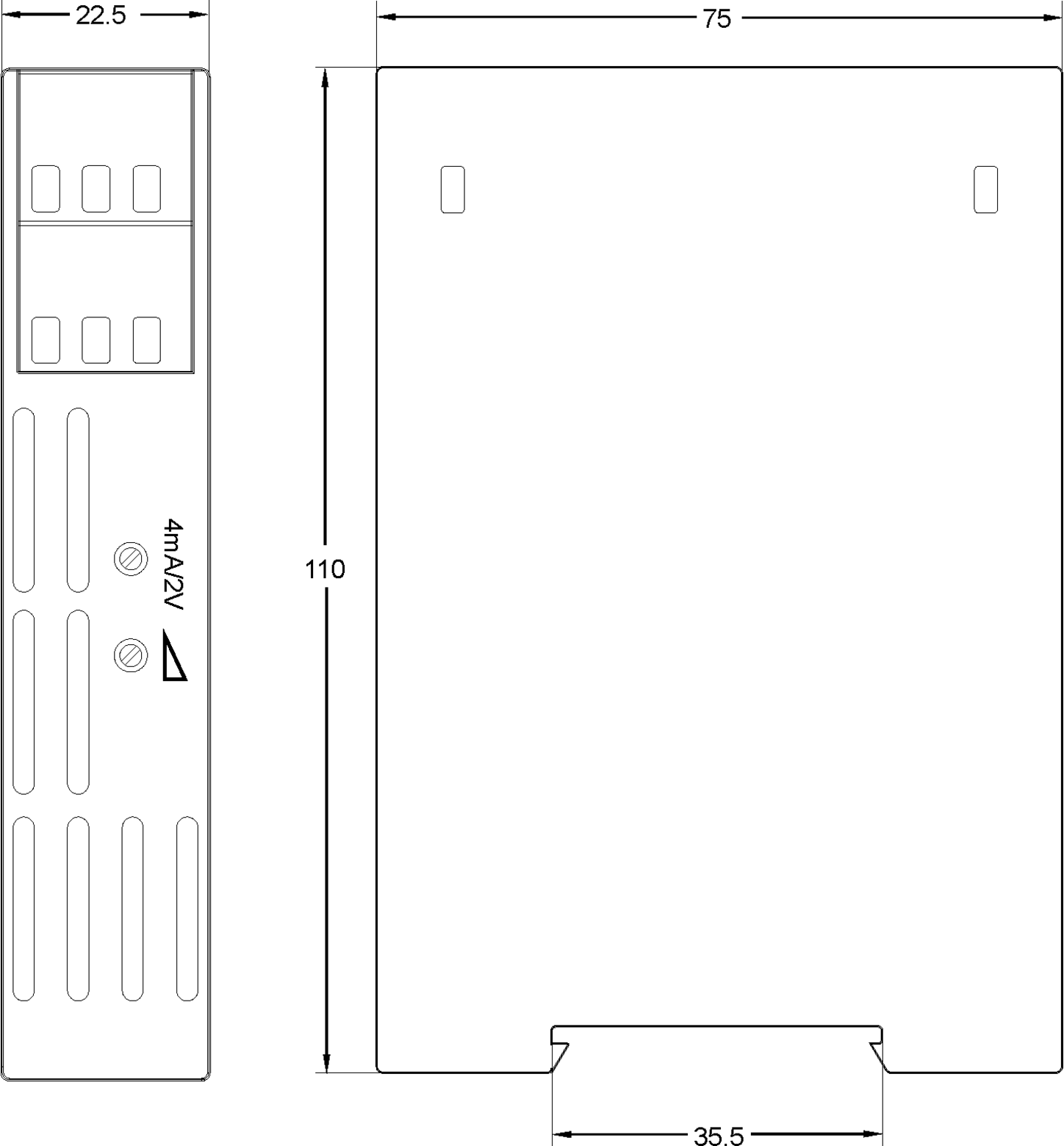

The device uses a 22.5mm polycarbonate case for TH35 DIN rail mounting, with housing IP30 and terminals IP20.
