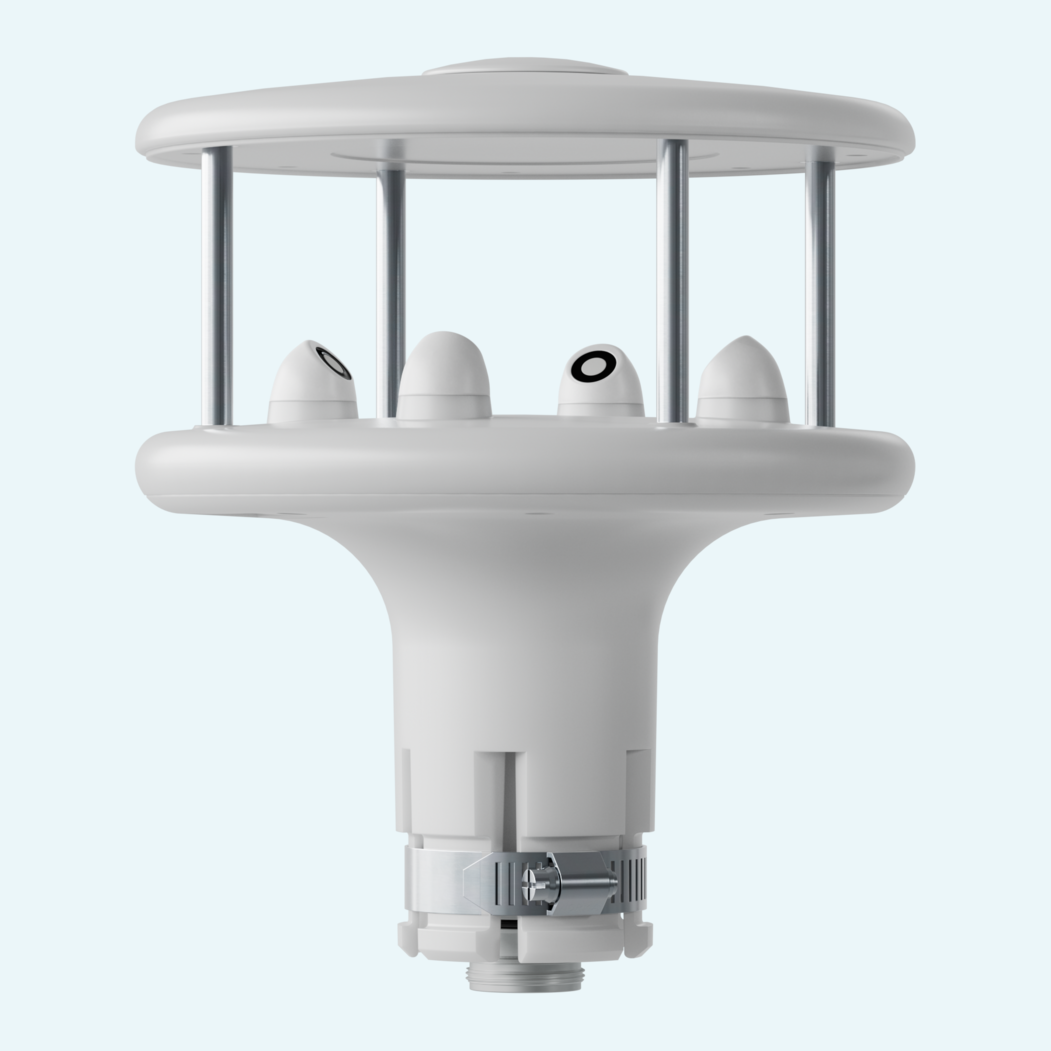

2-axis ultrasonic anemometer for wind monitoring

HD52.3D

Ultrasonic anemometer measuring wind speeds from 0 to 60 m/s and wind direction from 0 to 359.9°, with magnetic compass compensation, two analog outputs and RS232/RS485/RS422/SDI-12 interfaces supporting Modbus-RTU, NMEA or SDI-12 protocols.
Product Inquiry

Introduction

When you need wind data you can trust without the wear and downtime of moving parts, ultrasonic measurement is a practical choice. HD52.3D combines wind speed, wind direction, wind gust and U-V wind components in a compact 2-axis ultrasonic anemometer, with optional sensors that turn it into a single-instrument weather node.

Setup stays flexible across data loggers, PLCs and meteo networks. The instrument provides two analog outputs for wind speed and direction and supports RS232, RS485, RS422 and SDI-12 serial interfaces. Communication can be configured for proprietary ASCII, NMEA, Modbus-RTU or SDI-12, and wind speed and direction averages are calculated over a selectable interval from 1 s up to 10 min. Optional measurement packages add temperature and relative humidity, barometric pressure, and either global solar radiation or rainfall (these two options are alternatives). A built-in magnetic compass compensates wind readings and refers them to magnetic North even without North alignment, supporting accurate measurements in mobile installations. For cold and snow conditions, a heater option is available to prevent ice formation on the sonic transducers.

No moving parts
Ultrasonic wind measurement reduces wear and routine replacement needs.
Compass compensation
Magnetic compass refers wind data to magnetic North, even without North alignment.
Flexible integration
2 analog outputs plus RS232, RS485, RS422 and SDI-12 interfaces with Modbus-RTU and NMEA options.
Expandable meteo node

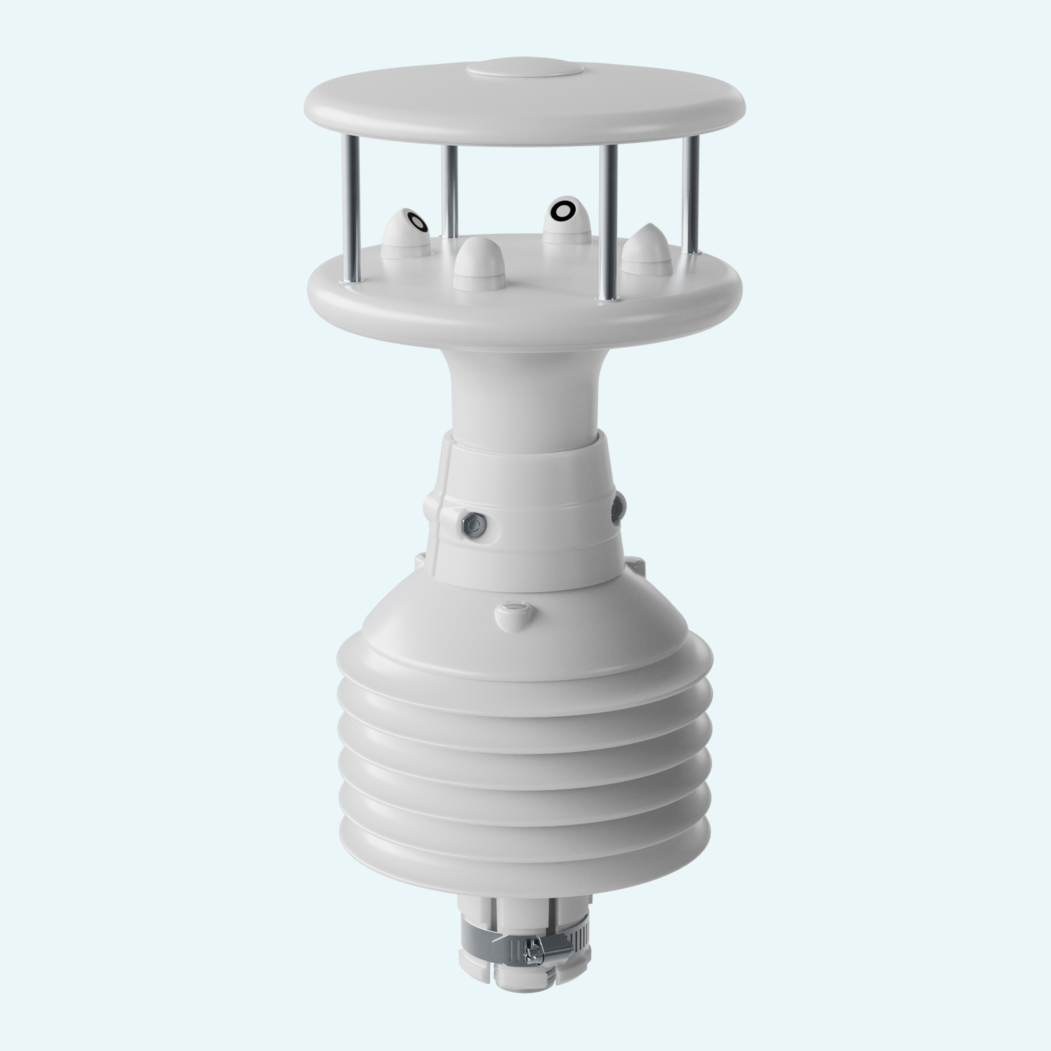

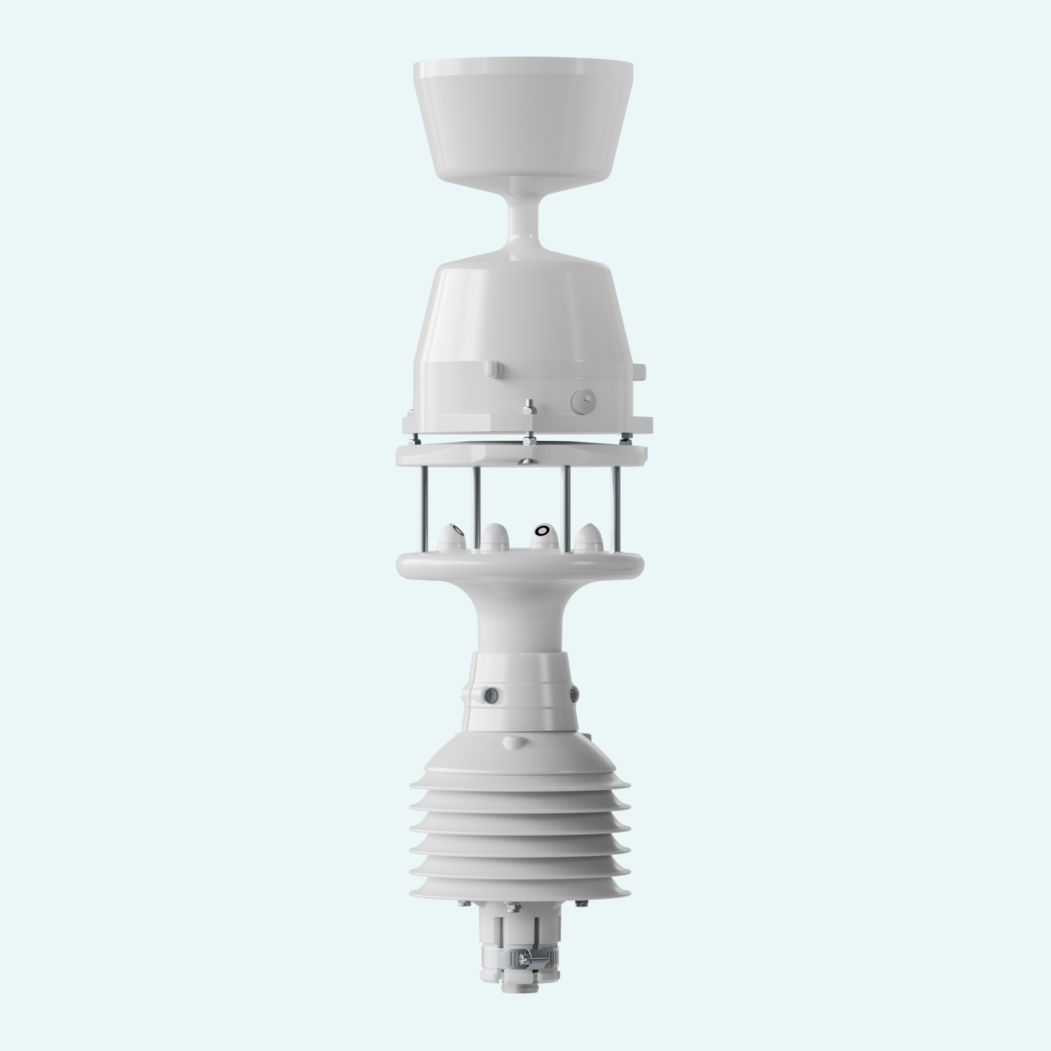

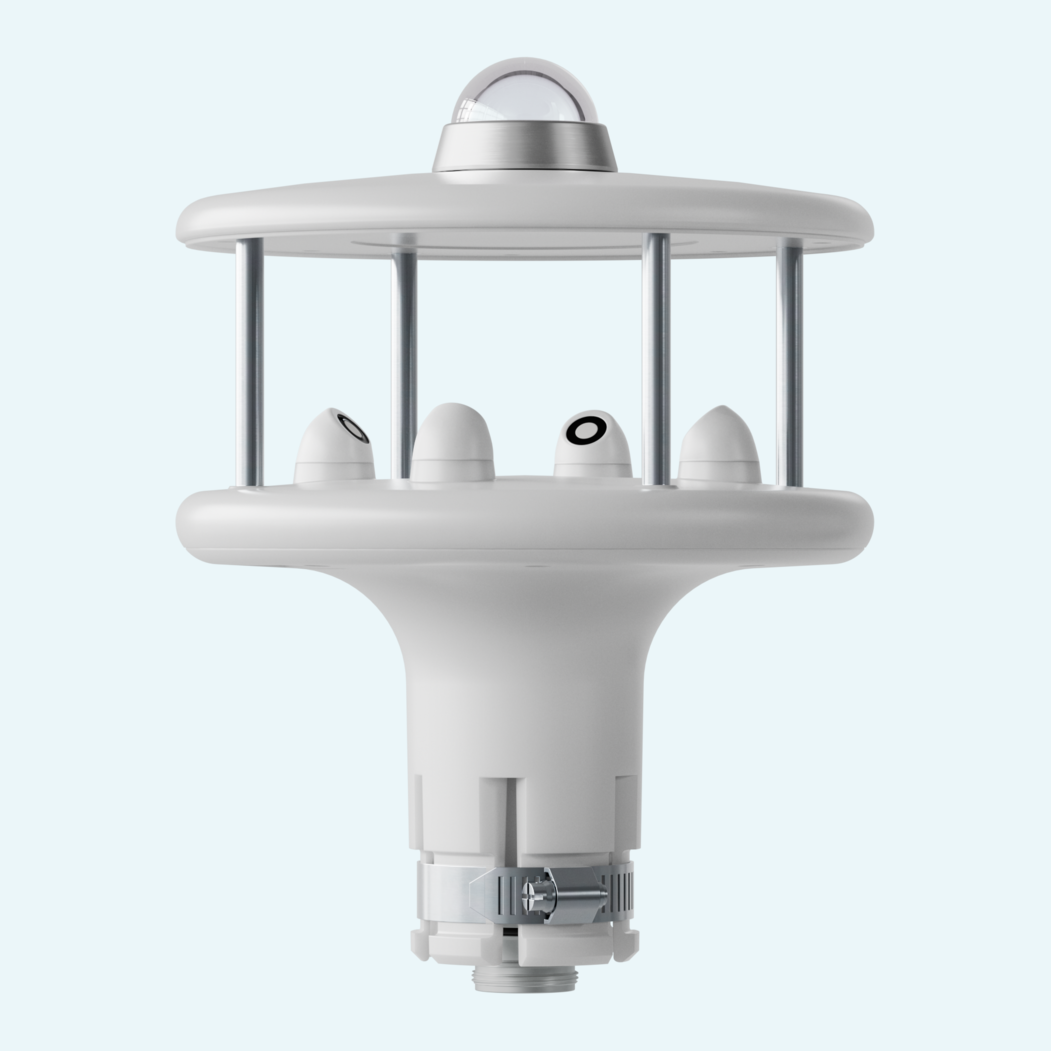

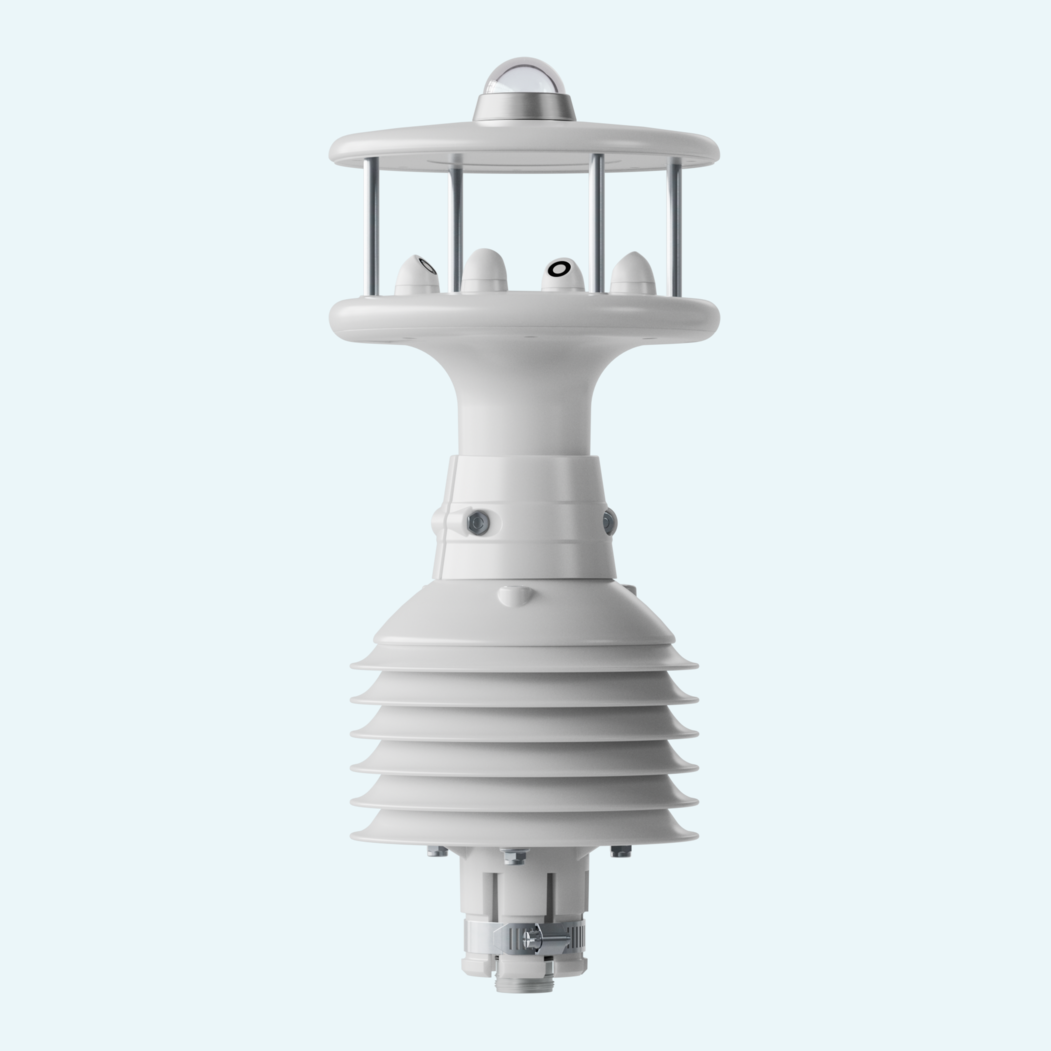

Options add temperature/RH, pressure, and either global solar radiation or rainfall.

Features

Wind measurement

Wind speed is measured from 0...60 m/s (0...50 m/s with rain gauge option) with 0.01 m/s resolution, and direction from 0...359.9° with 0.1° resolution.

Magnetic compass

Compass range is 0...360° with 0.1° resolution and ±1° accuracy, supporting compensated wind direction.

Analog outputs

Two outputs are provided for wind speed and direction, configurable as 4...20 mA (standard) or 0...1 V, 0...5 V, 0...10 V (0\...10 V requires 15...30 Vdc supply).

Serial interfaces and protocols

RS232, RS485 (¼ Unit Load), RS422 and SDI-12 are available with proprietary ASCII, NMEA, Modbus-RTU and SDI-12 protocols.

Averaging configuration

Wind speed and direction averaging interval is configurable from 1 s to 10 min.

Mechanical and environmental design

IP66 protection, plastic case with AISI 316 metal parts, mounting on Ø 40 mm mast and M23 19-pole connector.
