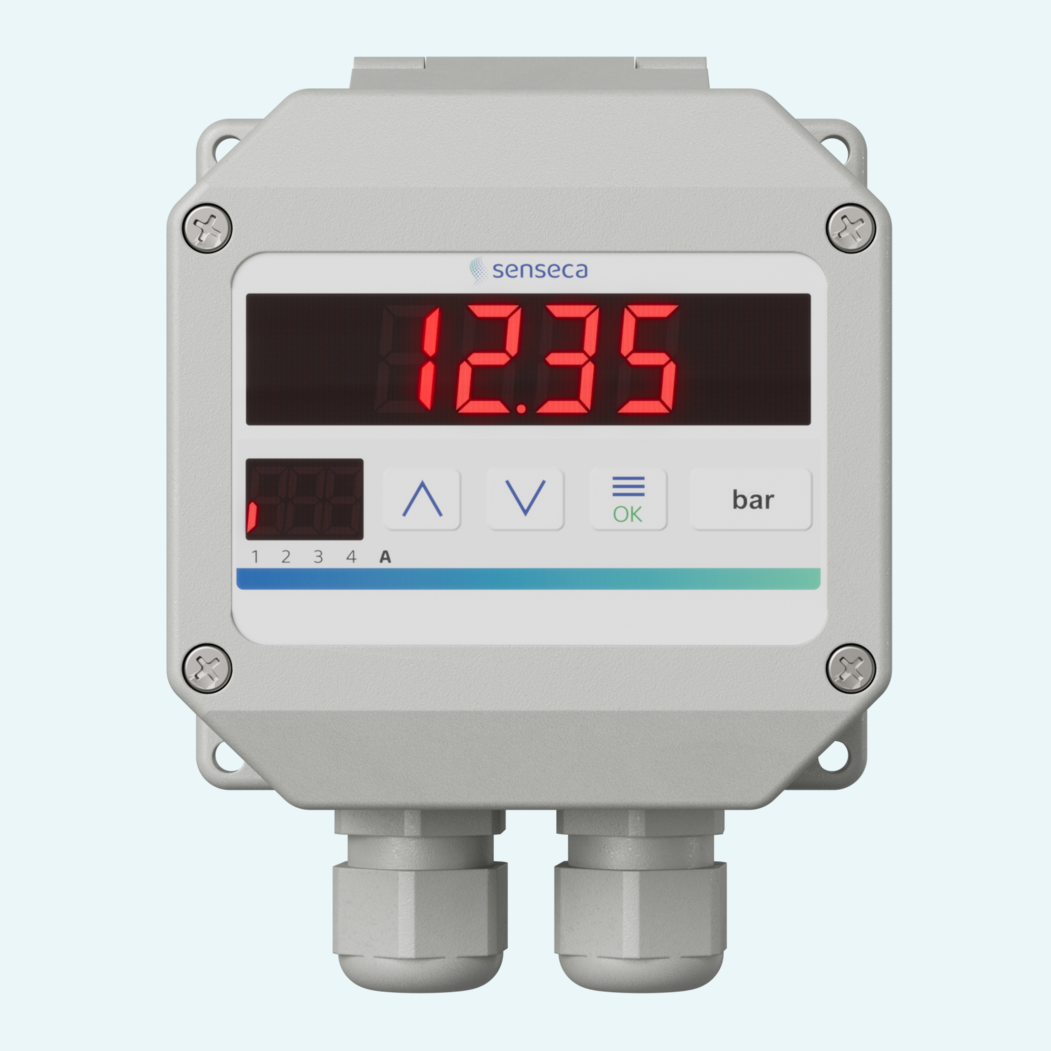

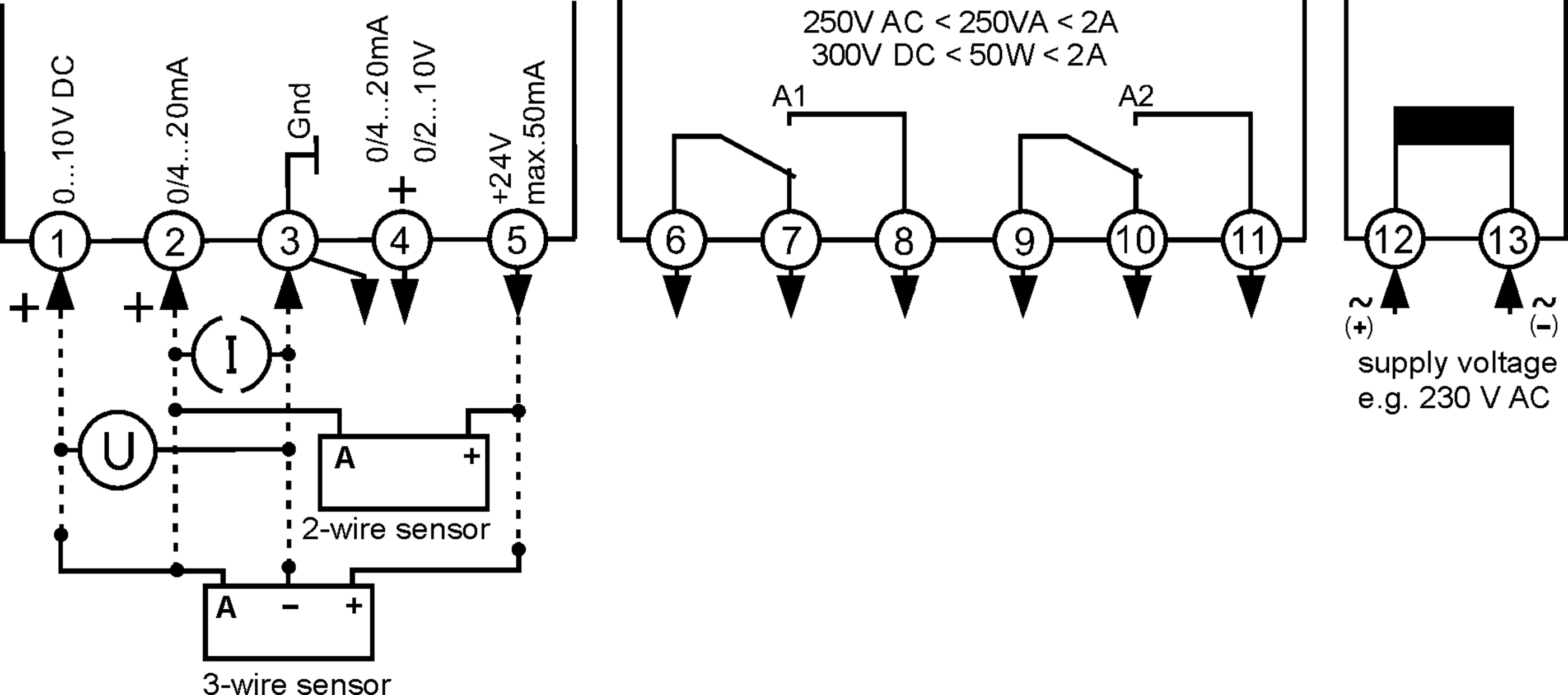

Field signals are easier to work with when the measured value is visible directly at the installation point. S1010 measures standard 0/4 ... 20 mA and 0 ... 10 V DC signals, displays the scaled value and supports direct connection of 2- and 3-wire transmitters.
The indicating range and decimal point are freely programmable within ±9999(0) digit, allowing the display to match pressure, temperature or other transmitter-based values. A 14.2 mm red LED display provides clear local reading, while the integrated 24 V transmitter supply reduces the need for separate sensor power in many installations.

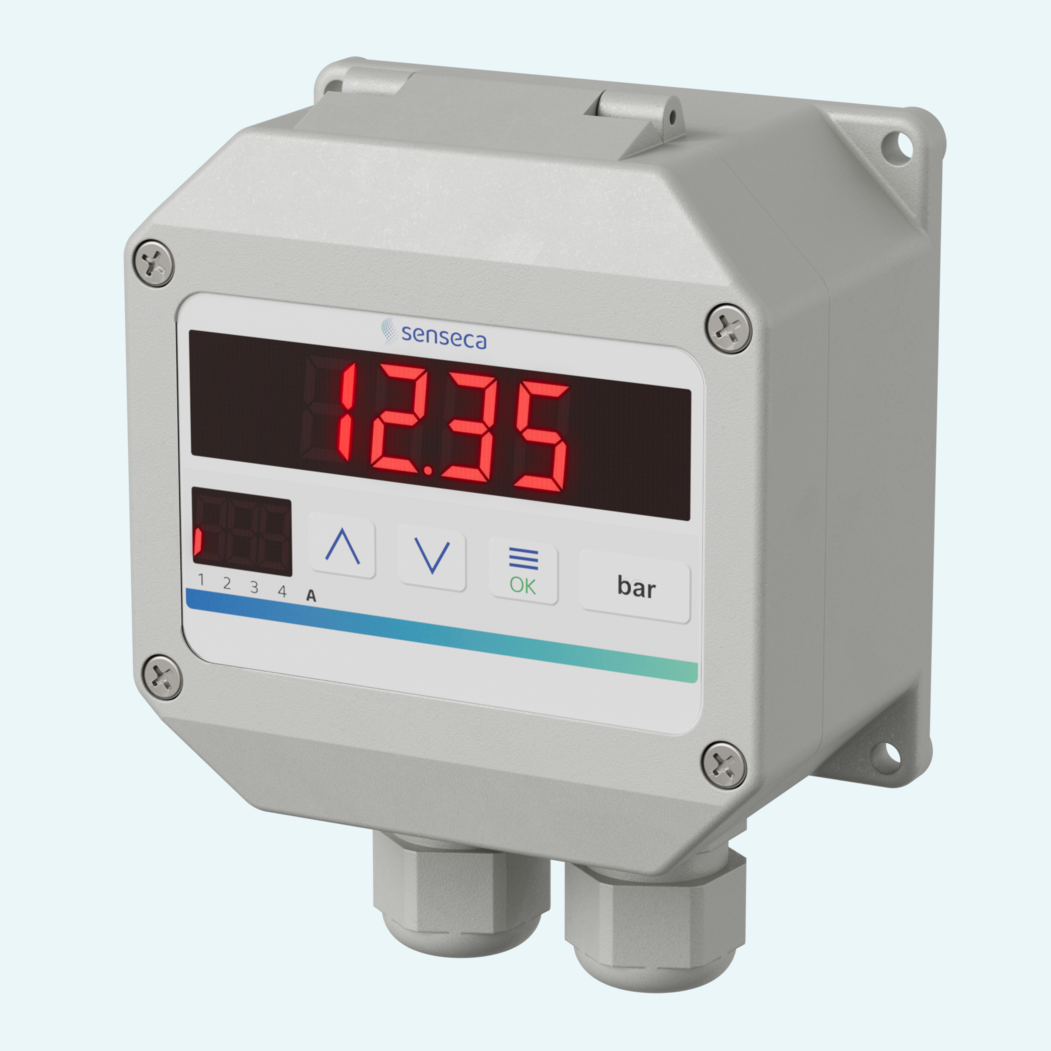

For local monitoring and signal forwarding, the device can be equipped with up to 2 relay alarm outputs and an analog output. Min./max. switching behavior, hysteresis and on/off delays from 1 s up to 9 h are programmable. The IP65 field case with snap lid and cable glands is suited to field-mounted applications.
The meter measures 0/4 ... 20 mA current signals and 0 ... 10 V DC voltage signals. The current input has 10 Ω input resistance, and the voltage input is >100 kΩ.
Start value, end value and decimal point position are programmable. A fixed zero setting and indicating correction are also available in the configuration menu.
The selectable digital filter continuously averages the last 16 measured values and shows the result on the display
Relay outputs can be configured for minimum or maximum switching. Setpoint, hysteresis, switch-on delay and switch-off delay are programmable.
The optional analog output provides 0/4 ... 20 mA or 0/2 ... 10 V DC. The output switches automatically between current and voltage mode depending on burden.
Optional min. and max. peak hold functions display the stored minimum and maximum readings, which can be reset manually or at power-off.
Supply voltage options include 230 V AC, 115 V AC, 24 V AC and 24 V DC, selected through the ordering code.
| Accuracy |
0.1 %
|
|---|---|
| Analog input type (current) |
4…20 mA, 0…20 mA
|
| Analog input type (voltage) |
0…10 V
|
| Number of analog inputs |
1
|
| Degree of protection front |
IP65
|
|---|---|
| Degree of protection terminals |
IP20
|
| Operating temperature |
-20...+55 °C
|
| Number of analog outputs (active) |
0, 1
|
|---|---|
| Type of analog output |
4…20 mA, 0…20 mA,0…10 V, 2…10V
|
| Temperature coefficient |
0.01 %/K
|
| Accuracy |
0.1 %
|
| Burden (current output) |
< 500 Ω
|
| Load (Voltage Output) |
> 500 Ω
|

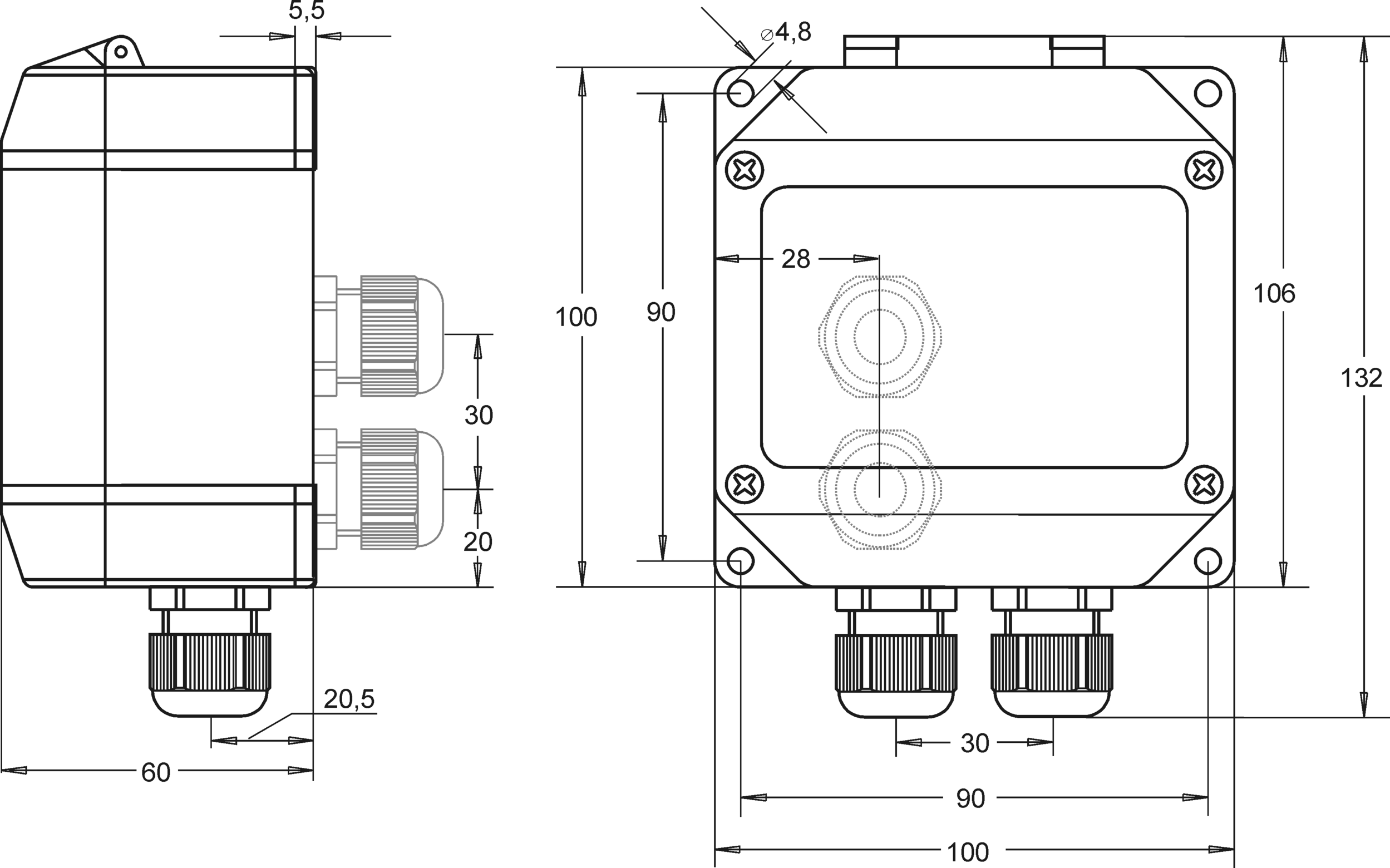

| Dimensions |
100 mm x 100 mm x 60 mm
|
|---|---|
| Materials |
PA6-GF 15/15
|
| Mounting |
Field
|
| CE Conformity |
Yes
|
|---|
| Electrical connection type |
Clamp terminals
|
|---|
| Auxiliary voltage |
230 V AC, 115 V AC, 24 V AC, 24 V DC
For 230 V AC ±10 % 50 ... 60 Hz: 230 V AC For 24 V DC ±15 %: 24 V DC |
|---|---|
| Power consumption |
< 3.5 VA
|
| Protection class |
III
|
| Degree of pollution |
2
|
| Rated voltage |
250 V AC
|
| Test voltage |
4 kV DC
|
| Auxiliary voltage tolerance |
For 230 V AC ±10 % 50 ... 60 Hz: ± 10 %
For 24 V DC ±15 %: ± 15% |
| Type of switching output |
Relais,SPDT
|
|---|---|
| Contact rating relay AC |
< 2 A < 250 VA < 250 V
|
| Contact rating relay DC |
< 2 A < 50 W < 300 V
|
| Transmitter Power Supply |
24 V DC
|
|---|---|
| Current |
< 50 mA (25 mA with relay and analog output)
|
| Internal Resistance (Ri) |
~ 150 Ω
|
| Accuracy indication |
±2 Digit
|
|---|---|
| Display type |
LED
|
| Type of controls |
3 Button
|
| Description |
LED 2-digit red, 7 mm (parameter - and output indicator)
|
| Display range |
±9999(0) Digit
|
