Differential pressure work needs clear readings, flexible connection and enough context to understand changing conditions. The PRO 211-x / PRO 215-x measures differential pressure in air and non-aggressive dry gases across four ranges from ±20.00 to ±2000 hPa, with accuracy of ±0.15 %FSS ± 1 digit typ. @ 25 °C.

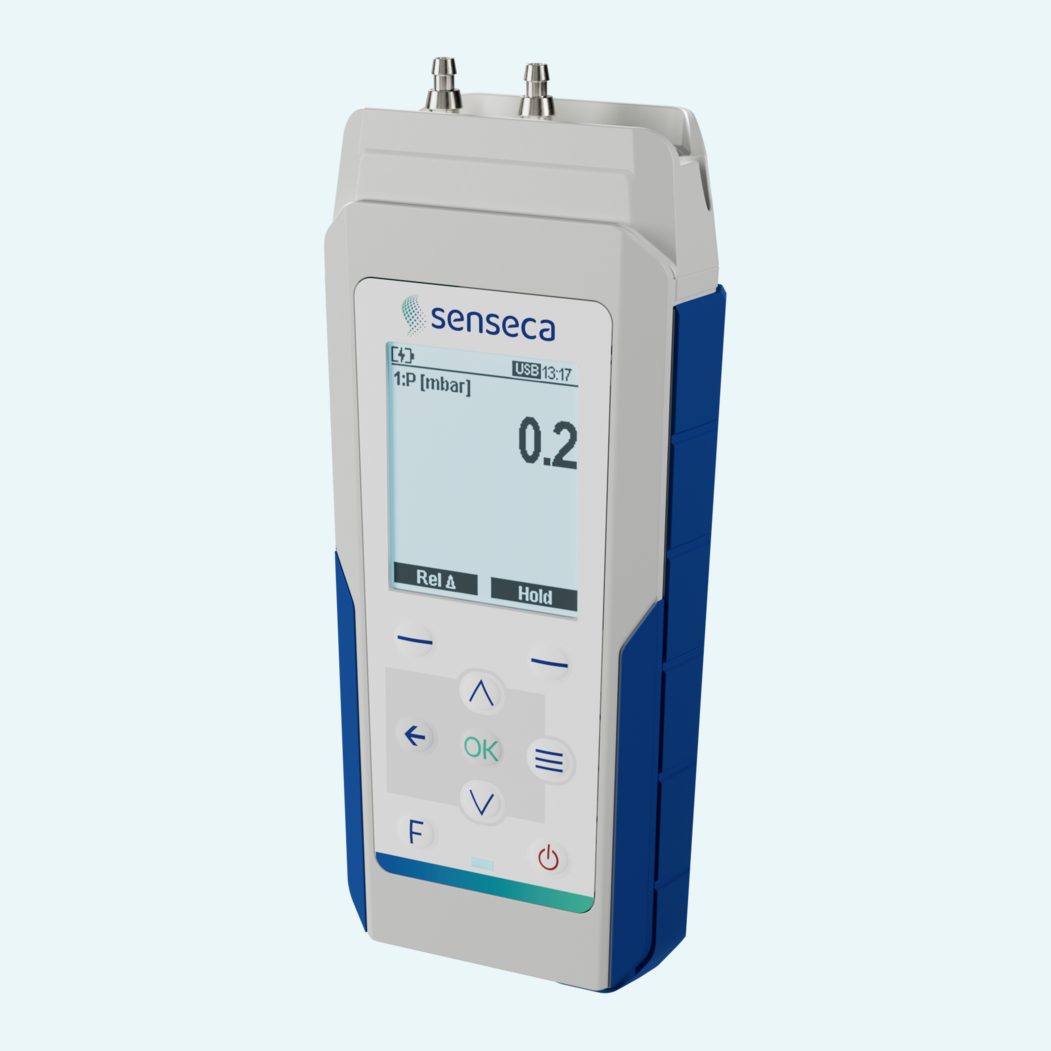

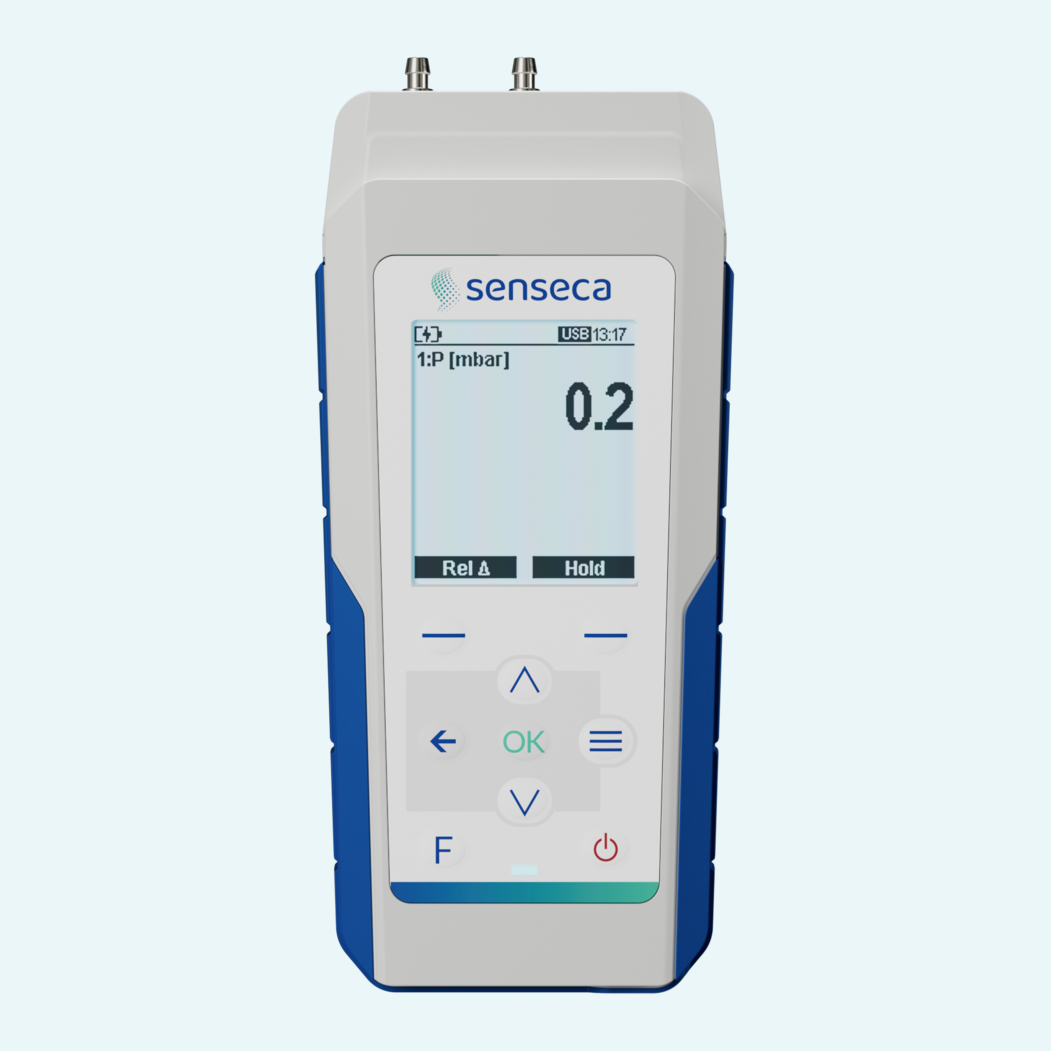

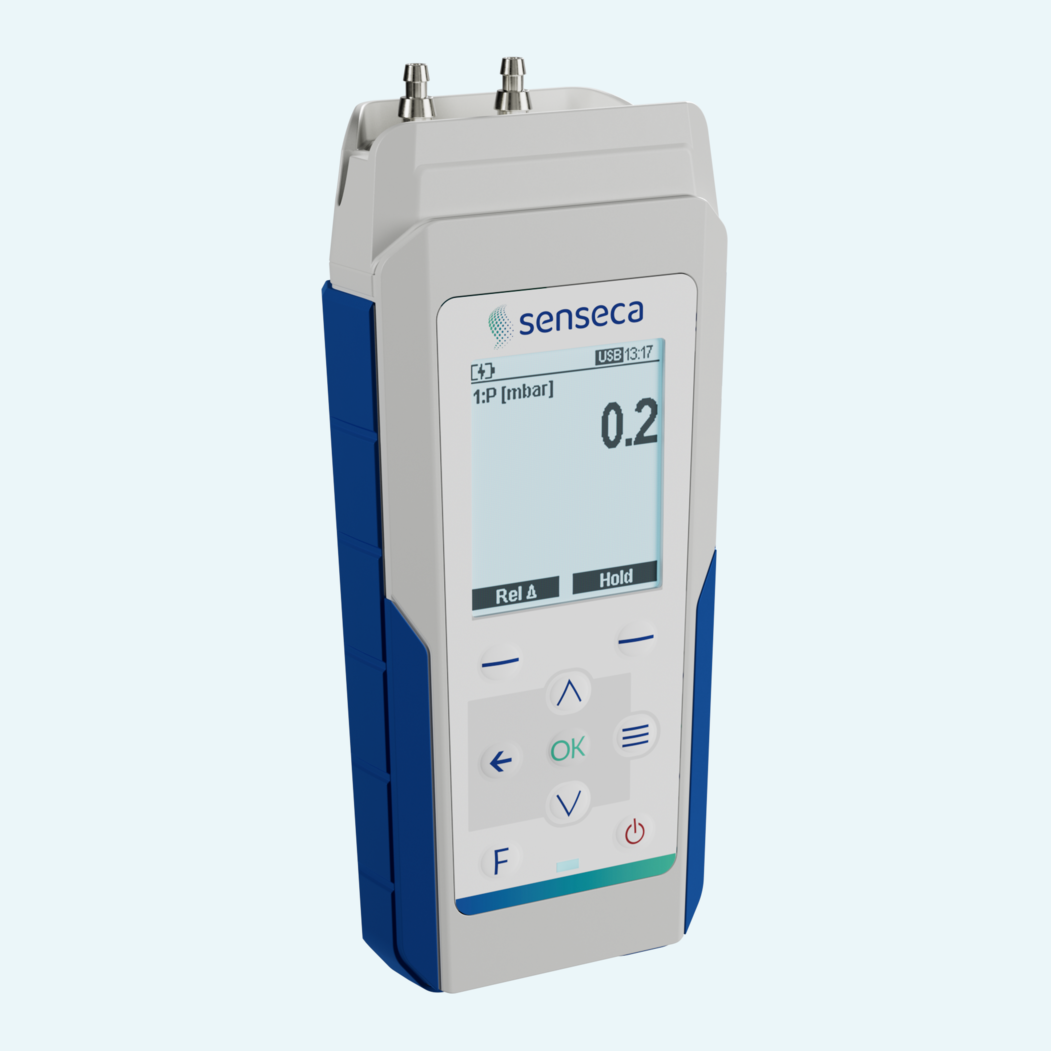

The large backlit dot matrix LCD supports practical field work with large value, multi-row, Min/Avg/Max and chart views. HOLD freezes a reading, REL displays measurement against a user reference value, and configurable acoustic or optical alarms help identify exceeded thresholds during testing.

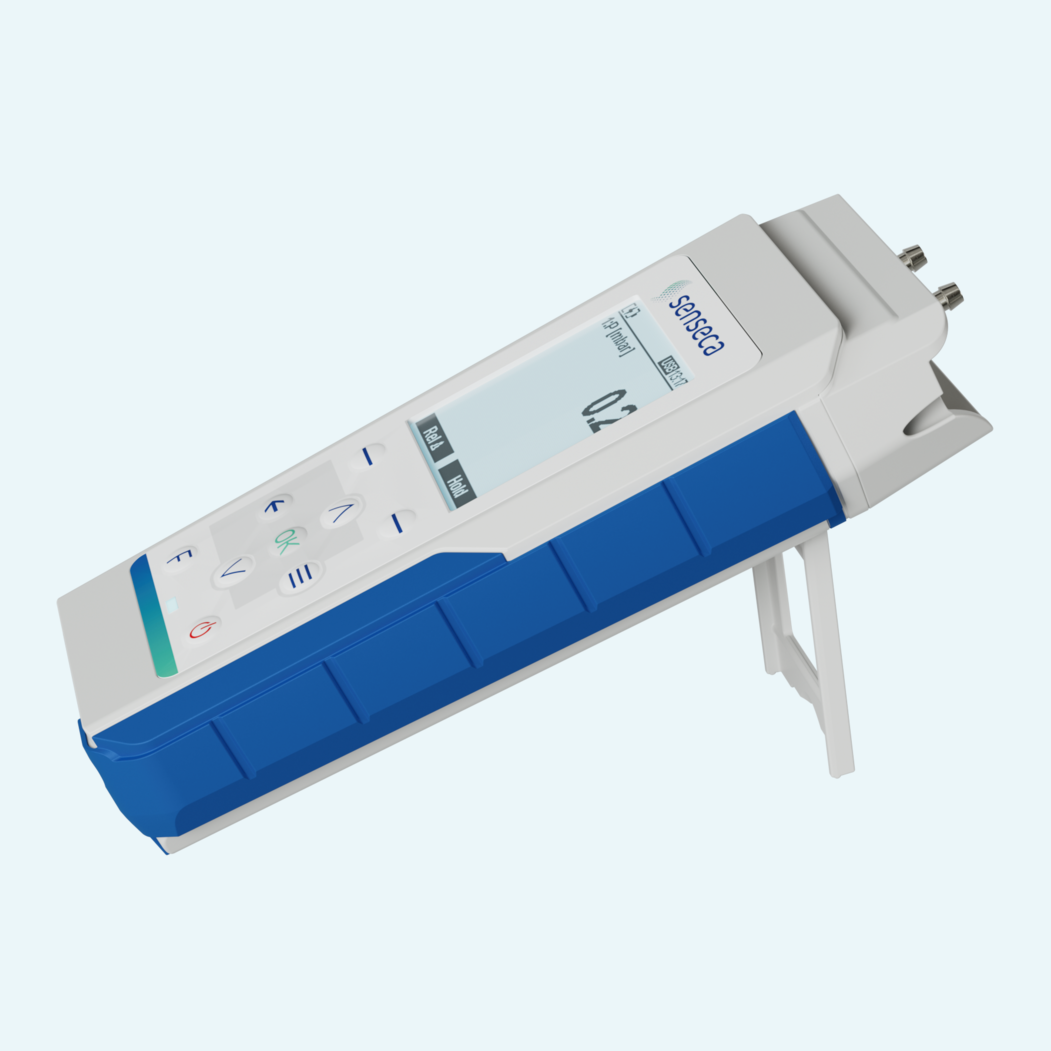

For documentation tasks, PRO 215-x adds internal logging for up to 1 million data sets with date/time stamp, CSV storage and USB-C mass storage access. Universal barbed pressure ports for 4 and 6 mm inner diameter hoses, interchangeable G 1/8 connections, a foldable stand, magnet and IP67 protection support demanding portable use.
The internal digital sensor measures the difference between the '+' and '-' pressure inputs for one differential channel.
Four measuring ranges are available: ±20.00, ±200.0, ±500.0 and ±2000 hPa, depending on model.
The display can show a large single value, multi-row view, statistical values or a graphical measurement history.
The instrument detects minimum, average and maximum values and allows the user to reset the calculation.
Alarm thresholds and hysteresis can be configured with acoustic indication, optical indication or both.
The USB-C port supports PC connection for serial communication and, on PRO 215-x, access to stored logging files.
The meter operates on 4 AA alkaline batteries or external 5 Vdc power via USB-C.
Zero point and gradient user corrections can compensate sensor drift over time.
| Type of media |
Air, Non-aggressive dry gases
|
|---|
| Temperature inputs |
0
|
|---|---|
| Measurement rate |
4 /s
|
| Accuracy pressure |
±0,15 %FSS (FSS = 2 x full scale pressure) ± 1 digit typ. @ 25 °C. ±1,5 %FSS ± 1 digit max.
|
| Pressure type |
differential
|
| Connection |

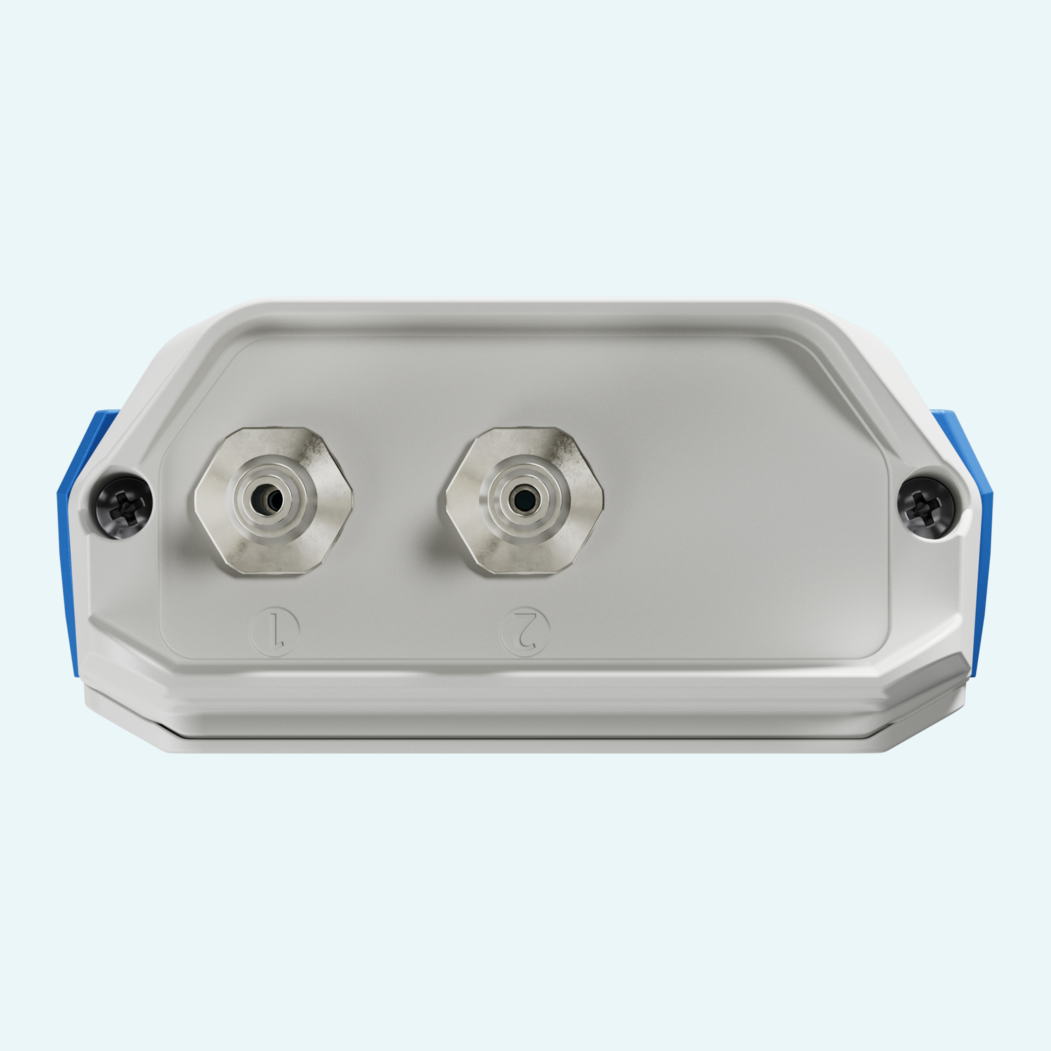

2 universal barbed pressure ports (+/-) for 4 and 6 mm inner diameter hose, interchangeable G 1/8 thread connection
|
| Sensor type pressure |
differential
|
| Number of measuring inputs |
2
|
| Operating temperature |
-5...+50 °C
|
|---|---|
| Operating relative humidity |
0...85 %RH
|
| Condensation |
not permitted
|
| Storage temperature |
-25...+65 °C
|
| Degree of protection case |
IP67
|
| Dimensions |
80 mm x 170 mm x 38 mm
|
|---|---|
| Materials |
ABS, TPE, Polyester, side protection: TPE, front panel: polyester
|
| Weight |
340 g
|
| Interface type |
USB
|
|---|---|
| Communication ports |
USB-C
|
| Battery life |
150 h
|
|---|---|
| Battery life description |
> 150 h typ. continuous operation
|
| Battery type |
Battery 4x AA alkaline
|
| Power consumption |
20 mA, typ.
|
| Connection |
M12
|
|---|
| Display presence |
Yes
|
|---|---|
| Description |
Multiple choice of measurement screens:
Large digit single value Multi-row Statistical info (Min/Avg/Max) Chart view |
| Resolution |
140 x 160 dot matrix (visible area 42 x 50 mm)
|
| Type of controls |
Button
|
| Display type |
LCD backlit
|
