Class 1 Sound Level Meter and Analyzer. Pure Simplicity.

XPT801

Class 1 sound level meter with 117dB dynamic range, octave and third-octave spectrum analysis and WiFi, Ethernet and 4G network connectivity.
View all variants Product Inquiry

Introduction

Noise assessments demand dependable data without the burden of unnecessary complexity. XPT801 combines Class 1 performance (IEC 61672-1:2013) with a streamlined feature set. As a refined, lighter version of our top-of-the-range model, it eliminates operational clutter to deliver an excellent price-performance value—offering acoustic professionals a complete, reliable, and cost-effective solution.

Featuring a user-friendly interface on a vibrant 4.3" sunlight-readable touchscreen, XPT801 delivers intuitive user interaction through familiar, smartphone-like gestures while maintaining a versatile 3-button keyboard to manage all functionalities seamlessly in any environment.

With a 117 dB linear range and 0.01 dB resolution, this instrument delivers the exact measurement depth needed for regulatory and technical work—featuring octave, third-octave, and advanced statistical analysis with percentile levels, while optional functions ensure it can grow with your future requirements.

Engineered for seamless, unattended campaigns, the instrument delivers over 24 hours of continuous battery life, 4 GB internal memory, and smart event-triggered audio recording. Effortlessly transfer and sync your field data via Wi-Fi, Ethernet, or 4G directly to the cloud for instant remote access.

Class 1 precision
Compliant with IEC 61672-1:2013 Class 1 specifications for accurate and reliable acoustic measurements
Wide dynamic range
Wide dynamic range
117dB linearity range covering from 21 dBA to 140 dBpeak makes easy to measure in both quiet and noisy environments
Long-lasting battery life
The internal 9000 mAh Li-Ion rechargeable battery, supports more than 24 hours of continuous measurement campaigns
Seamless connectivity
Seamless connectivity
Transfers data via Wi-Fi, Ethernet or 4G and supports NS Storage cloud synchronization
Smartphone-like interface
Navigate the 4.3” sunlight-readable touchscreen with smartphone gestures or the 3-button keyboard in any environment
Spectrum analysis
Spectrum analysis
Octave and third-octave options support noise analysis

Features

Interchangeable microphone sets

Compatible with MS801 and MS802 microphone sets, XPT801 handles high-level measurements up to 140 dB and 178 dB respectively. Its smart Sensor Digital Interface streamlines instrument setup with automatic preamplifier model detection, seamless calibration data handling, and automated electrical CTC

Octave-band analysis

Uncover the precise composition of noise with real-time spectral analysis in both octave and one-third octave bands. Real-time 1/1 octave analysis covers 32 Hz to 16 kHz, and real-time 1/3 octave analysis covers 16 Hz to 20 kHz according to IEC 61260-1:2014.

Statistical analysis

Broadband statistics provide 7 selectable Ln percentile levels from 0.1% to 99.9%.

Event and trigger handling

Triggers can use a single broadband level, level difference, statistical level Ln or 1/1 and 1/3 octave spectrum masks. Audio recording can be continuous, manual or event triggered.

Measurement display views

The rich graphical interface offers comprehensive, customizable data visualization, featuring real-time SLM, numerical tables, frequency spectra and time histories for in-depth analysis. Users can simultaneously display parameters, broadband bars, percentiles, and exceedances for enhanced data interpretation.

Data Logging & Cloud Synchronization

Log measurements securely via the 4 GB embedded eMMC, featuring manual archiving or automated 4G/Wi-Fi background Push sync to the cloud; this enables browser-based graph/table visualization, text export, and direct integration with NS-ENS software module.

Seamless Connectivity & Interfaces

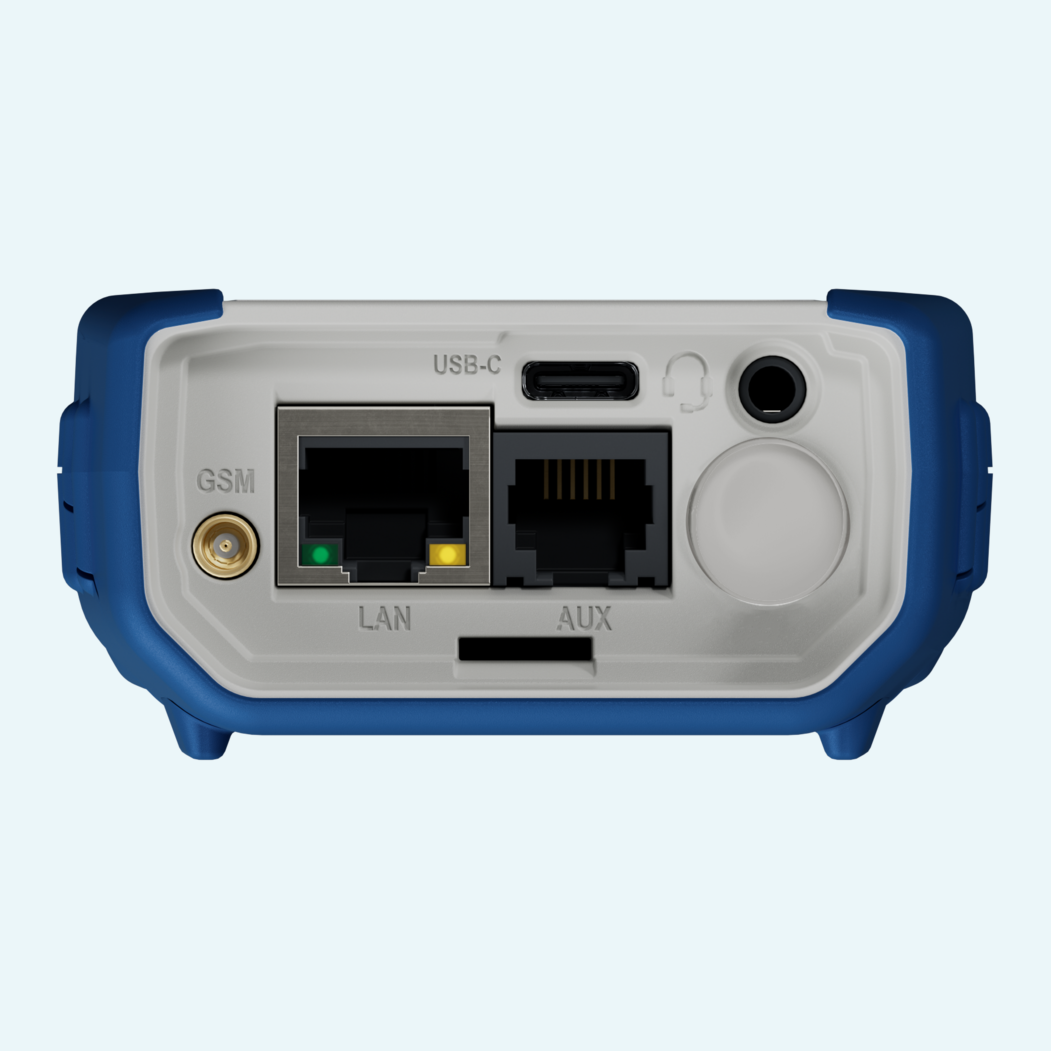

Depending on your configuration, XPT801 offers ultimate field connectivity by combining embedded Wi-Fi, an optional 4G-LTE modem, and 10/100 Ethernet for real-time web communication and time sync, alongside high-speed USB-C 2.0 (Mass Storage/Communication), a versatile RJ12 auxiliary port for external power, and a 3.5 mm jack for audio and trigger I/O.

Software integration

Stored data can be uploaded to the cloud and used with professional software modules: NS1 for workplace noise and NS-ENS for environmental noise analysis.

Details

The Senseca XPT801 sound level meter is available in tailored kits, ranging from basic setups to advanced configurations with application-specific measurement options and specialized software for environmental noise mapping.

The sound level meter offers hardware and firmware upgrades that can be easily installed post-sale, allowing you to extend sound analysis capabilities as your application needs evolve.

Basic Kit

Includes:

  • XPT801 class 1 SLM:
    • Statistic analyzer
    • Event detector with trigger logic
    • Push function
  • NS-Storage cloud service
  • MS801 microphone set:
    • MP801 preamplifier
    • MC801 1/2" free-field 25 mV/Pa microphone
  • WS90 microphone windscreen
  • conformity certificate
  • CPUSB-C USB cable
  • BAG-XPT case

SLM Kit: the Logger SLM

Includes:

  • XPT801 Basic Kit:
    • BAG-8K rugged carrying case replaces BAG-XPT
  • ISO 17025 calibration of XPT801 according to IEC 61672
  • HD2020: Class 1 acoustic calibrator with:
    • ISO 17025 calibration of HD2020 according to IEC 60942

WRK Kit: for Workplace Noise

Includes:

  • XPT801 Basic Kit:
    • BAG-8K rugged carrying case replaces BAG-XPT
  • ISO 17025 calibration of XPT801 according to IEC 61672
  • NS1: "Worker's protection" software module
  • CH20: USB hardware key
  • HD2020: Class 1 acoustic calibrator with:
    • ISO 17025 calibration of HD2020 according to IEC 60942

ENV Kit: for Environmental Noise

Includes:

  • XPT801 Basic Kit:
    • OF1: octave and third-octave spectrum analyzer option
    • BAG-8K rugged carrying case replaces BAG-XPT
  • ISO 17025 calibration of XPT801 according to IEC 61672 and IEC 61260 for both octave and third-octave filters
  • NS-ENS: "Environmental Noise Studio" software module
  • HD2020: Class 1 acoustic calibrator with:
    • ISO 17025 calibration of HD2020 according to IEC 60942

Hardware options

OH3A Monitor expansion module:

Specifically designed for sound monitoring applications, this option provides full connectivity for instrument communication, power supply, and network integration. The option includes:

  • RS232/485 interface
  • 9-24 V input for instrument power supply and battery charging
  • 5 V / 500 mA output for accessories power supply
  • Ethernet connector

OH3H Network module with 4G modem:

For locations without network access points or LAN cables, this option integrates a 4G modem to ensure connectivity.

Firmware options

OF1A class 1 IEC 61260 octave band real-time spectrum analyzer:

  • Octave bands from 32 Hz to 16 kHz

OF1 class 1 IEC 61260 octave and third-octave band real-time spectrum analyzer:

  • Octave bands from 32 Hz to 16 kHz
  • Third-octave bands from 20Hz to 20 kHz

OF4 audio recording:

  • manual
  • on event

OF9 noise ratings calculations:

  • NC, RNCm NR and RC criterions
  • option OF1AE or OF1E is required
