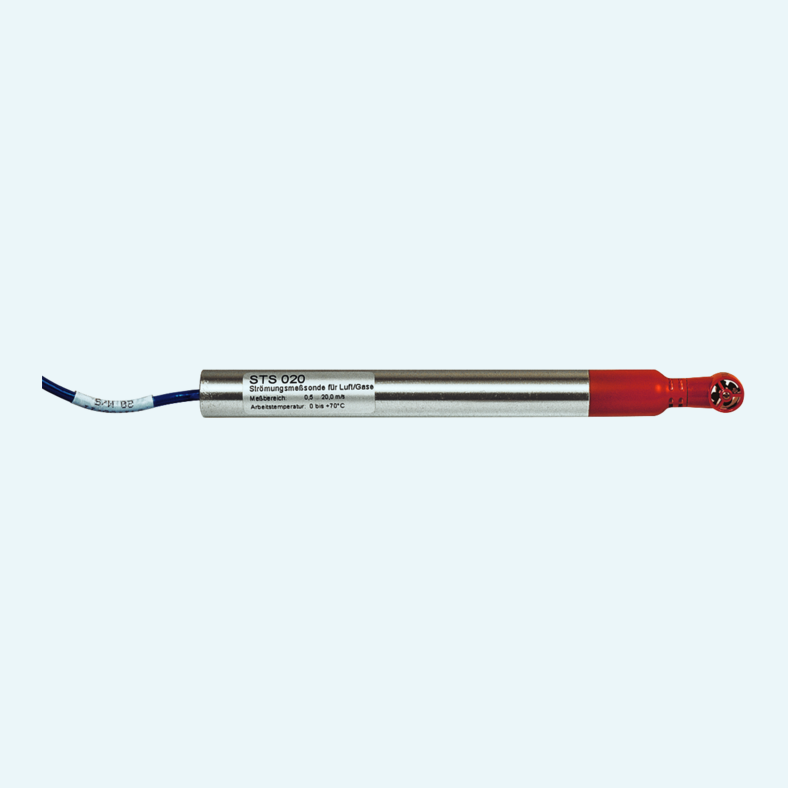

Reliable flow checks in water and air need a probe that is easy to position, simple to service and matched to the medium. The STS 0xx family gives users two focused options: STS 005 for water velocity from 0.05 ... 5.00 m/s and STS 020 for air velocity from 0.55 ... 20.00 m/s.
The windmill-type anemometer design supports practical measurements with a permissible angle flow of ±20° without additional measuring faults. For clear on-site readings, the probes connect to GMH 3330 or GMH 3350 handheld instruments via a 5 m cable with 6-pin Mini-DIN plug.
Maintenance stays straightforward because the snap-on measuring head is exchangeable. If the rotating impeller is damaged, the head can be replaced with the matching STE 005 or STE 020 spare head. With a Ø 11 x 15 mm probe head, Ø 15 mm tube and 165 mm overall length, the probes fit compact measurement points while retaining the insertion opening required for reliable operation.
The probes use a windmill-type anemometer principle for velocity measurement in flowing water or air, depending on the selected model.
A GMH 3330 or GMH 3350 handheld instrument is required to display measured values from the probe.
The measuring head is a snap-on component and can be removed in axial direction for replacement with the matching spare head.
Each probe has an approx. 5 m connection cable with a 6-pin Mini-DIN plug for connection to compatible GMH handheld instruments.
The probe head measures Ø 11 x 15 mm, with a Ø 15 mm tube, 165 mm overall length and Ø 16 mm required insertion opening.
The probes are specified for use from 0 ... +70 °C and 0 ... 100 %RH, with storage temperature from -20 ... +85 °C.
| Type of media |
Gas, Air
|
|---|
| Air speed range |
0.55...20 m/s
|
|---|---|
| Sensor type air speed |
Windmill-type anemometer
|
| Storage temperature |
-20...+85 °C
|
|---|---|
| Operating temperature |
0...70 °C
|
| Operating relative humidity |
0...100 %RH
|
| Cable |
5 m PVC
|
|---|---|
| Connection |
6-pole Mini-DIN
|
| Probe Diameter |
15 mm
|
| Probe length |
165 mm
|
