Ultrasonic level indicator for liquids and bulk materials

Sonicont USF2

Ultrasonic level indicator for level measurement up to 25 m, volume and open-channel flow in liquids, pastes and coarse bulk materials, with TFT-LCD display, 0/4…20mA or 0…10V output and up to four relays.
Product Inquiry

Introduction

Level monitoring becomes easier when display, control and signal processing sit close to the installation point. Designed for ultrasonic sensors, the unit displays, monitors and processes levels in liquids, pastes and coarse bulk materials, and also supports volume measurement and open-channel flow measurement at weirs and channels.

It gives operators a dependable view of the process, with measuring ranges up to 25 m and characteristic deviation of  ≤ ±2 mm or ≤ ±0,2% of the set measuring range. The high-contrast TFT-LCD display offers digital value, manometer, chart and bar graph views, while 3-key operation and clear menu navigation support fast setup on site.

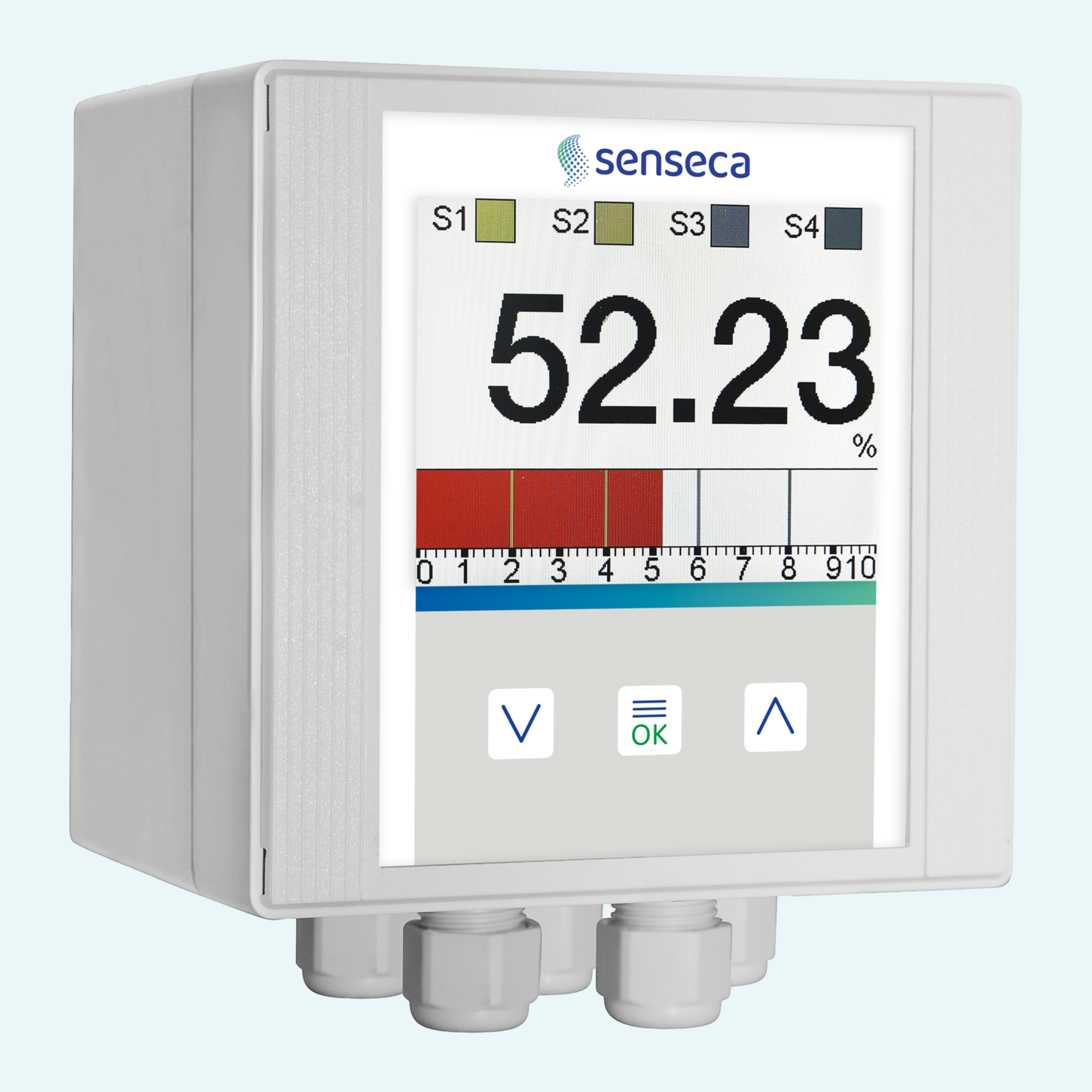

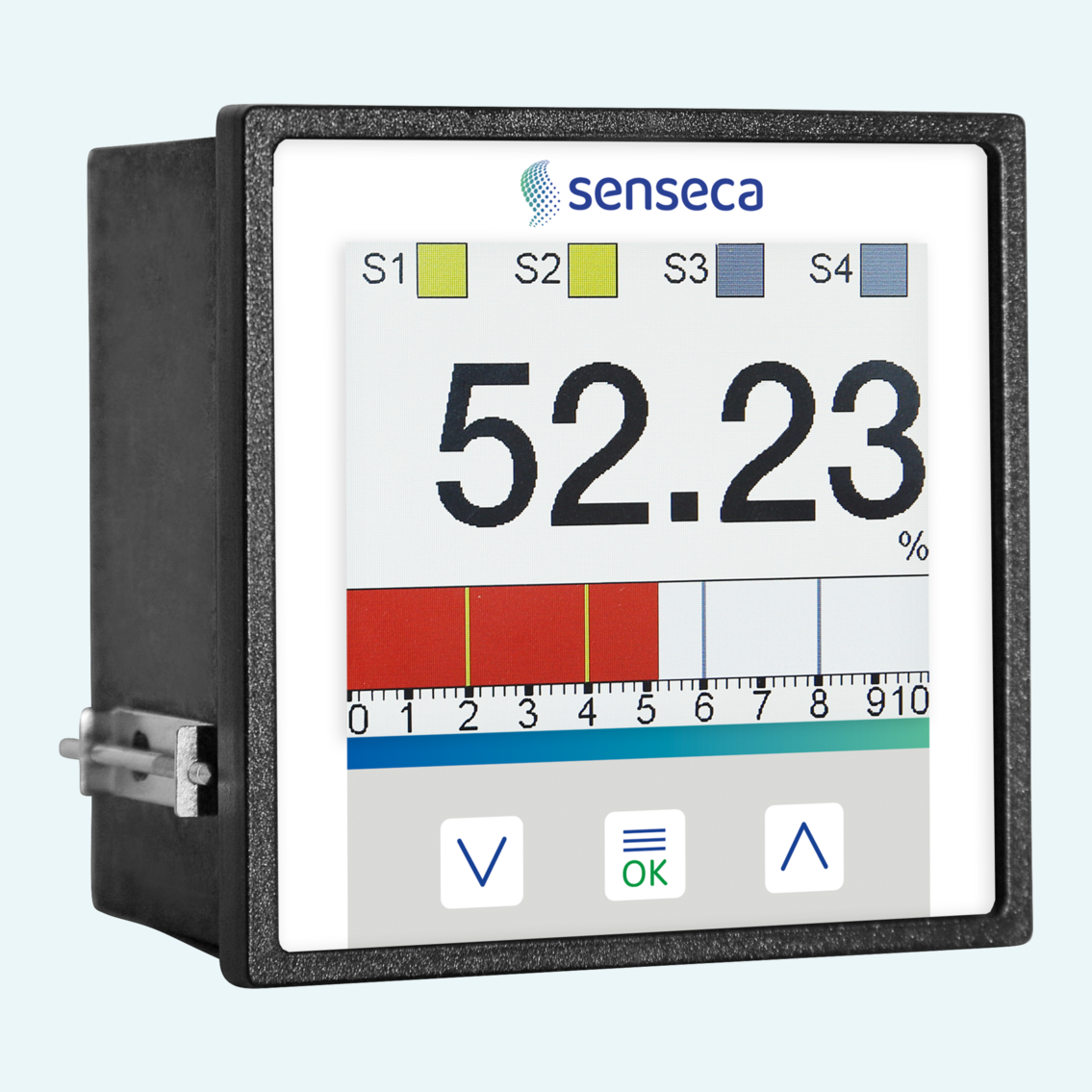

For integration into plant control, the indicator provides 0/4…20mA or 0…10V output, up to four relay switch outputs and four digital inputs depending on configuration. Wall, front panel and DIN-rail enclosure options support different mounting positions; field and DIN-rail versions provide ingress protection (IP65).

Reliable accuracy
Reliable accuracy
Trust level values with characteristic deviation ≤ ±2 mm or ≤ 0.2% of set measuring range.
Broad application fit
Broad application fit
Measures level, volume or open-channel flow in liquids, pastes and coarse bulk materials up to 25 m.
Control-ready outputs
Control-ready outputs
Integrates via 0/4…20mA or 0…10V output, with up to four relay switch outputs.
Fast local operation
Fast local operation
TFT-LCD display and 3-key operation support clear setup and reading directly at the unit.
Long-term recording
Long-term recording
Data logger stores more than 500,000 measuring values with battery powered time stamp.
Protected mounting
Protected mounting
Wall and DIN-rail enclosures provide ingress protection (IP65) for outdoor use.

Features

Display formats

The TFT-LCD display can show the measuring value as a digital value, manometer, chart or bar graph, with device state and operation menu.

Linearization

Predefined curves support volume calculation for horizontal cylindrical and spherical vessels, and flow calculation for Venturi, trapezoidal, rectangle and V-notch weirs.

Switch functions

The relay outputs support hysteresis, window, error indication, impulse and pump functions, including runtime or sequential pump control.

Analog output configuration

The analog output can be set to 4-20mA, 0-20mA or 0-10V, with selectable error behavior and signal inversion.

Data interfaces

USB 2.0 and optional Bluetooth 2.1 + EDR support data transfer; a USB flash drive can connect via Micro-USB plug.

Enclosure variants

The device can be specified for wall mounting, front panel installation or DIN-rail mounting, with matching enclosure materials and protection ratings.

Sensor input

The ultrasonic sensor input supports USG2 020, USG2 050, USG2 080, USG2 150 and USG2 250 sensor types.

Diagnostics and simulation

Diagnostic functions include error memory and system analysis; simulation is available for relay switch outputs and the current/voltage output.
