Small tanks need level monitoring that fits cleanly, installs quickly and remains serviceable. This stainless steel AISI 316 version is designed for reliable liquid level control with one electrical contact in a compact assembly.
The switch supports threaded or flanged mounting, with a 1" UNI 228/1 male thread or double fixing with 2 or 3 holes. Rod lengths from 100 to 500 mm help match different tank depths, while SPST and SPDT contact options allow the electrical function to suit the control task.
Rugged construction and low maintenance are supported by the stainless steel design and hermetic, replaceable electrical contact. The unit operates at -30 / +55 °C and 90% R.H., with a maximum temperature of 105°C, DIN 43650 plug, Viton flat gasket and minimum ingress protection (IP) IP65.
The source lists Ø 30 x 32 mm float versions with P.S. 0,75 or P.S. 0,55.
Total rod length L0 is available from 100 to 500 mm, according to the listed length codes.

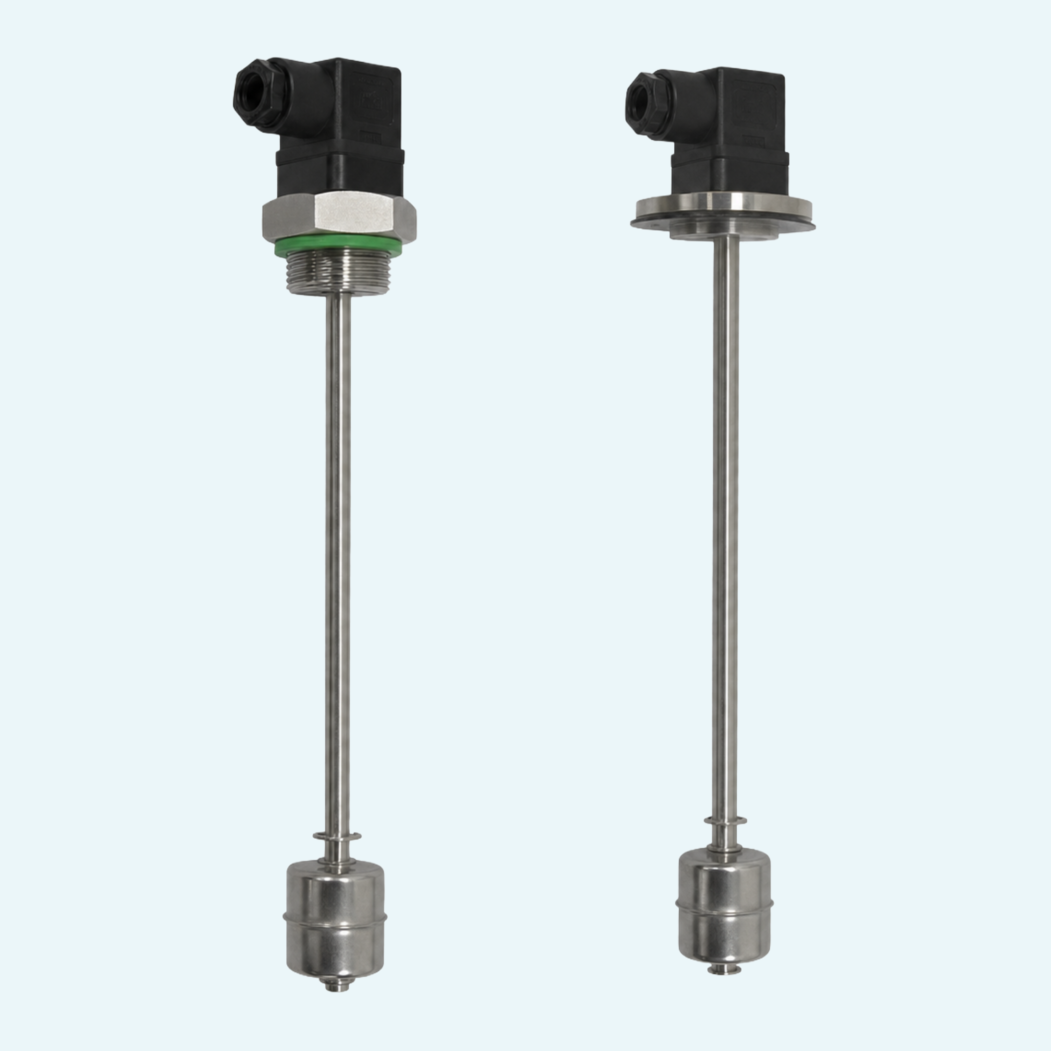

Threaded versions use a 1" UNI 228/1 male thread. Flanged versions use double fixing with 2 or 3 holes.
The switch is available with SPST N.C. or N.A. contact by overturning the float 180°, or with an SPDT changeover contact.
The electrical output is specified as a DIN 43650 plug with IP65 protection.
