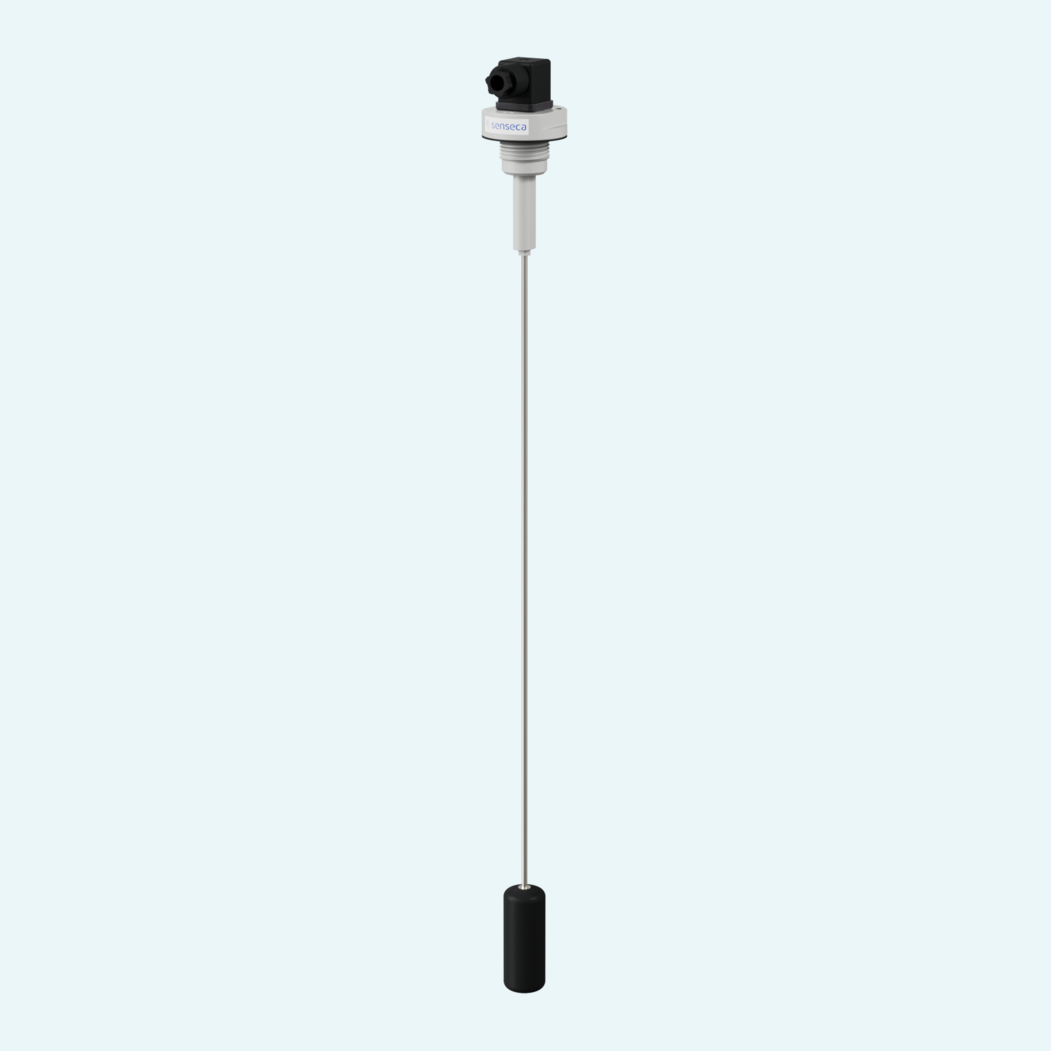

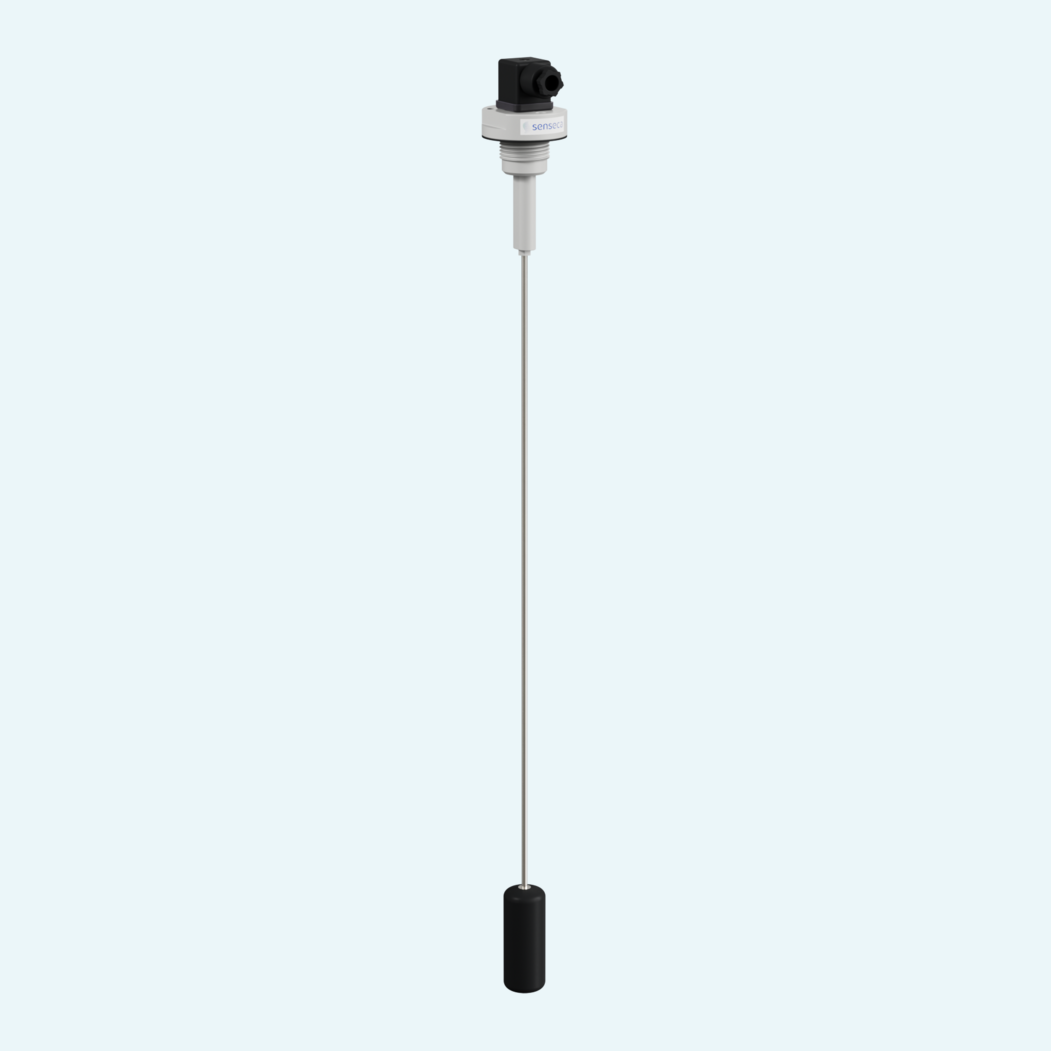

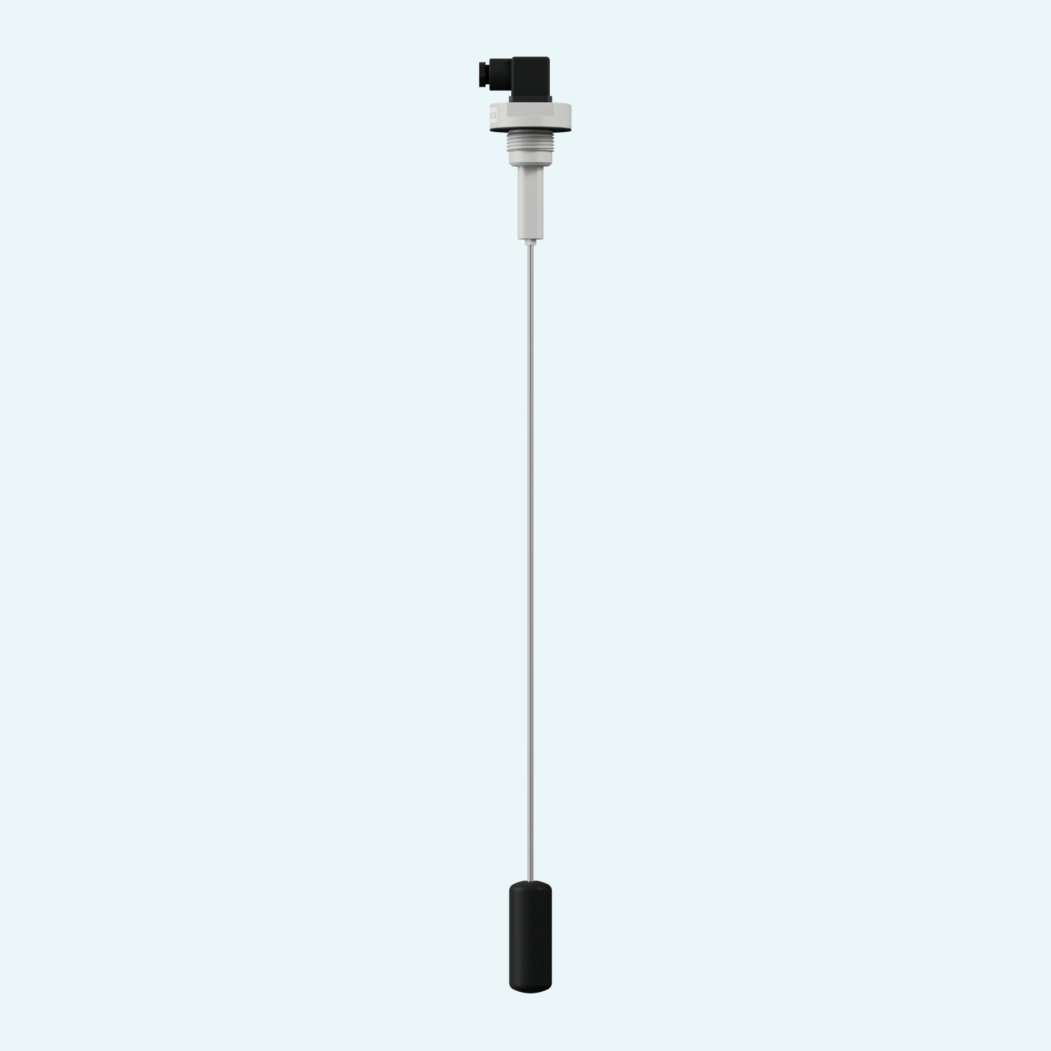

Liquid level monitoring is easier to adapt when the switching point can be set during installation. This adjustable level switch is supplied in 500 or 1000 mm rod lengths, with intermediate lengths obtained by shortening the float rod to the required switch point.
The instrument uses a micro-switch in the head, actuated by hydrostatic thrust on the closed cell float. This supports rugged operation with limited maintenance need, while the SPDT changeover contact provides a practical output for control and alarm functions.
Threaded and flanged mounting options help the switch fit different tank designs. The float is made from SPANSIL butadiene acrylonitrile copolymer closed cells, with an AISI 316 rod and PA66 process connection. A DIN 43650-A plug, NBR flat gasket anti-oil and IP65 protection support reliable use in industrial and civil environments.
A micro-switch in the head of the instrument is actuated by the hydrostatic thrust exerted by the liquid on the float.
The switch is offered in 500 and 1000 mm standard lengths. Intermediate lengths are set by cutting the rod according to the table.
The float is specified as SPANSIL butadiene acrylonitrile copolymer closed cells, with 30 x 77 mm dimensions and S.G. 0,4.
The electrical contact is an SPDT changeover contact with 250Vac and 30Vdc ratings stated in the technical data.
The process connection is listed as threaded or flanged, with 1" UNI 228/1 male thread and double fixing with 2 or 3 holes.
The rod material is AISI 316, and the process connection material is listed as PA66.
