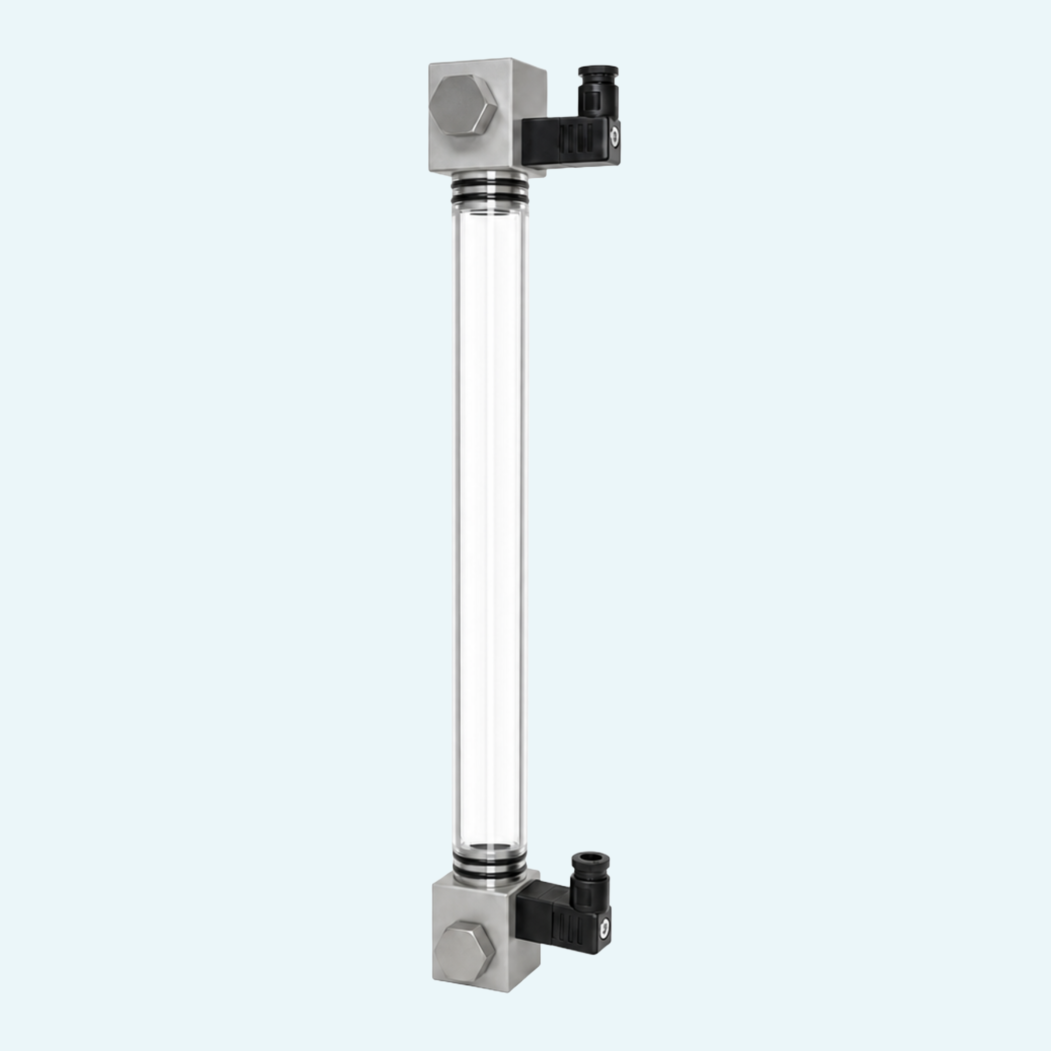

Checking liquid level should be direct, visible and easy to verify on site. This visual level indicator mounts outside the tank with threaded connections and gives a 360° view of the liquid level, helping operators confirm tank status without opening the system.
For process and storage applications using H2O, glycol, gasoline, hydrocarbons, mineral oils, vegetable oils, diesel fuel or ethanol 20%, the series combines visual indication with level switching. A minimum or maximum level switch is included as standard, with minimum and maximum switching available on request.
The rugged construction supports dependable daily use. The pipe is made from acrylic material, with anodized aluminium independent connections, nickel plated brass threaded fittings, NBR sealing OR and a PP float. Mobile terminals help compensate mounting hole distance errors up to 4 mm, simplifying installation on the tank.
The indicator mounts outside the tank by means of threaded connections. The design allows visual monitoring of the liquid level without direct access to the tank interior.
Level switch configuration — The series is equipped with a minimum or maximum level switch. A configuration with both minimum and maximum level switches is available on request.
Mobile terminals allow compensation of mounting hole distance errors up to 4 mm during installation.
The assembly uses anodized aluminium independent connections, a methacrylate pipe, nickel plated brass threaded fittings, NBR sealing OR and a PP float.
The series includes multiple length and mounting distance codes, with other lengths available on request.
Contact versions are defined for minimum and maximum level points, with NO and NC contact status specified in no level condition.
