Signal conversion in control cabinets should be quick to set up and stable in operation. RT500 converts resistance or potentiometer signals into standard industrial current and voltage outputs, making it suitable for automation tasks where analog resistance values need to be integrated into existing systems.
Commissioning is kept practical with Teach-in programming for the initial and final values. The measuring range is selected automatically, while increasing or decreasing output characteristics can be programmed to match the application. The 3-wire input circuit compensates line resistance up to 10 Ω, supporting reliable signal handling across a programmable range from 50 Ω to 100 kΩ.

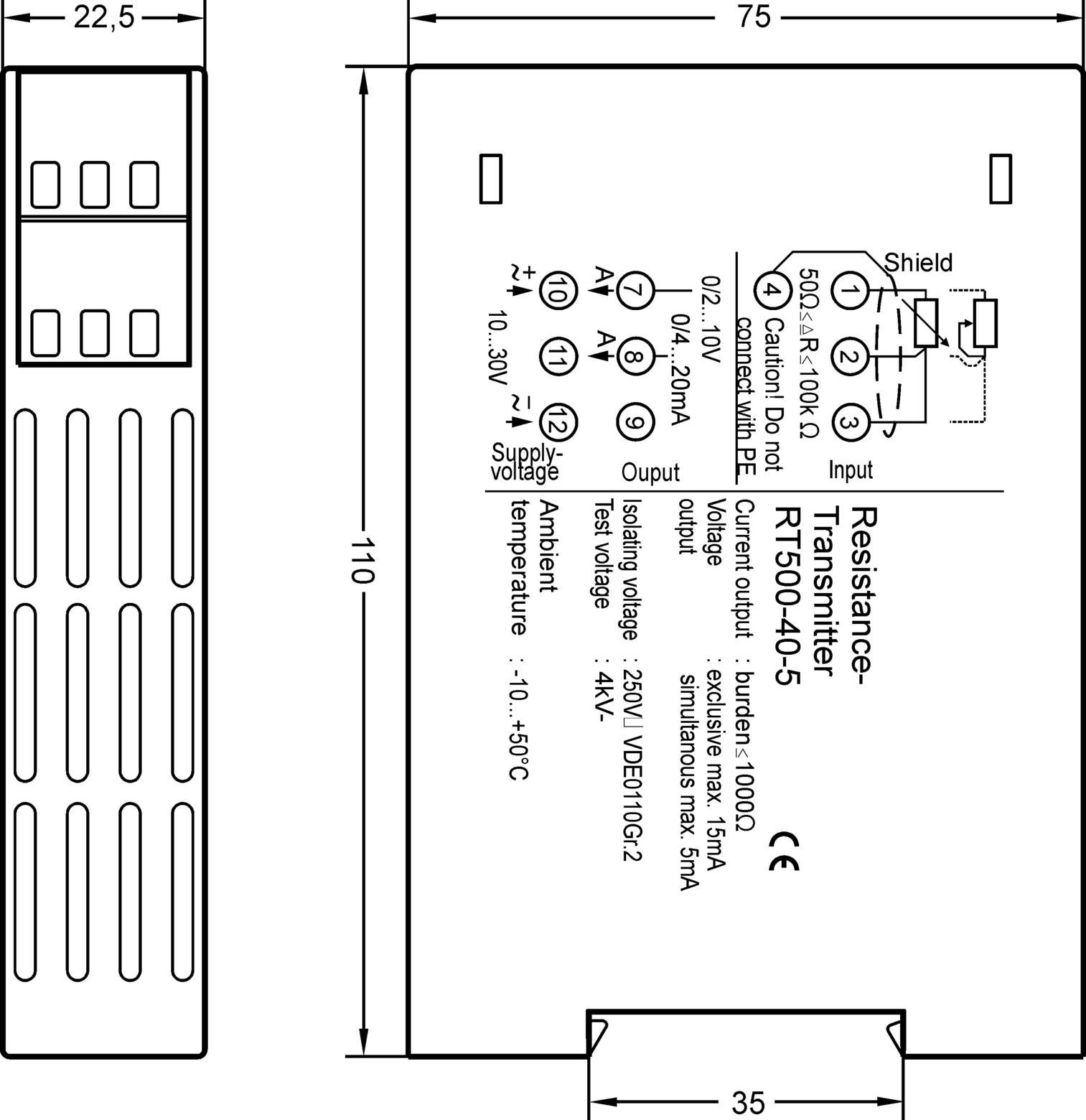

Designed for DIN rail installation, the 22.5 mm polycarbonate case fits compact control panels. Selectable 0/4–20 mA and 0/2–10 V outputs, 250 Hz real-time processing and a rise time below 8 ms provide fast integration into industrial measurement and control systems.
The transmitter converts resistance or potentiometer input signals into linear industrial analog outputs between the programmed minimum and maximum resistance.

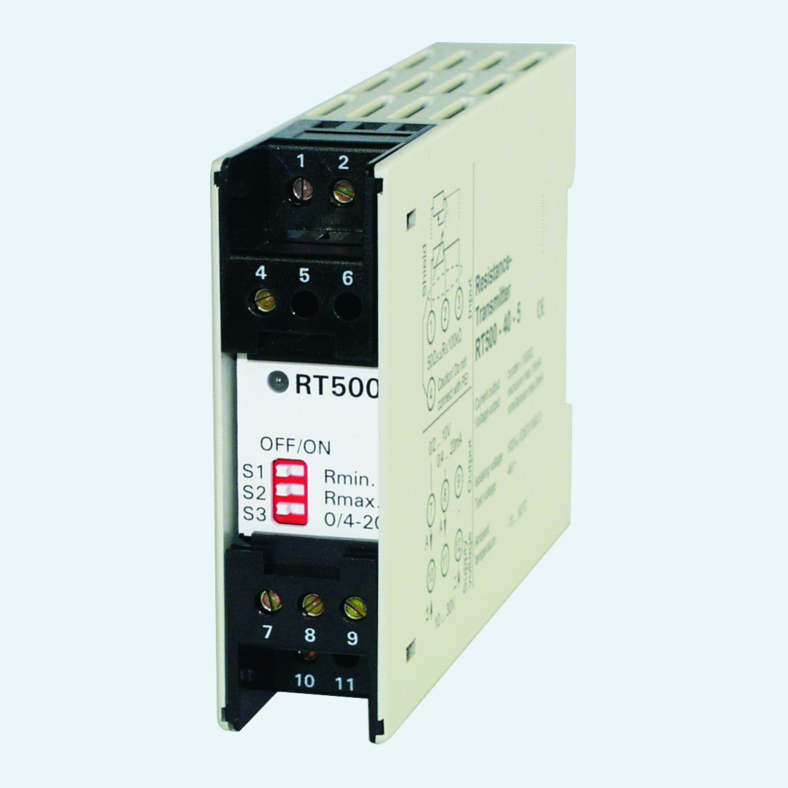

Initial and final values are stored using front-panel switches. The status LED indicates operating mode, stored values, range errors and invalid programming.
The output characteristic can be set as increasing or decreasing to match the required behavior of the connected control or monitoring system.
Current output is selectable as 0/4–20 mA. Voltage output is selectable as 0/2–10 V and operates simultaneously with the current output.

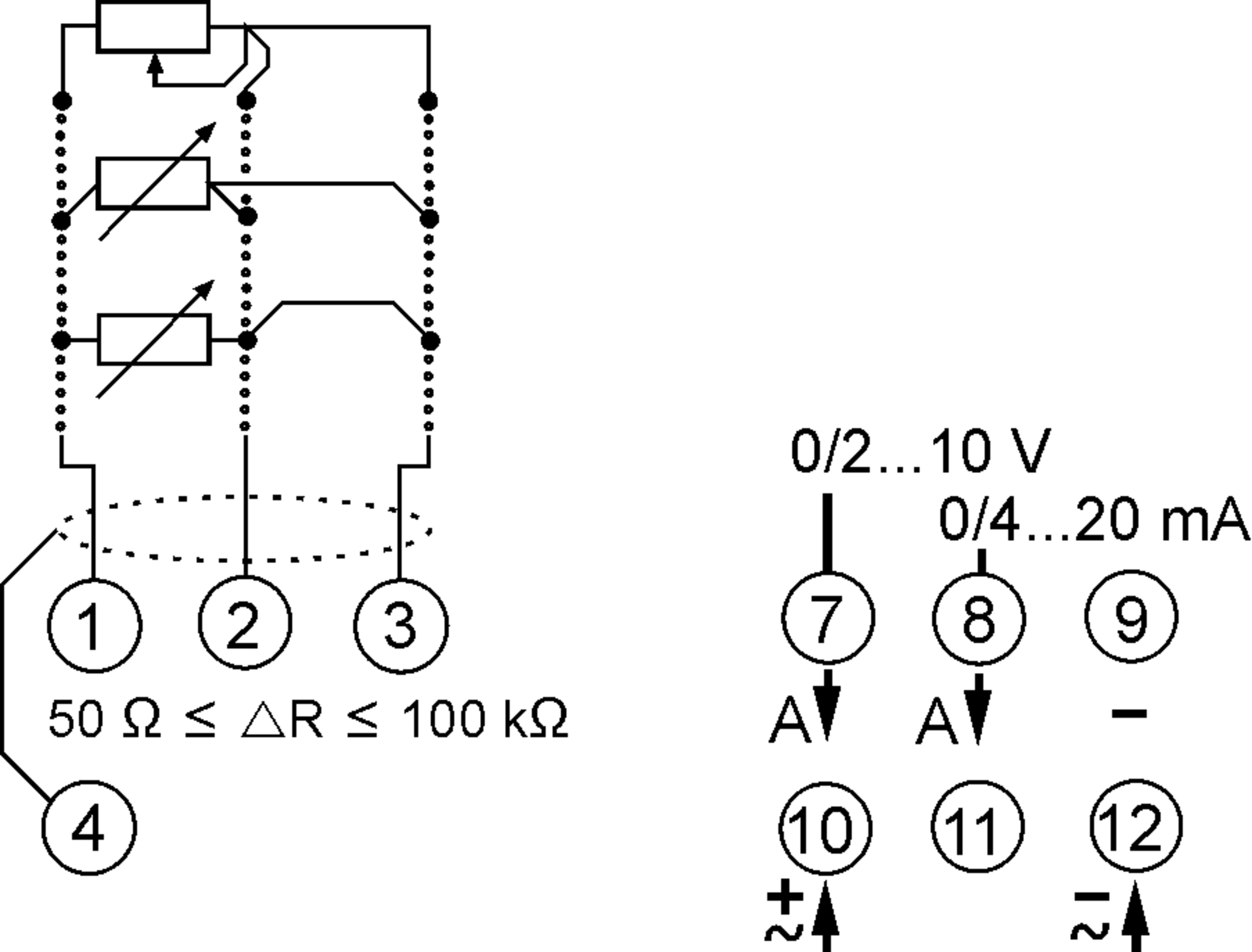

The input supports 2-wire and 3-wire connection. In 3-wire circuits, symmetric line resistance is compensated automatically.
The device is available for 85 ... 265 V AC or 10 ... 30 V AC/DC supply voltage, depending on the selected ordering variant.
A 2-color front LED shows operation, programming status, range exceedance and line break conditions.
| Resistance range |
0.05...100 kΩ
|
|---|
| Degree of protection terminals |
IP20
|
|---|---|
| Operating temperature |
-10...+50 °C
|
| Number of analog outputs (active) |
2,max.
|
|---|---|
| Type of analog output |
4…20 mA, 0…20 mA,0…10 V, 2…10V
|
| Accuracy |
0...0.7 %
|
| Burden (current output) |
1 kΩ
|
| Materials |
Polycarbonate, UL94V-0
|
|---|
| CE Conformity |
Yes
|
|---|
| Electrical connection type |
Terminals
|
|---|
| Auxiliary voltage |
115 V AC, 230 V AC, 24 V DC
For 85 ... 265 V AC: 85…265 V AC For 10 ... 30 V AC/DC: 10…30 V AC/DC |
|---|
