Combined Redox electrode for polluted wastewater media

ORP211

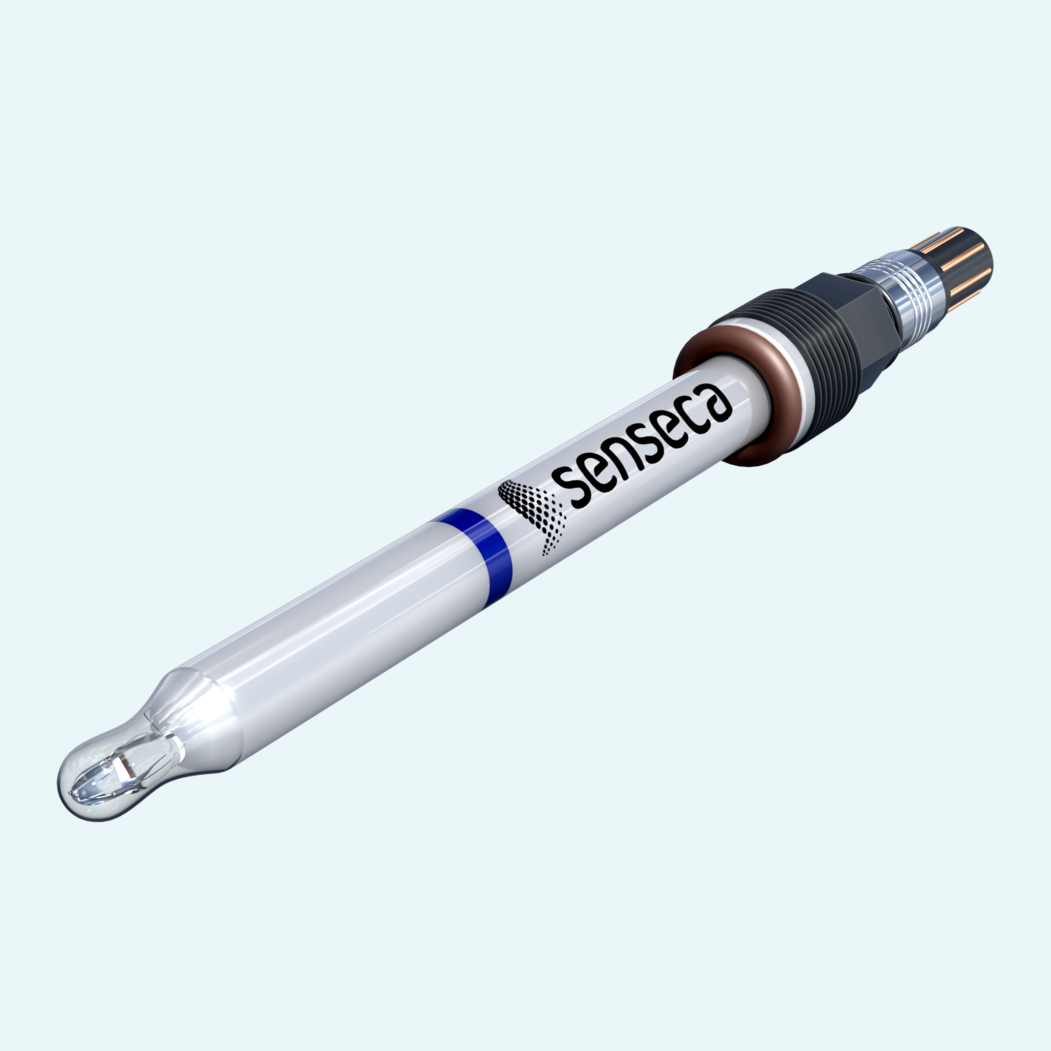

Combined Redox electrode for wastewater treatment and process chemistry, measuring +/-2000 mV in contaminated media with 2 x hole diaphragm, gel electrolyte, PG13,5 process connection and S8 electrical connection.
Product Inquiry

Introduction

Heavily polluted media can challenge conventional Redox electrodes through clogging and unstable reference contact. This combined Redox electrode is designed for contaminated to heavily contaminated media in wastewater treatment and process chemistry.

Its double chamber reference system with extended diffusion range helps increase electrode lifetime, while the electrolyte bridge, gel electrolyte and 2 x hole diaphragm support dependable media contact. The hole diaphragm gives direct access to the media, produces minimal diaphragm interference voltage and cannot clog due to its large diameter.

The electrode measures +/-2000 mV and is specified for -5..+100 °C, up to 5 bar and media conductivity from 150 µS/cm. With 120 mm installation length, 12 mm diameter, PG13,5 process connection and S8 electrical connection, it fits standard process integration.

For polluted media
For polluted media
Designed for contaminated to heavily contaminated wastewater and process chemistry media.
Clog-resistant design
Clog-resistant design
2 x hole diaphragm gives direct media access and cannot clog due to large diameter.
Longer electrode life
Longer electrode life
Double chamber reference system extends diffusion range and electrode lifetime.
Process-ready limits
Process-ready limits
Measures +/-2000 mV at -5..+100 °C, up to 5 bar and from 150 µS/cm.
