Accurate acoustic analysis requires a microphone chain tailored to its environment. The MC800 ½" free-field pre-polarized microphone—the core of the XPT800 set—delivers the precision needed for environmental noise, building acoustics, workplace risk assessments, and industrial product testing.
Featuring 50 mV/Pa sensitivity and full IEC 61094-4 WS2F compliance, the MC800 covers a wide 3.15 Hz–20 kHz frequency spectrum. When paired with the MP800 preamplifier, this high-performance set delivers an exceptional 15 dBA to 140 dBpeak dynamic range, ensuring absolute precision from ultra-quiet baselines to extreme acoustic peaks in Class 1 measurements.
Smart workflow starts at the preamplifier. Thanks to the Sensor Digital Interface, the XPT800 platform instantly recognizes the microphone model and sensitivity. This ensures a faster, error-free setup and guarantees a perfectly identified measurement chain across both field and laboratory environments.
Compliant with strict IEC 61094-4 WS2F specifications, the MC800 ½" free-field microphone pairs perfectly with the MP800 preamplifier to create our standard XPT800 microphone configuration.
Paired with the MP800 preamplifier, the microphone integrates seamlessly into the XPT800 platform via the Sensor Digital Interface, unlocking advanced digital capabilities and automated setup.
With a high sensitivity of 50 mV/Pa and an extensive 3.15 Hz–20 kHz frequency response, this capsule delivers the accurate data resolution required for demanding broadband noise analysis.
Paired with the MP800 preamplifier, the set delivers an exceptional dynamic range from 15 dBA to 140 dBpeak, to meet the most demanding Class 1 measurement requirements.

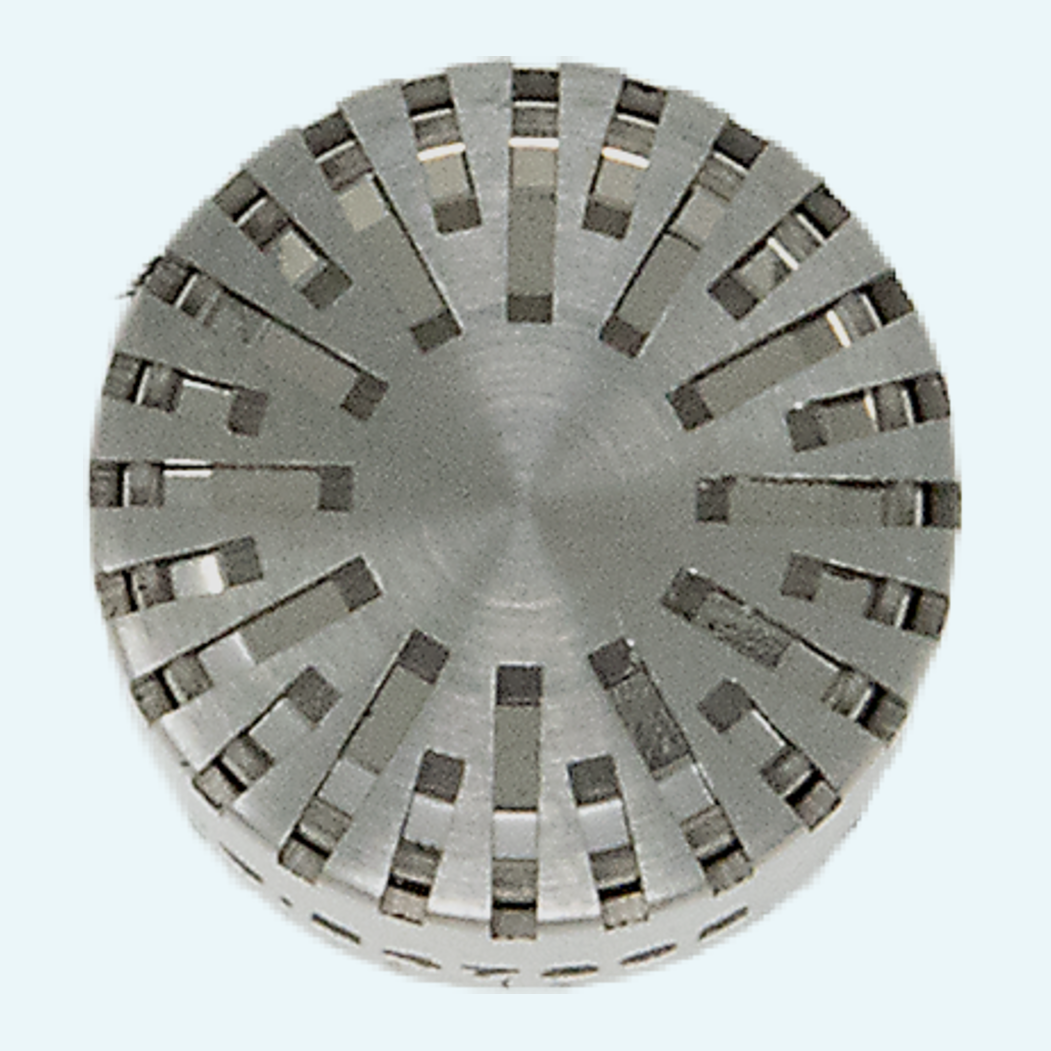

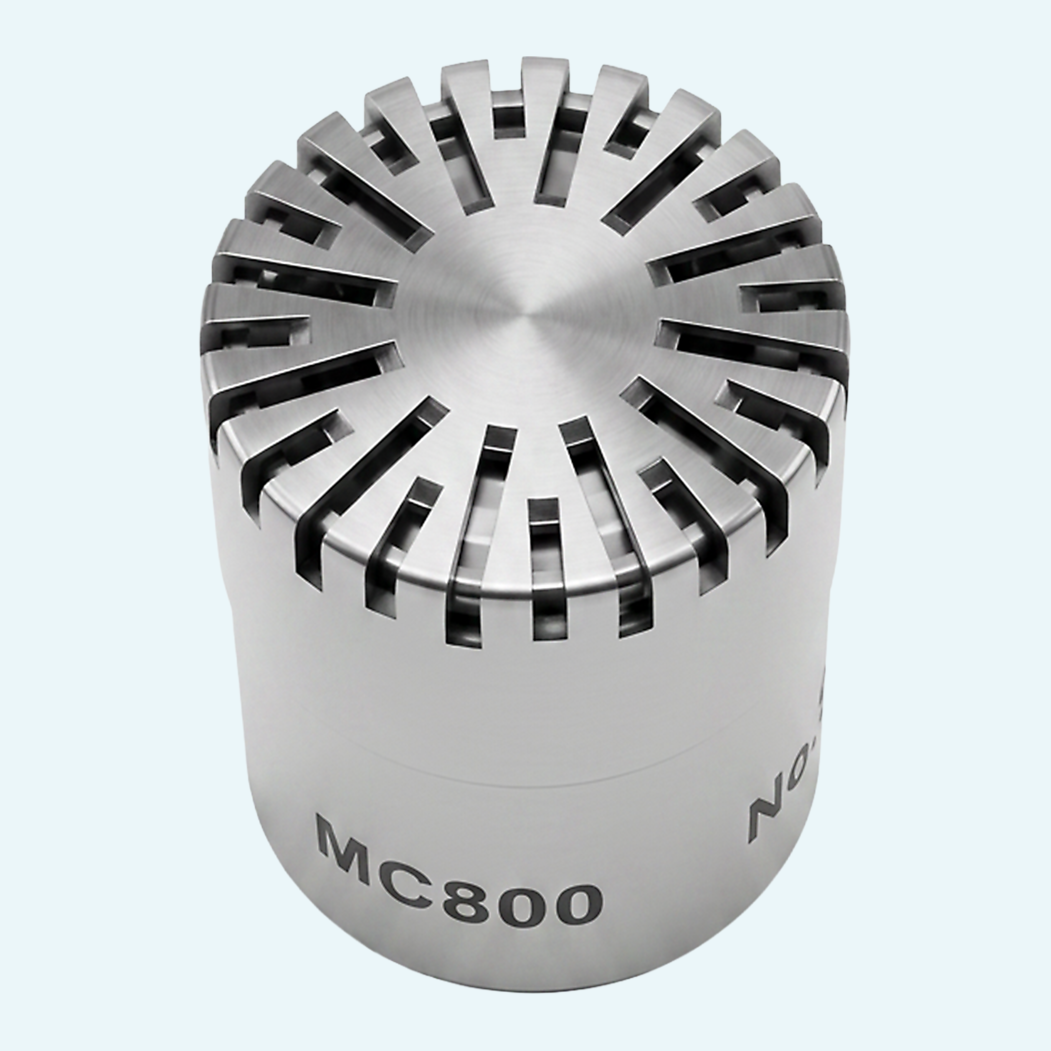

MC800 Pre-polarized condenser microphone, ½”, 50 mV/Pa, free field, 3.15 Hz–20 kHz
