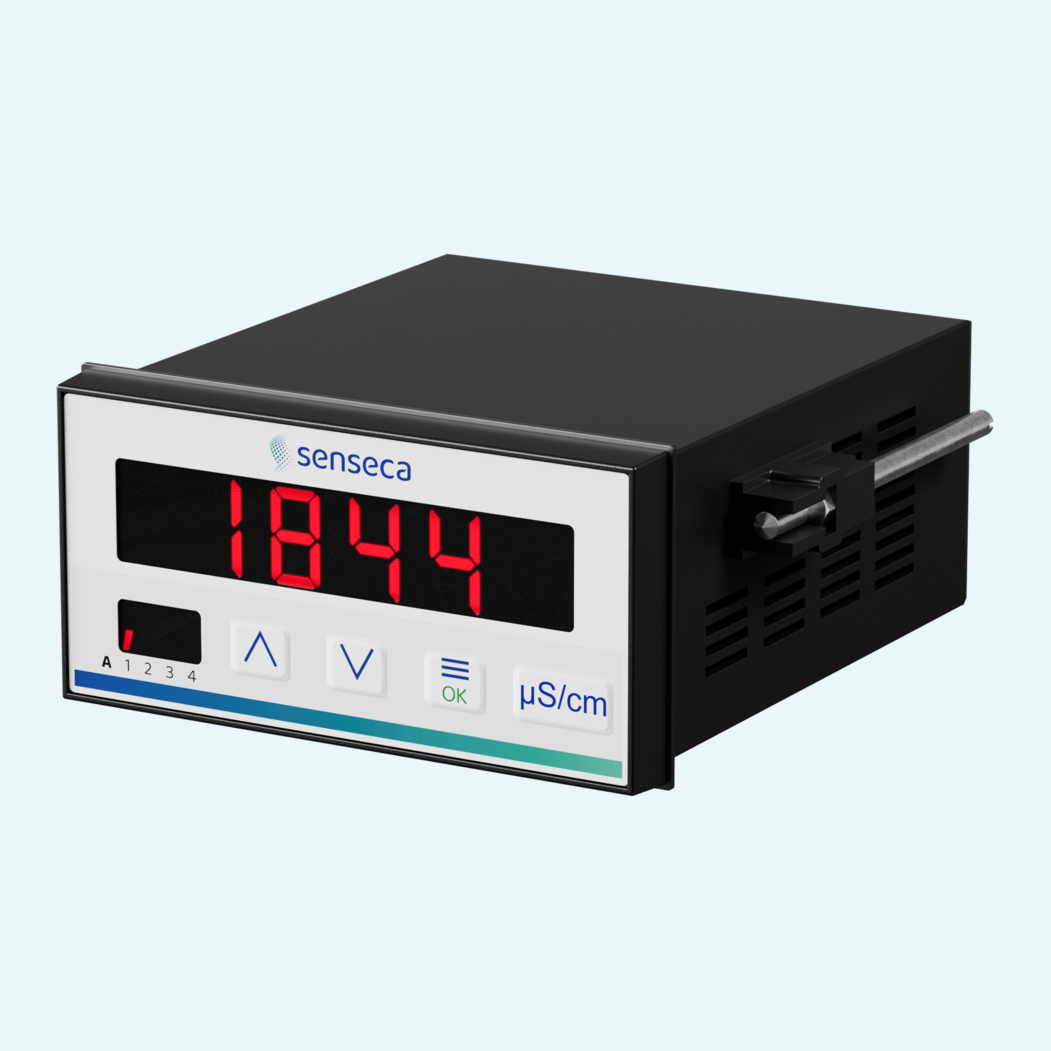

Clear conductivity monitoring starts at the control panel, where liquid purity or concentration must stay visible during operation. This DIN 96x48 mm panel meter measures conductivity in liquids and supports 2-electrode and 4-electrode conductivity cells for ultra-pure water, natural water and concentration-related applications.
The programmable measuring range, from 0..2.000(0) μS/cm up to 0..2000 / 200(0) mS/cm, helps cover many tasks with one device concept. With 4-electrode cells, the instrument supports high accuracy and reduced sensitivity to contamination. Temperature compensation is selectable as non-linear for ultra-pure and natural water or programmable linear from 0.000..9.999 %/K.

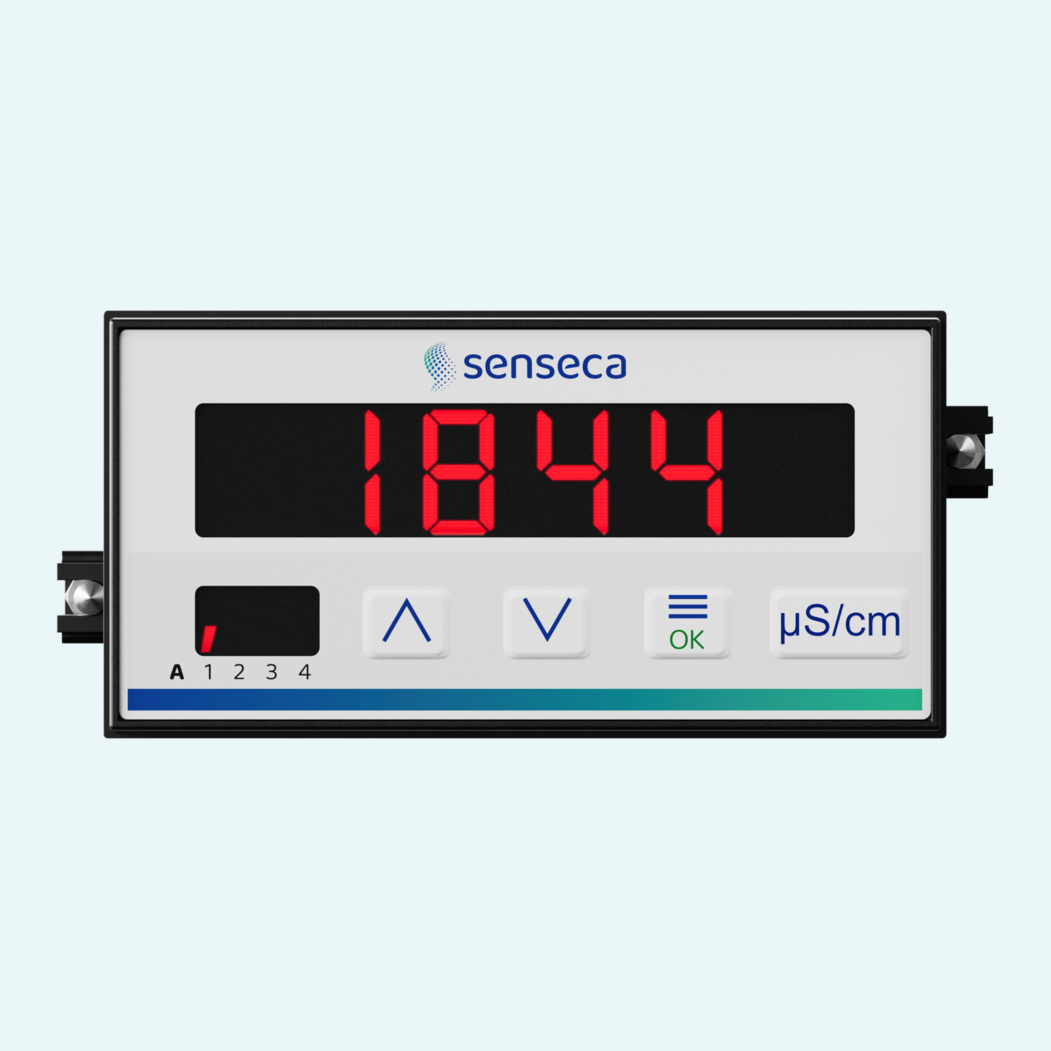

Integration is practical, with a red 14.2 mm LED display, front keypad programming, optional relay or transistor alarm outputs, and isolated active or passive analog outputs. Option 14 supports ultra-pure water monitoring acc. to USP<645>.

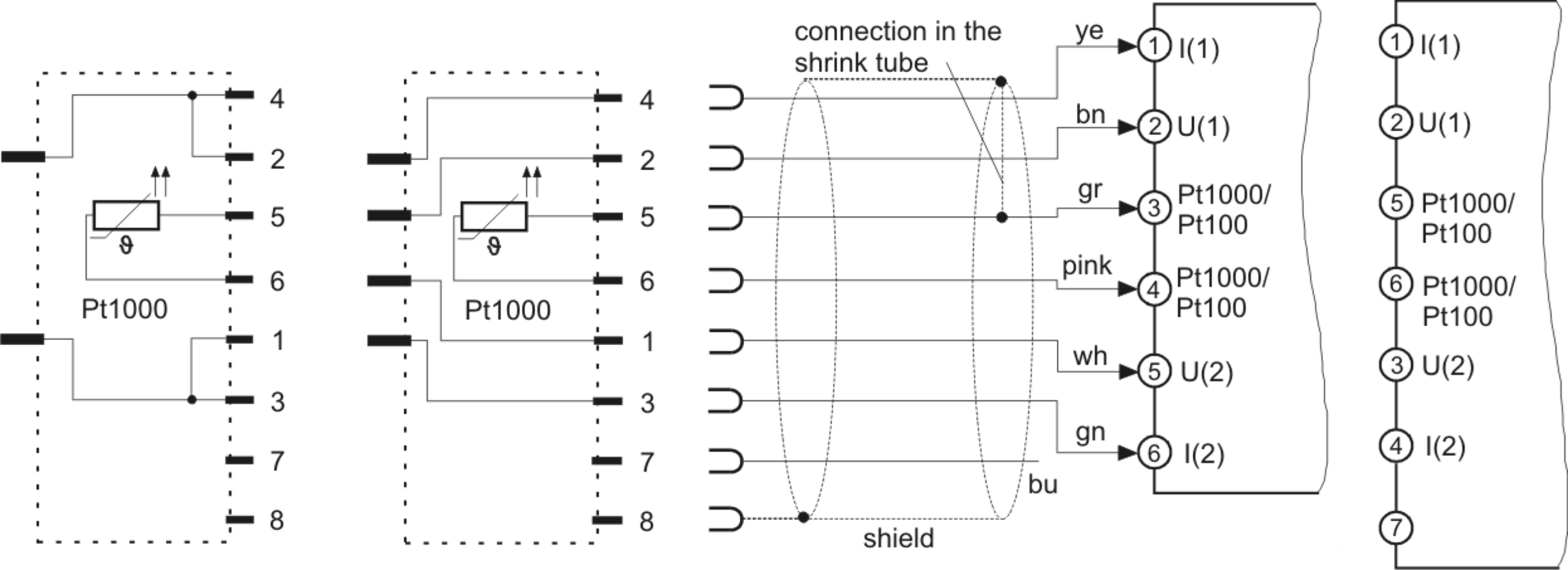

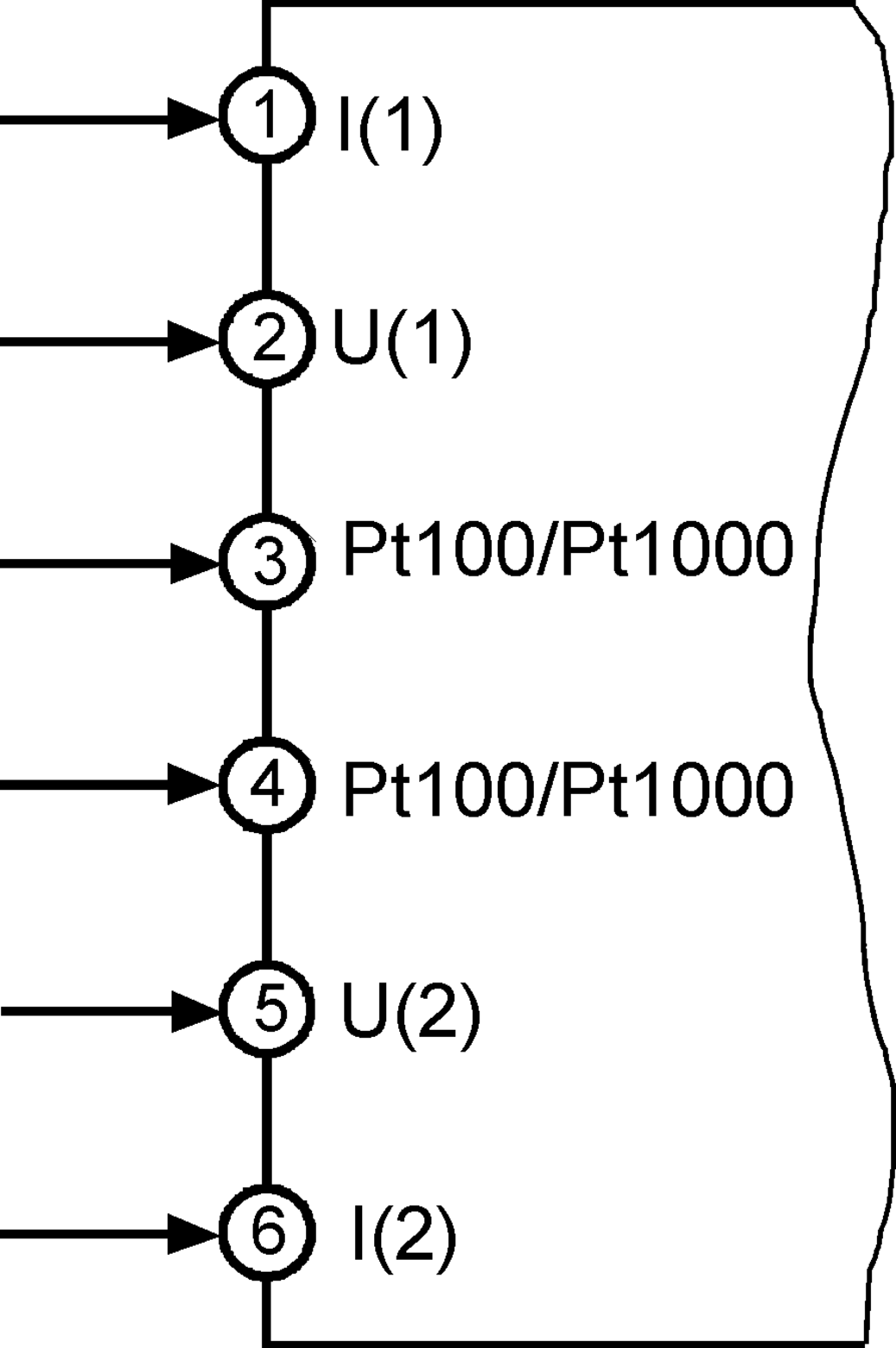

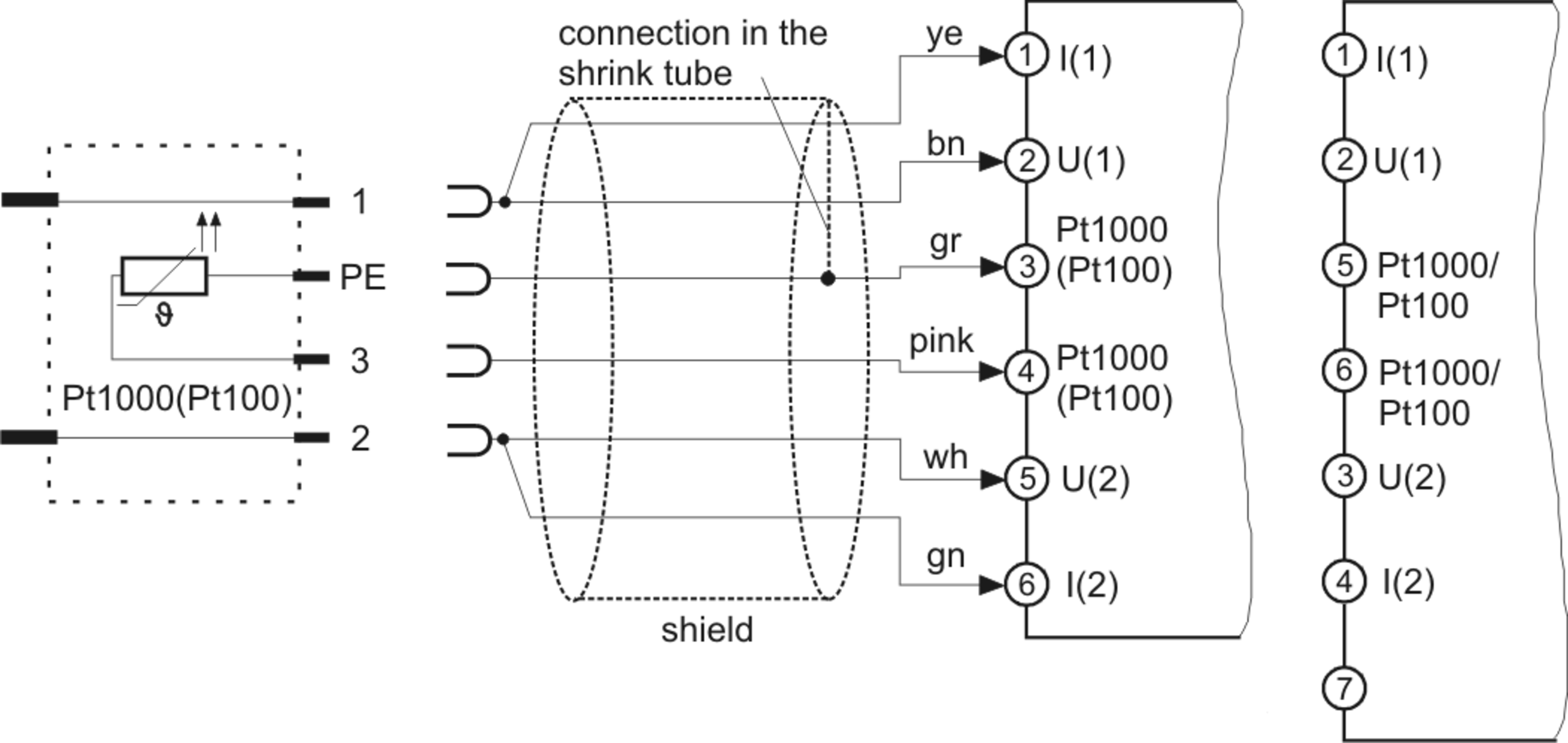

The input supports 2- or 4-electrode conductivity cells, with Pt100 or Pt1000 temperature compensation depending on the selected version.
The device provides non-linear compensation for ultra-pure and natural water, or a programmable linear characteristic from 0.000..9.999 %/K.
Parameters are set via the front-side membrane keypad, including measuring range, output behavior and alarm switching functions.

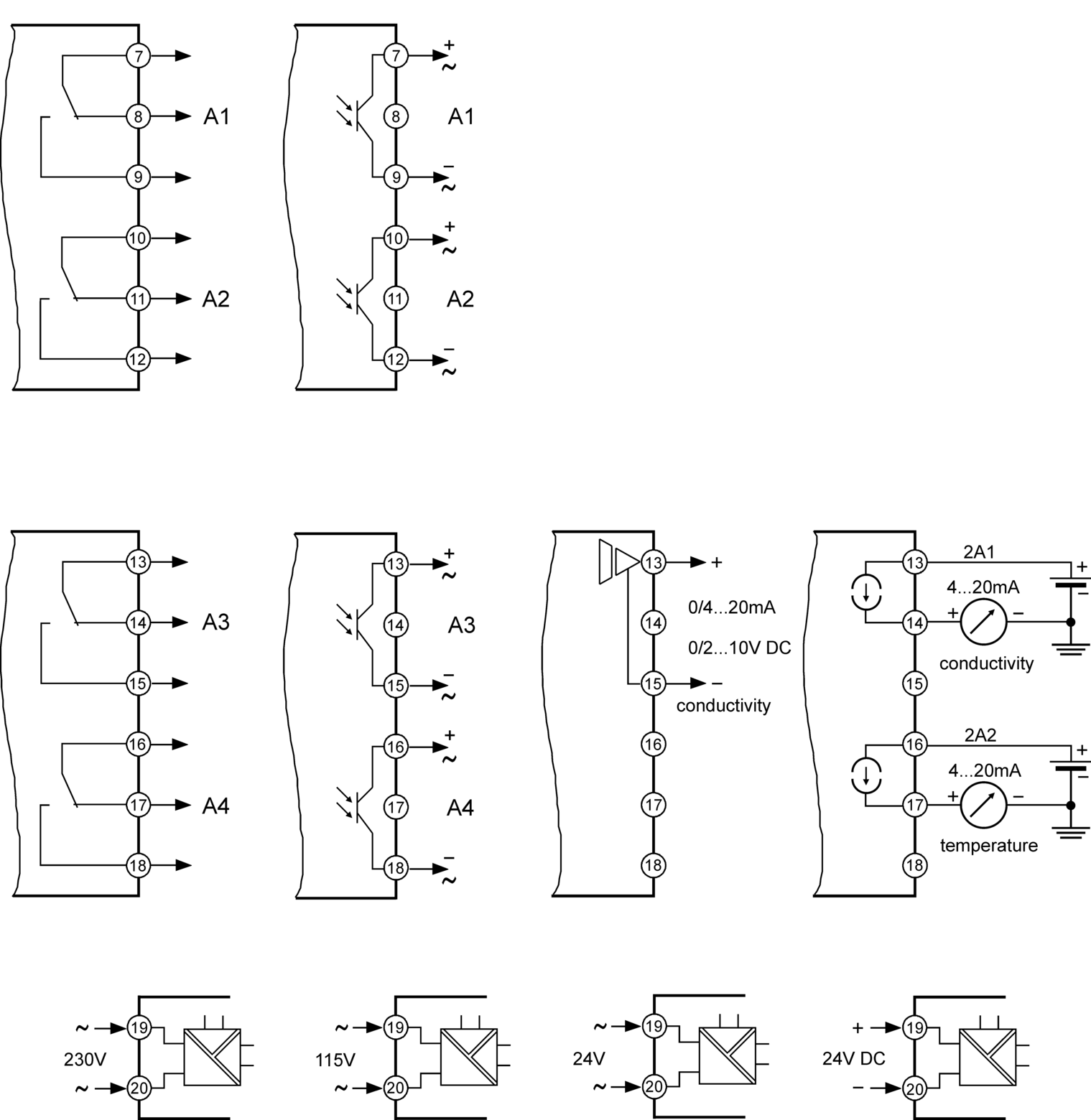

Up to four alarm outputs can be configured as relay or transistor outputs, with programmable minimum or maximum switching performance.
The active analog output provides isolated 0/4..20 mA or 0/2..10 V DC. The passive version provides two isolated 4..20 mA outputs for conductivity and temperature.

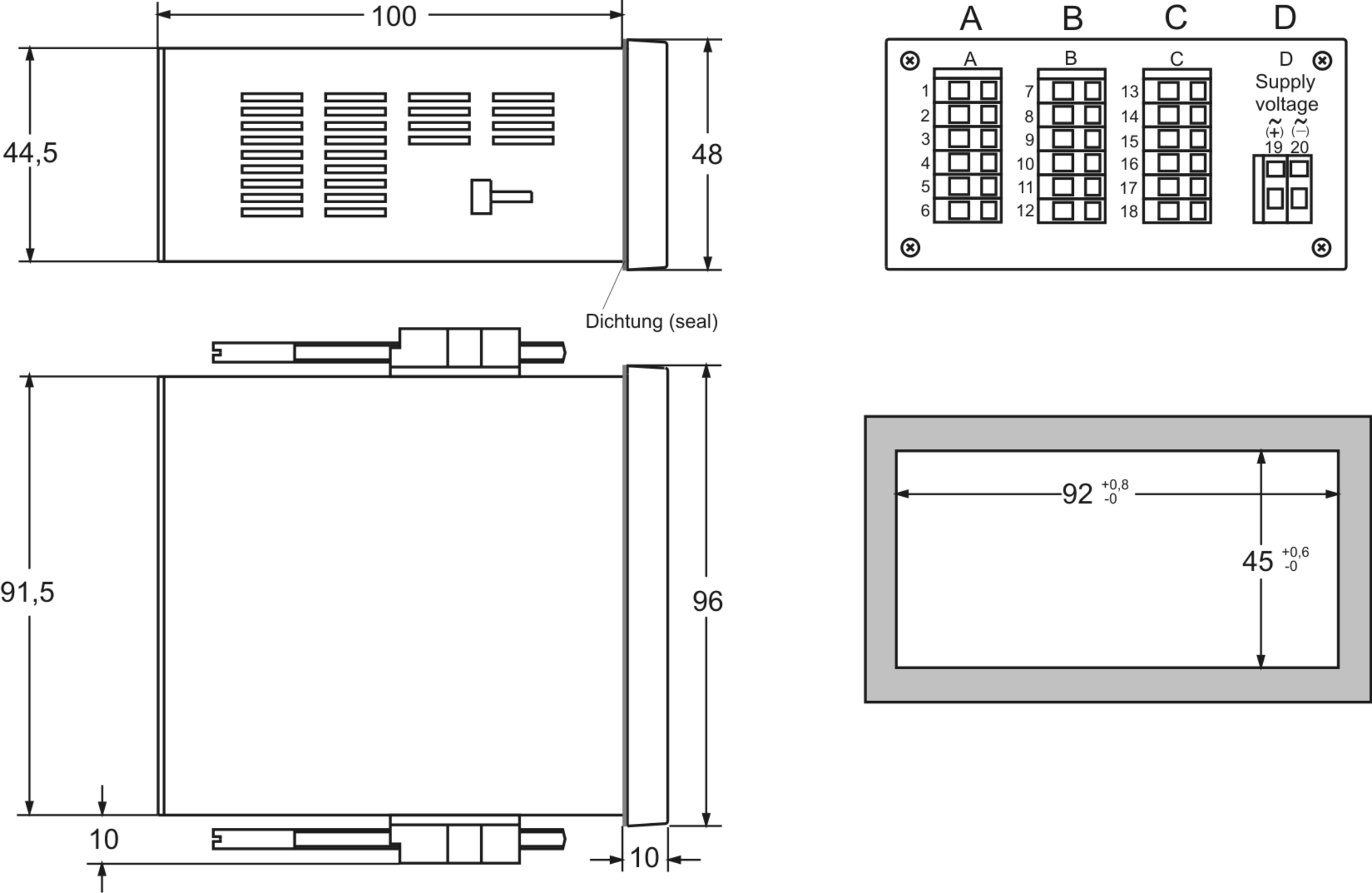

The panel mounting case uses PA6-GF material with UL94V-0 rating, front dimensions of 96x48 mm and a mounting depth of 100 mm.
Option 01 adds min- and max-peak hold for displaying stored peak readings during operation.
| Conductivity range, max |
0...2000 mS/cm
|
|---|---|
| Conductivity range, min |
0...2 µS/cm
|
| Temperature compensation |
non linear for ultra pure water and natural water or linear (adjustable from 0.000..9.999 %/K)
|
| Accuracy Conductivity |
0.5 % OR
|
| Temperature sensor |
Pt100, Pt1000
|
| Temperature range |
-50...+200 °C
|
| Accuracy temperature |
±0.2 °C
|
| Degree of protection front |
IP65
|
|---|---|
| Degree of protection terminals |
IP20
|
| Operating temperature |
-10...+55 °C
|
| Number of analog outputs (active) |
1,max.
|
|---|---|
| Type of analog output |
2-Wire,0…20 mA, 4…20 mA,0…10 V, 2…10V
|
| Temperature coefficient |
0.01 %/K
|
| Accuracy |
0.1 %
|
| Burden (current output) |
≤ 500 Ω
|
| Load (Voltage Output) |
> 500 Ω
|
| Number of analog outputs (passive) |
2,max.
|
|---|---|
| Auxiliary voltage, analog output (passive) |
5...30 V
|
| Burden, external |
RA[Ω] ≤ (supply - 5 V) / 0.02 A
|
| Dimensions |
96 mm x 48 mm x 100 mm
|
|---|---|
| Materials |
PA6-GF, UL94V-0
|
| Mounting |
96x48 mm
|
| CE Conformity |
Yes
|
|---|
| Electrical connection type |
Terminals Clamp terminals, 2 mm² single wire, 1,5 mm² flexible wire, AWG14
|
|---|
| Auxiliary voltage |
24 V DC, 24 V AC, 230 V AC, 115 V AC
For 230 V AC ±10 % 50 ... 60 Hz: 230 V AC For 24 V DC ±15 %: 24 V DC |
|---|---|
| Power consumption |
max. 3.5 VA, 5 VA with analog output
|
| Protection class |
III
|
| Degree of pollution |
2
|
| Rated voltage |
250 V AC between nput/output/supply voltage
|
| Test voltage |
4 kV DC
|
| Auxiliary voltage tolerance |
For 230 V AC ±10 % 50 ... 60 Hz: ± 10 %
For 24 V DC ±15 %: ± 15% |
| Type of switching output |
Relais, Transistor,SPDT
|
|---|---|
| Contact rating relay AC |
< 2 A < 250 VA < 250 V
|
| Contact rating relay DC |
< 2 A < 50 W < 300 V
|
| Number of switching outputs |
4,max.
|
| Output rating transistor |
100 mA,35 V
|
| Short circuit proof |
Yes
|
| Accuracy indication |
±2 Digit
|
|---|---|
| Resolution |
2000(0) digit with leading zero supression
|
| Display type |
LED
|
| Type of controls |
Button
|
| Description |
7-segment red LED main (14.2mm) and parameter/output display (7mm)
|
| Probe length |
For 100 mm: 100 mm
|
|---|
