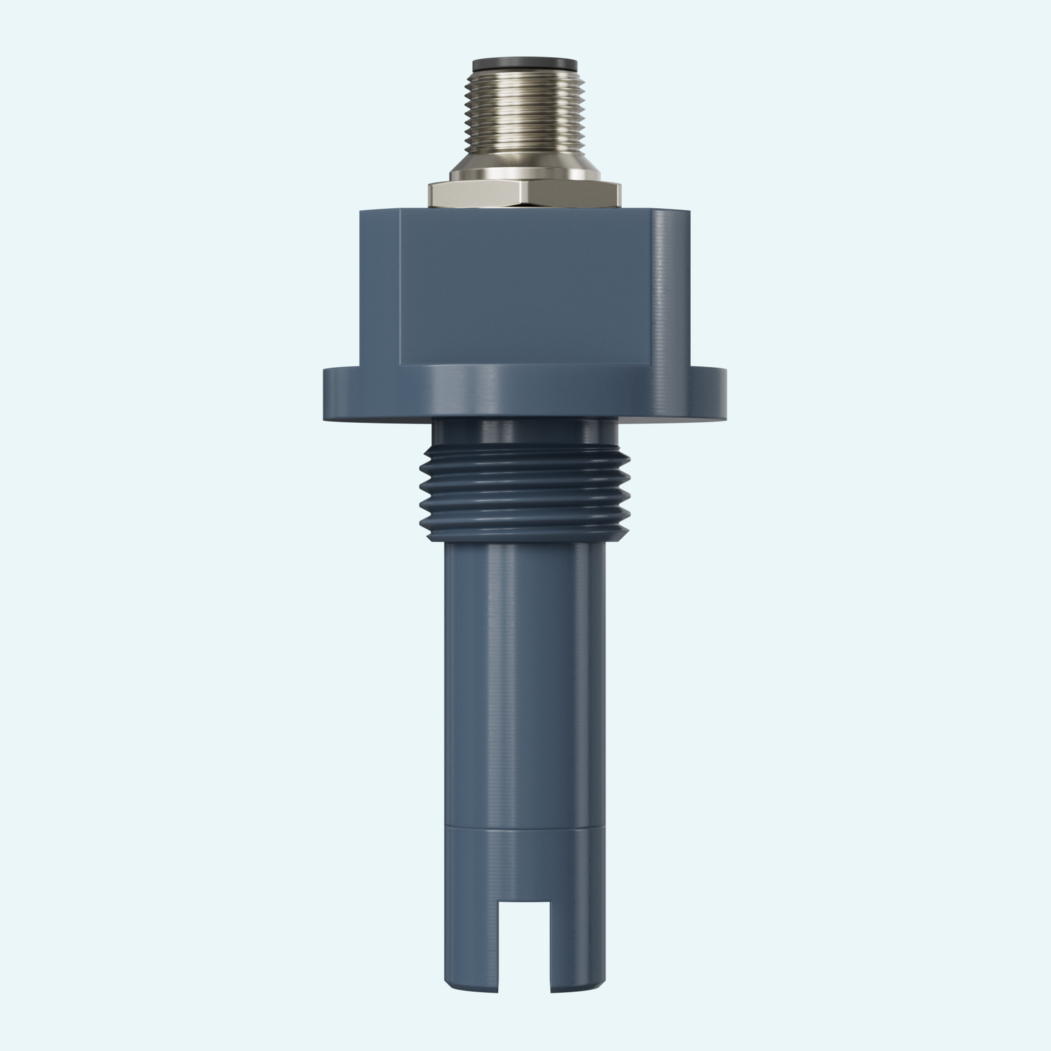

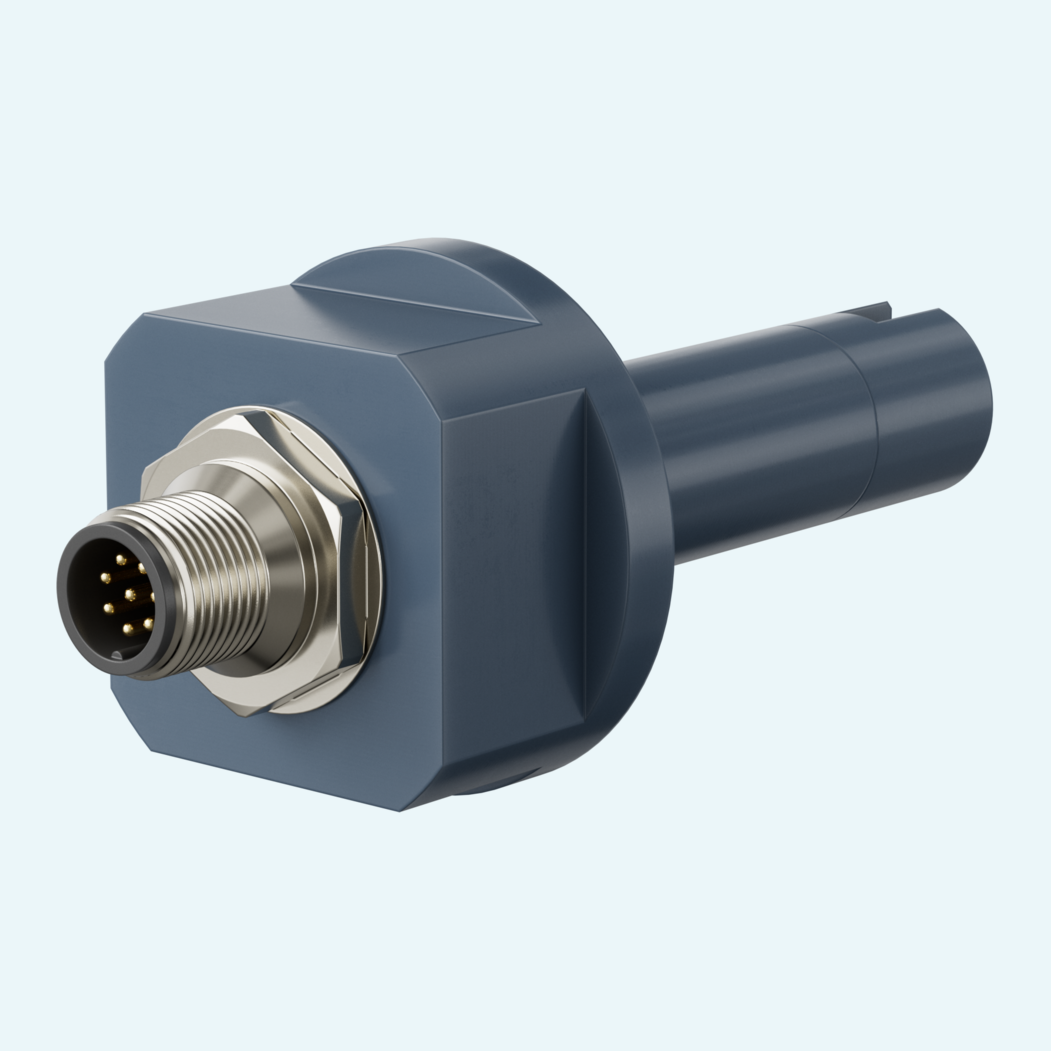

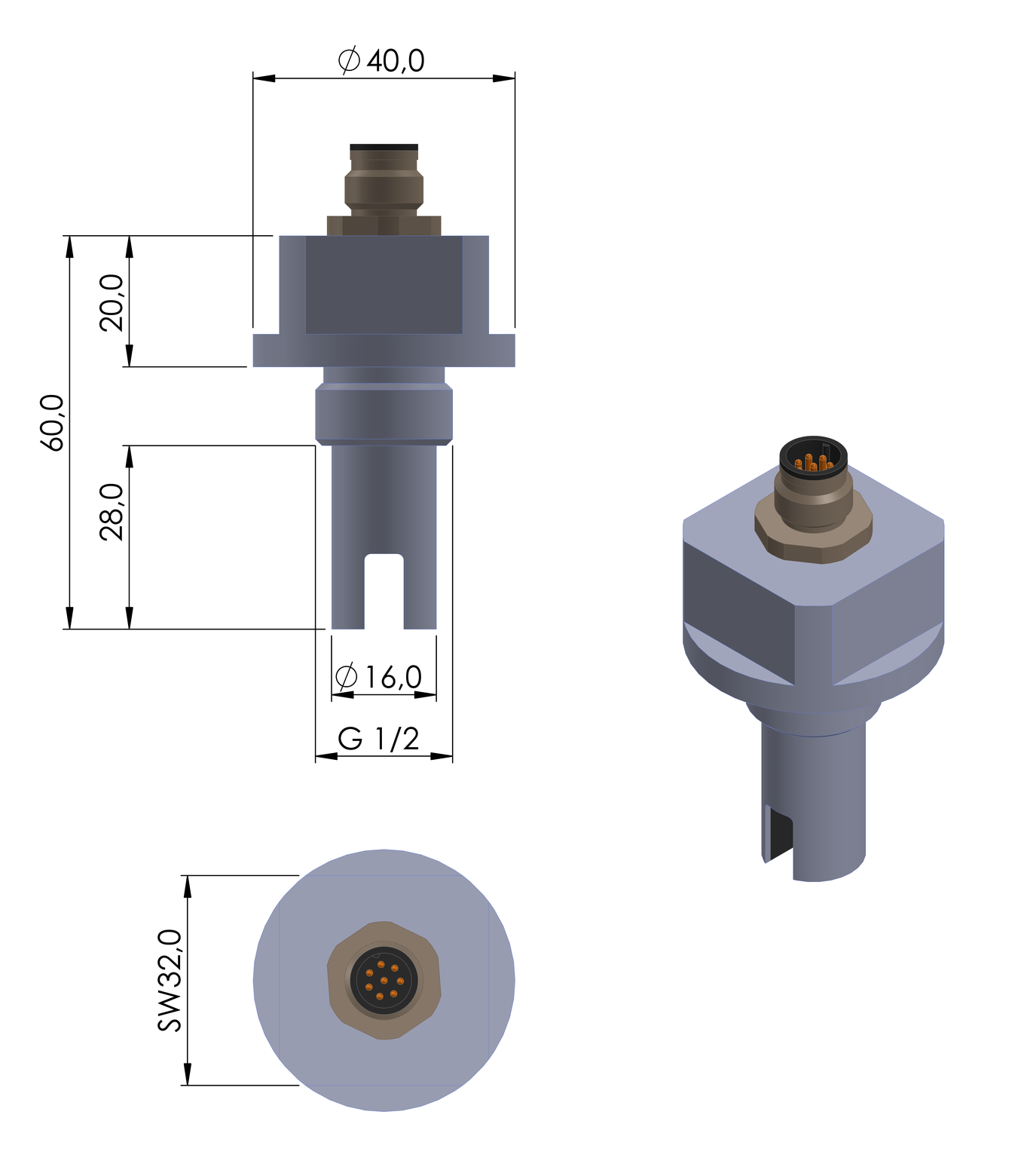

Compact pipe installations need conductivity measurement that fits directly into the process and keeps readings stable across changing conditions. LF4613 is a 4-electrode screw-in cell with pipe thread according to DIN ISO 228, designed for measuring ranges from 0..20 µS/cm up to 0..200 mS/cm.
The 4-electrode measuring principle helps protect measurement quality by preventing influence from polarization effects and line resistance. Its insensitive behavior against soiling supports dependable operation where deposits can affect conventional cells.
The cell is built for process temperatures from 0..60 °C and process pressure up to max. 16 bar at 22 °C. PVC-U acc. to DIN 8061/8062 and graphite electrodes form the process material, while integrated Pt1000 temperature measurement according to DIN IEC751, Class A, adds temperature capture in the same assembly. An 8-pole round connector plug M12x1 with ingress protection IP67 supports field-ready electrical connection.
| Pressure rating |
16 bar max.
|
|---|---|
| Media temperature |
0...60 °C
|
| Cell constant |
0.4 1/cm exact cell constant labeled on the type plate
|
|---|---|
| Conductivity range, min |
0...20 µS/cm
|
| Conductivity range, max |
0...200 mS/cm
|
| Temperature sensor |
Pt1000, Class A
|
| Degree of protection terminals |
IP67
|
|---|
| CE Conformity |
Yes
|
|---|
| Electrical connection type |
8 pole round connector plug M12x1
For 8-pin round plug connector M12x1 IP67: M12 8-pole circular connector |
|---|---|
| Material |
Brass nickel-plated
For [03] 8-pin stainless steel round plug connector: Stainless Steel For 8-pin round plug connector M12x1 IP67: Brass nickel-plated |
| Wetted parts |
PVC-U, Graphite
|
|---|---|
| Tightening torque |
3 N·m
|
| Process connection |
For Cylindrical thread G ½ A: G ½"A
For Cylindrical thread G ¾ A: G ¾"A |
