Compact DN 10 flow applications need a sensor that fits tight pipe layouts and still delivers dependable measurement values. This paddlewheel flow meter measures water and other low-viscosity liquids in three ranges: 0.1...1.5, 0.2...10.0 and 0.4...12.0 l/min. No inlet or outlet runs are required, which helps reduce installation effort in compact industrial assemblies.
The rotor speed changes linearly with the flow rate and is detected by a Hall sensor outside the flow chamber. A PVDF rotor with magnets, a break-resistant ceramic axis and special plastic bearings give the measuring element a durable mechanical design. The DN 10 version is available with G 3/8 female thread, G 3/8 A male thread or Ø11 hose nozzle connection.
System connection is flexible for machine and plant integration. IO-Link supports configuration and measured value readout, while the analog output can be configured for current or voltage ranges. The switching output can also operate as a limit switch, frequency output, pulse output or preset counter signal.
The flowing medium rotates a magnet-equipped PVDF rotor. A Hall sensor outside the flow chamber detects rotor speed for flow measurement.
The DN 10 version is available in three measuring ranges for water: 0.1...1.5 l/min, 0.2...10.0 l/min and 0.4...12.0 l/min.

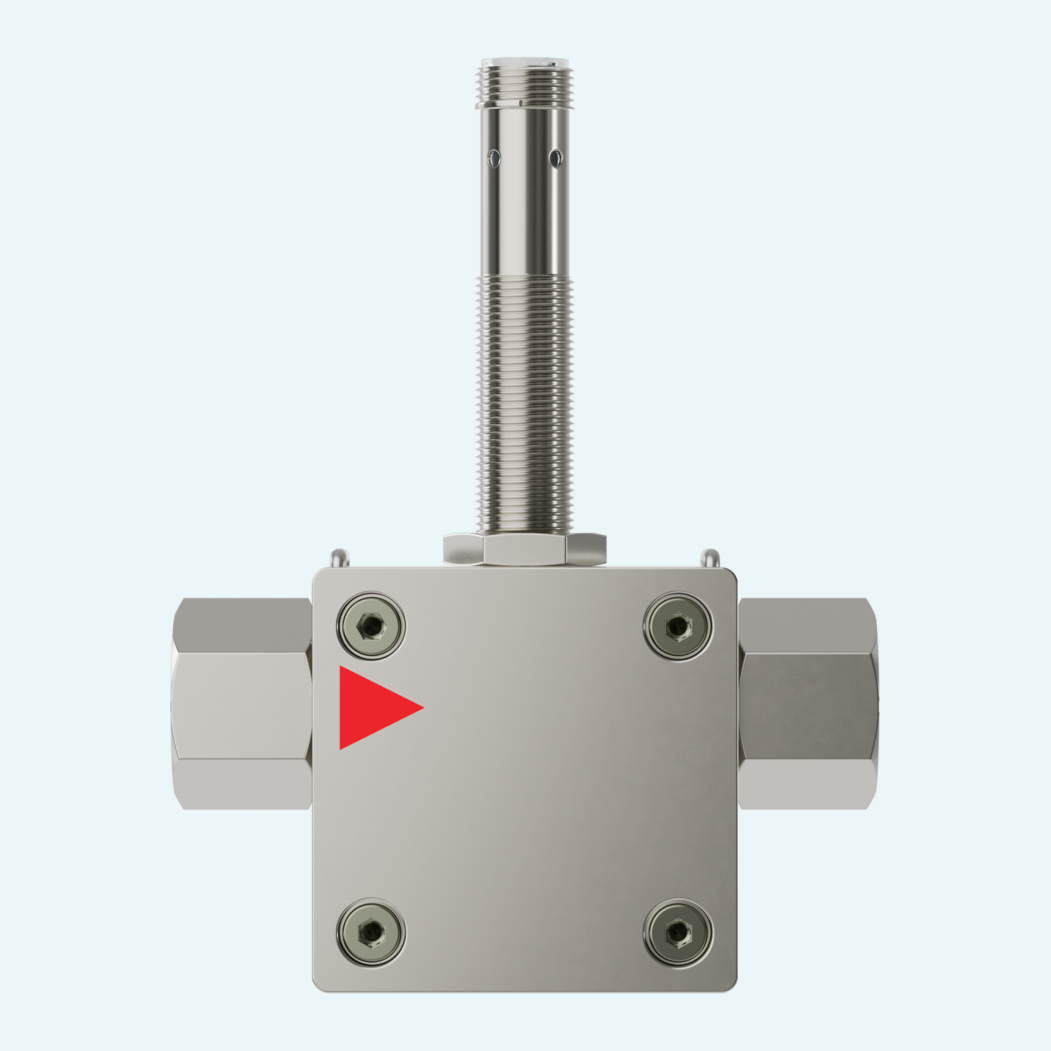

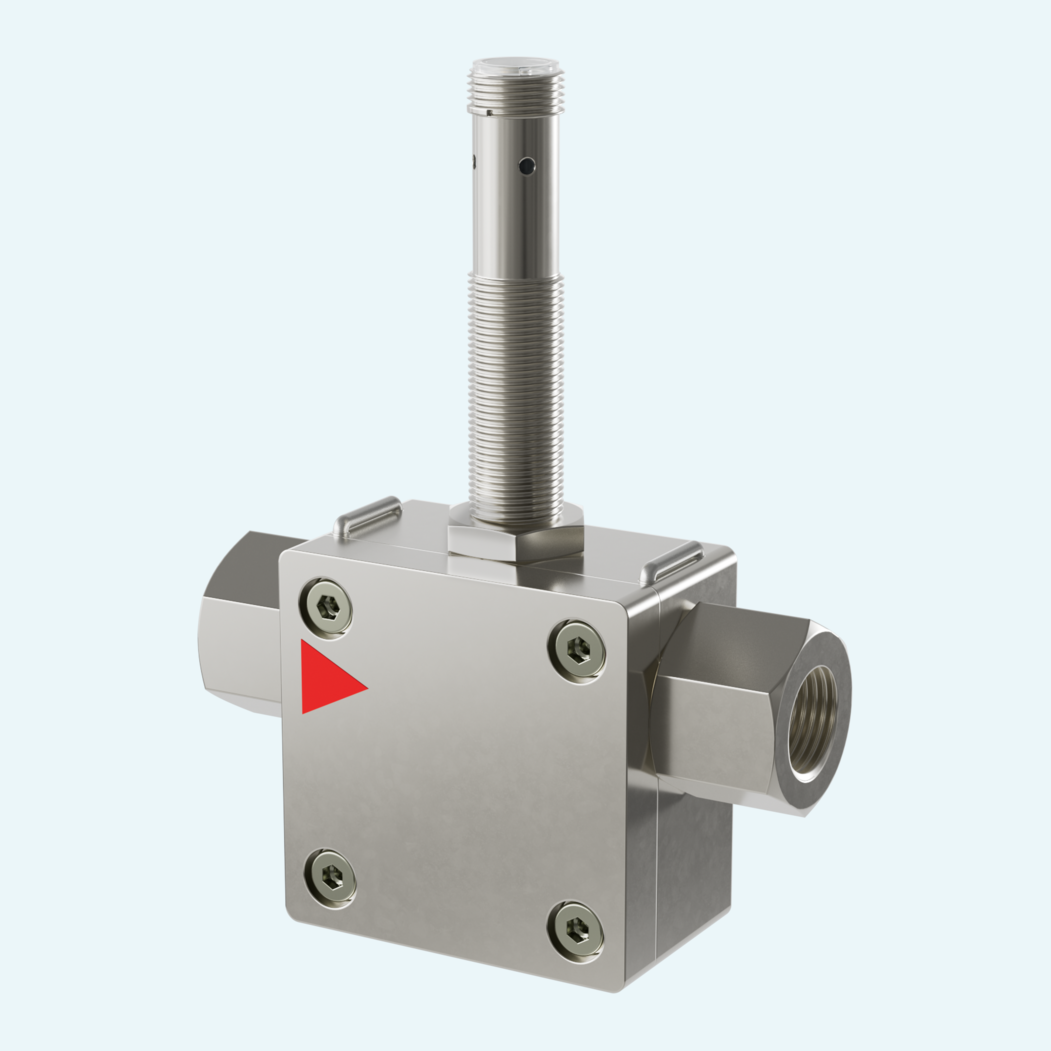

DN 10 connection options include G 3/8 female thread, G 3/8 A male thread and Ø11 hose nozzle. Other connection types are available on request. Connection may be dismounted by user for easy installation.
The housing is available in nickel-plated CW614N or 1.4305 stainless steel. Seal options include FKM as standard, with NBR or EPDM optional.
The electronics support IO-Link V1.1.3, COM2 communication, block parameterization and data storage.
The analog output can be configured for current or voltage operation, including 4...20 mA, 0...20 mA, 0...10 V and further voltage ranges.
The push-pull transistor output can be configured as a limit switch, frequency output, pulse output or preset counter signal.
The device connects via a 4-pin M12x1 circular connector and operates with an 18...30 V DC supply.
