Temperature measurement is easier to manage when the signal range can be matched directly to the application. GTMU-MP provides Pt1000-based temperature measurement with a freely scalable measuring range from -50...+400 °C, making it suitable for a broad range of on-site temperature monitoring tasks.
The device supports practical commissioning and adjustment without additional tools. Users can scale the output signal, view values on the integrated 4-digit LCD and adjust offset and slope digitally. Depending on the selected version, the transducer provides 4...20 mA, 0...10 V or 0...1 V analog output for integration into control and monitoring systems.
Different probe versions support direct installation, higher temperatures with an extension tube, indoor or outdoor wall mounting and duct applications. The ABS housing with ingress protection (IP) IP65, stainless steel probe tube and elbow-type plug connection support reliable use in demanding installation environments.
The probe uses a Pt1000, 2-wire sensor according to DIN class B for temperature detection.

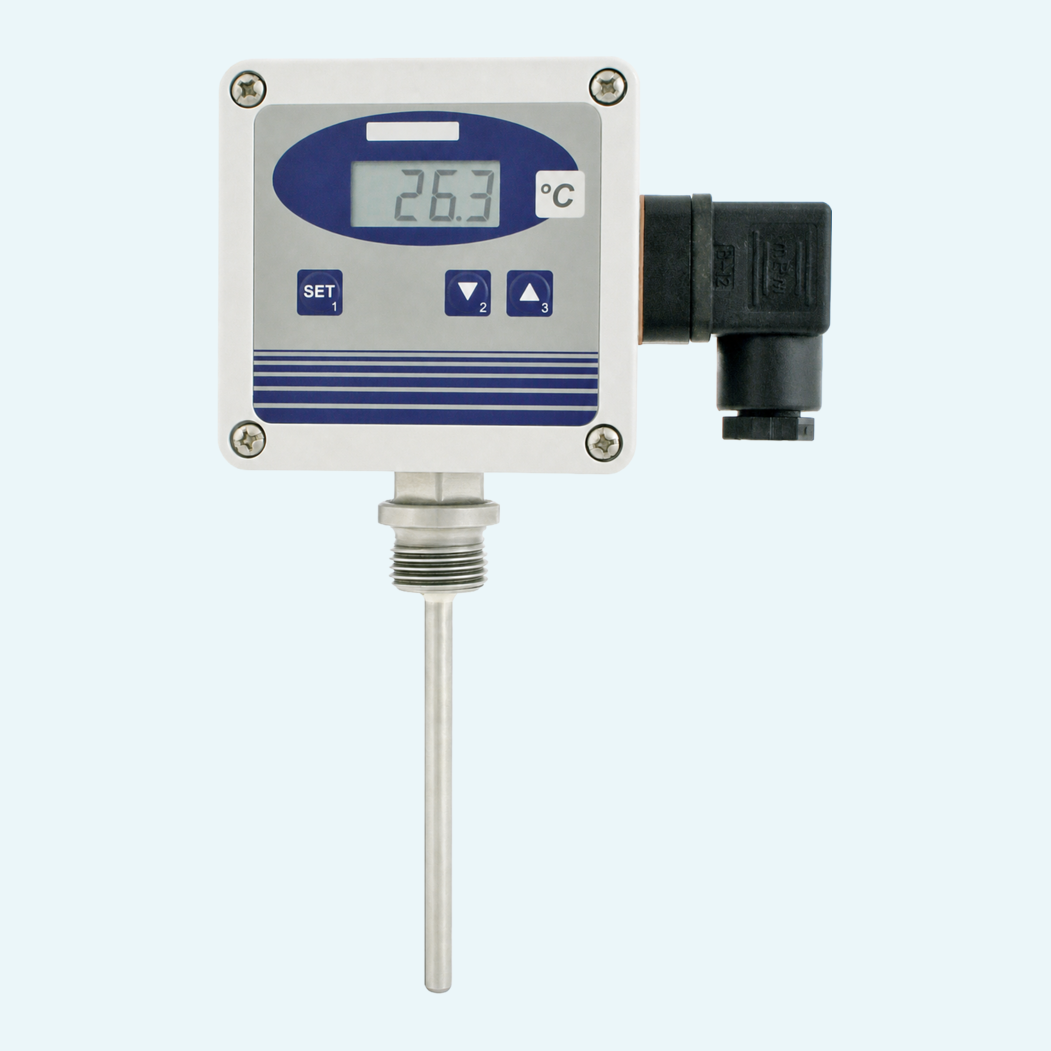

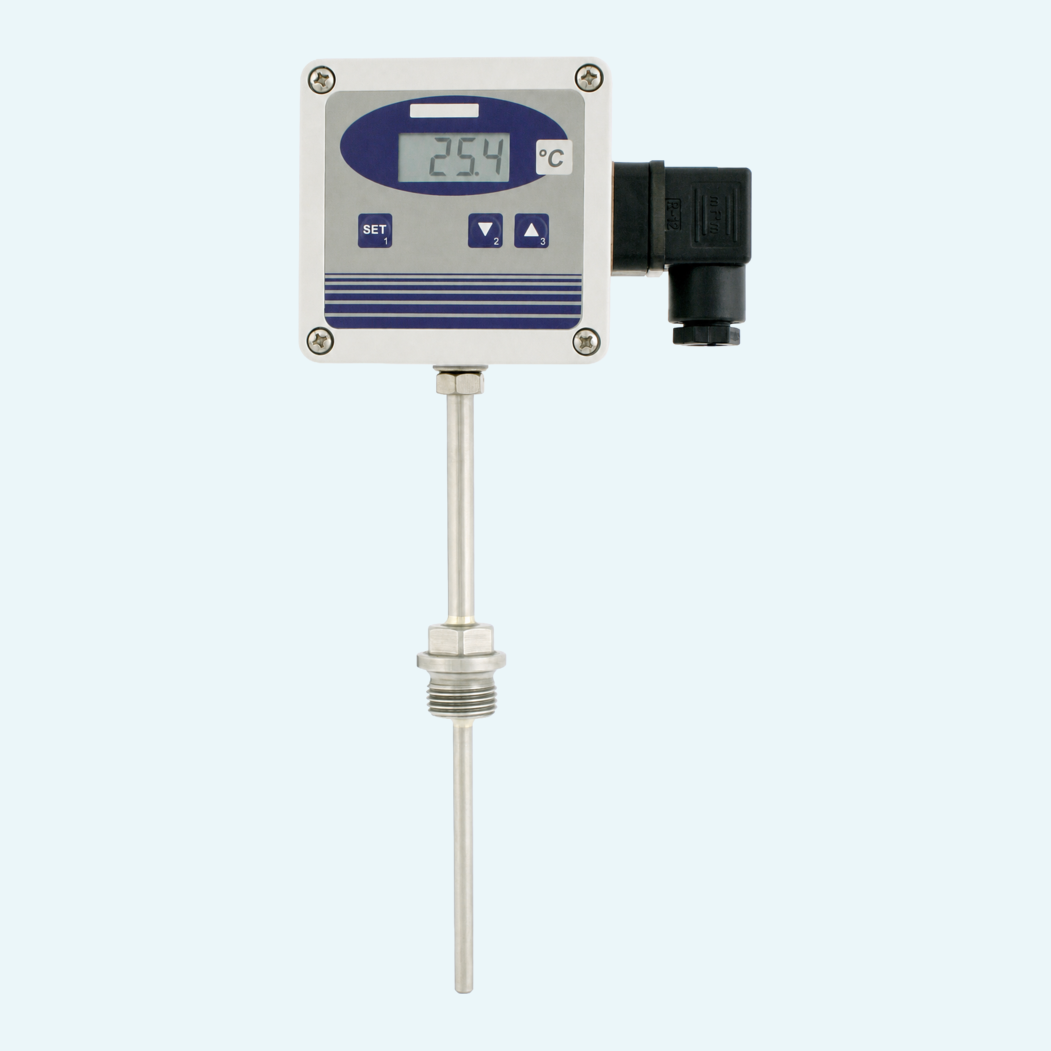

AP1, AP2, AP3 and AP4 versions support process connection, extension tube, wall mounting or duct sensor configurations.
Offset and slope are digitally adjustable, and the output signal can be scaled without tools.
The device includes min-/max-value memory for checking recorded temperature limits.
The probe tube is made of stainless steel and can be selected with different fitting lengths and diameters.
The device uses an elbow-type plug according to EN 175301-803/A with ingress protection (IP) IP65.
The SHUT version provides a heat and weather protective shield for outdoor measurements under sun and rain.
