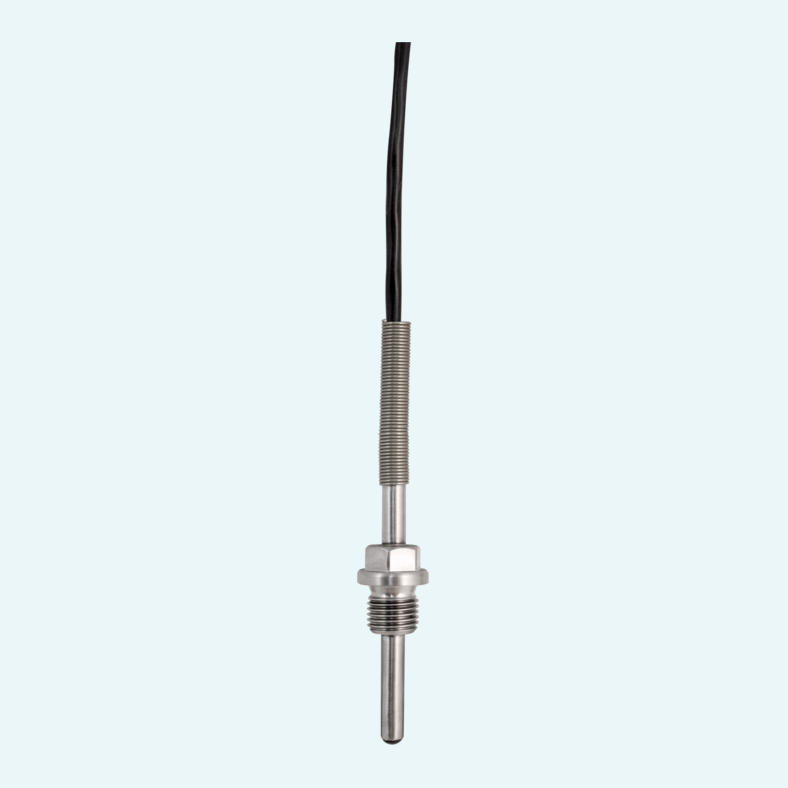

GTF102TC is a srew-in thermocouple temperature sensor in a 3mm (other diameters available) stainless steel tube with fixed cable.
It is available as thermocoupe type K (class 1).
Three temperature ranges (250/400/600°C) are avaiale to allow best adaption to process requirements beween maximum temperature and repsonse times.
Cable can be configured silicon, pvc, ptfe or glass fibre insulated. The cable is protected by an extention tube and supported by a coil spring in the standard version (also avaivable without extention tube and coil spring).
Available for following max. proecess temperatures at sensors tip:
LT: -200...250°C (fast response in lower temperature)
MT: -200...+400°C (fast response in medium temperatures)
HT: -200...+850°C (mineral isulated; good response in higher termperatures)
Note: The maximum operating temperature of the cable must not be exceeded at either the cable ferrule or the cable itself!
Thermocouple type K (NiCr-Ni), class 1 (-40...+1000°C)

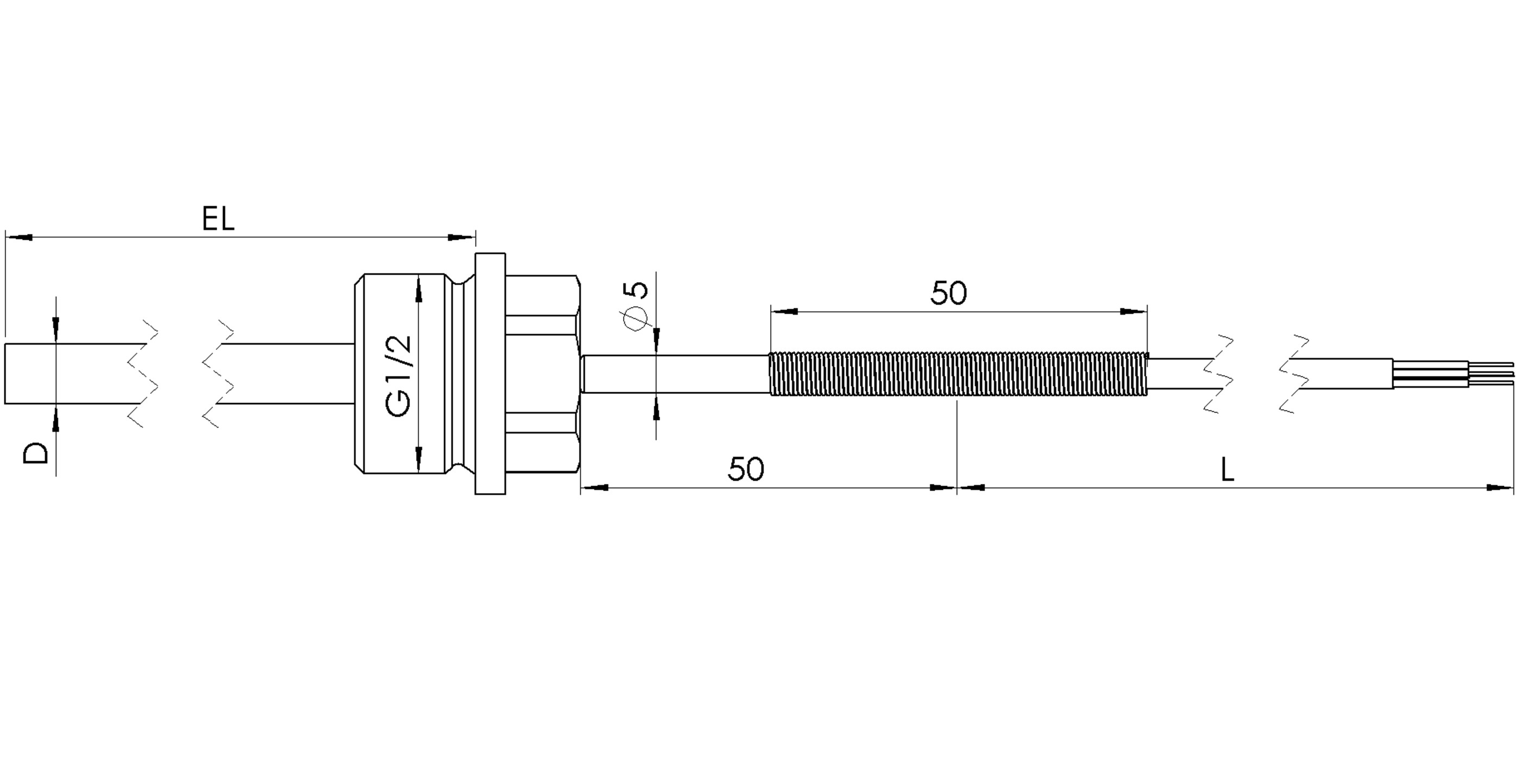

Available in 3/4/5 or 6mm dianmeter in lenght up to 1000mm in 5mm minmum steppings.
G1/2" (standard) or G1/4"
Type (allowed temperatures)
PVC (-20...+105°C)
Silicon (-50...+200°C)
Teflon (-200...+250°C)
Glass-fiber with stainless steel mesh (-50...+400°C)
| Media temperature |
-200...+850 °C
|
|---|
| Temperature sensor |
Type K
|
|---|---|
| Measuring principle |
Thermocouples
|
| Temperature range |
-40...+1000 °C
|
| Electrical connection type |
loose ends
For Loose ends with wire end ferrules: loose ends |
|---|
| Material |
Stainless steel 1.4404
|
|---|---|
| Cable |
PVC, PTFE, Silicon, Fiberglass insulation with steel wire braiding 2-wire
For 2-wire: 2-wire For 2-wire: 2-wire For 1 m PVC cable, -20 ... +105 °C: 1 m PVC For each additional meter (PVC cable): PVC For 1 m silicone cable, -50 ... +200 °C: 1 m Silicon For each additional meter (silicone cable): Silicon For 1 m Teflon cable, -200 ... +250 °C: 1 m PTFE For each additional meter (silicone cable): Silicon For 1 m glass fibre, -50 ... +400 °C: 1 m Flexible fiberglass with steel wire braiding For each additional meter (glass fibre insulated cable): Flexible fiberglass with steel wire braiding For each additional meter (teflon cable): PTFE |
| Probe Diameter |
For 3 mm: 3 mm
For 4 mm: 4 mm For 5 mm: 5 mm For 6 mm: 6 mm |
| Probe length |
For 50 mm: 50 mm
For 100 mm: 100 mm For 150 mm: 150 mm For 250 mm: 250 mm For 500 mm: 500 mm |
