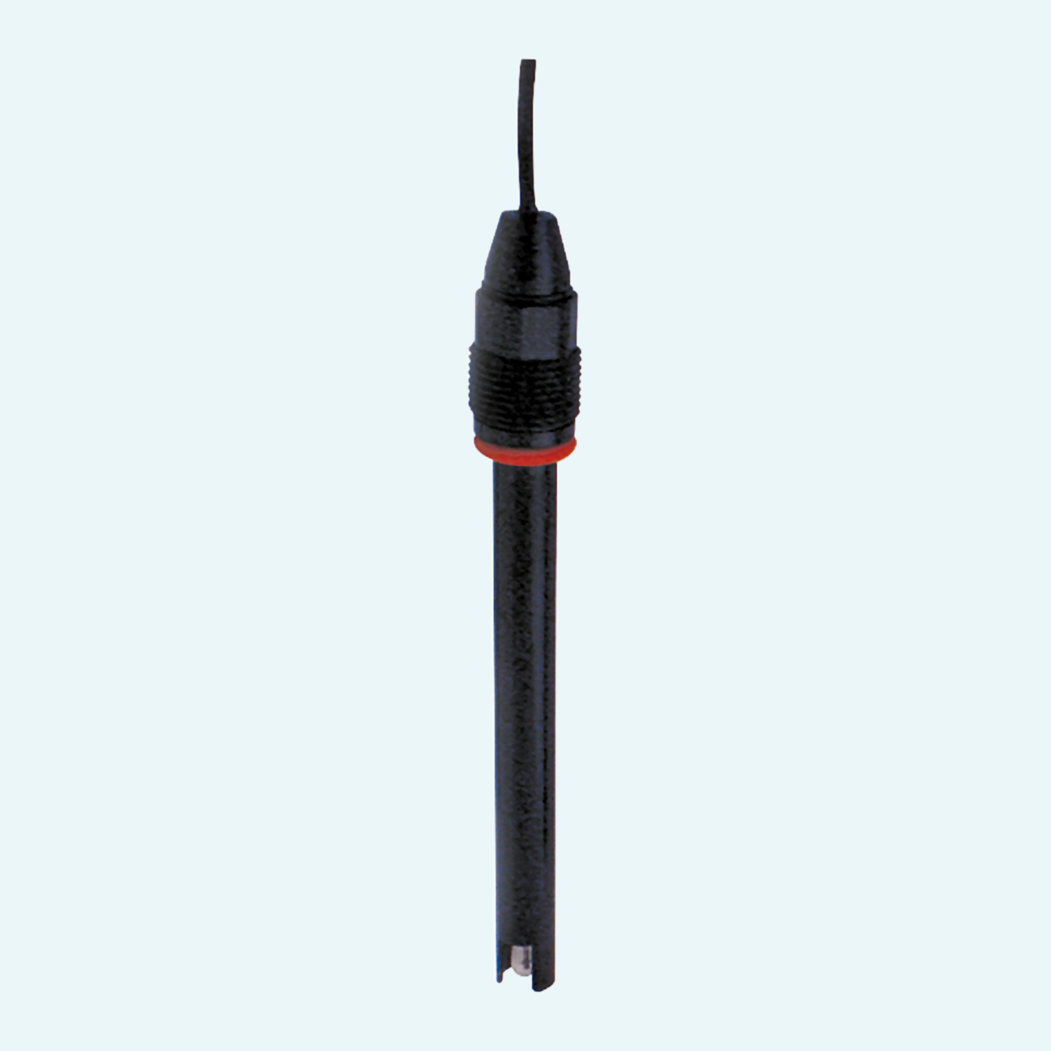

Standard pH-electrode, pressure resistant

GE 108

Pressure capable gel electrode with two ceramic diaphragms and PG 13.5 cable screw coupling.
View all variants Product Inquiry

Introduction

The pressure resistant GE 117 is a long life low & maintenance pH electrode, that can be screwed into applications with the turnable PG13.5 thread part.

In this setup it withstand 6 bars and can cover operational temperture up to 80°C.

The PSU shaft ensures wide media compatibility and is break resistant.

Versatile
Suited for aquarium water, on-site measurements, fish farming, sea water, swimming pool water, drinking water, ...
Gel electrolyte
Low-maintenance and reliable measurement in any orientation. No noticeable leakageunder normal measurement conditions
Pressure resistant
Up to 6 bar with PG13.5 thread

Features

Reference electrolyte

3 mol/l KCl (gel). The reference electrolyte maintains a constant voltage in the reference system and establishes the electrical connection between the diaphragm and the reference electrode.

Diaphragm type / Membrane shape

2 x ceramic / cylinder
