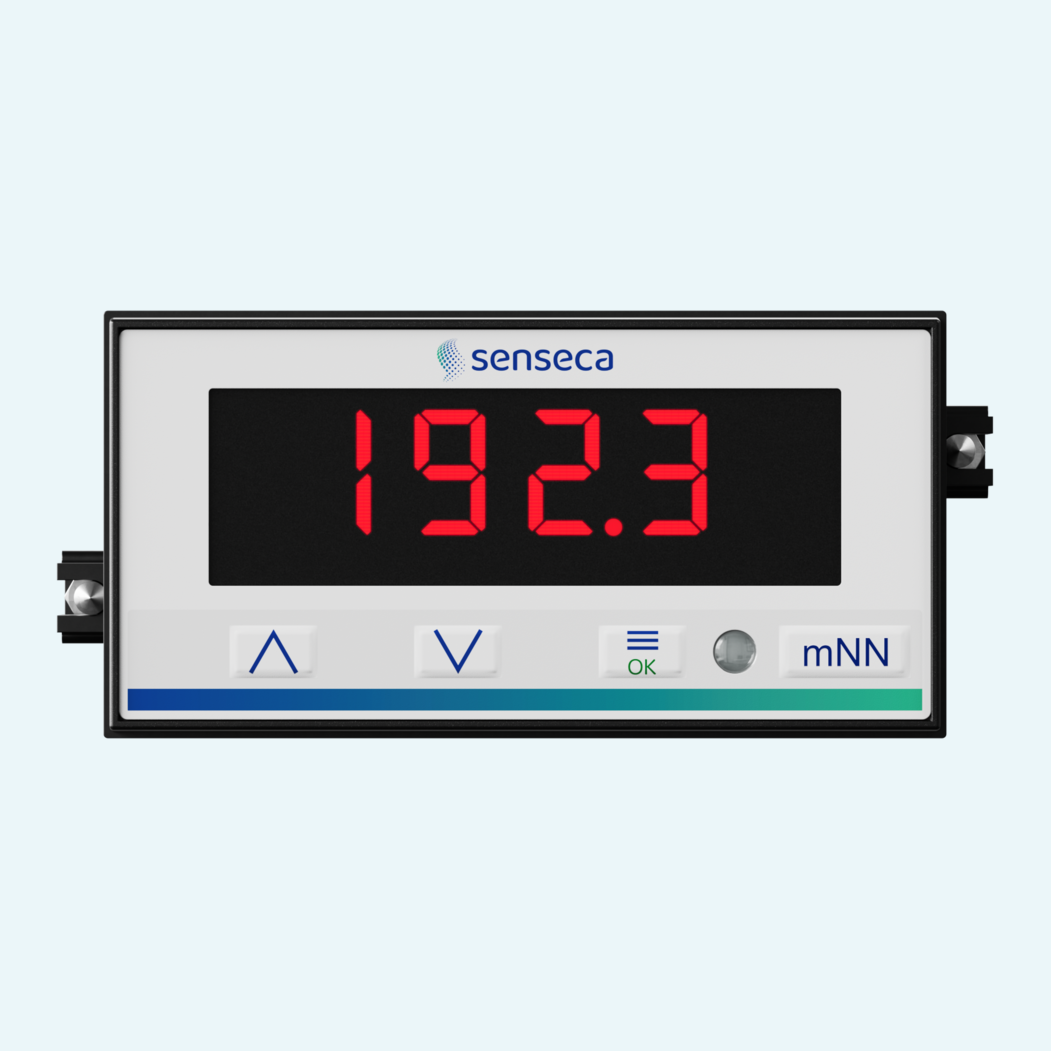

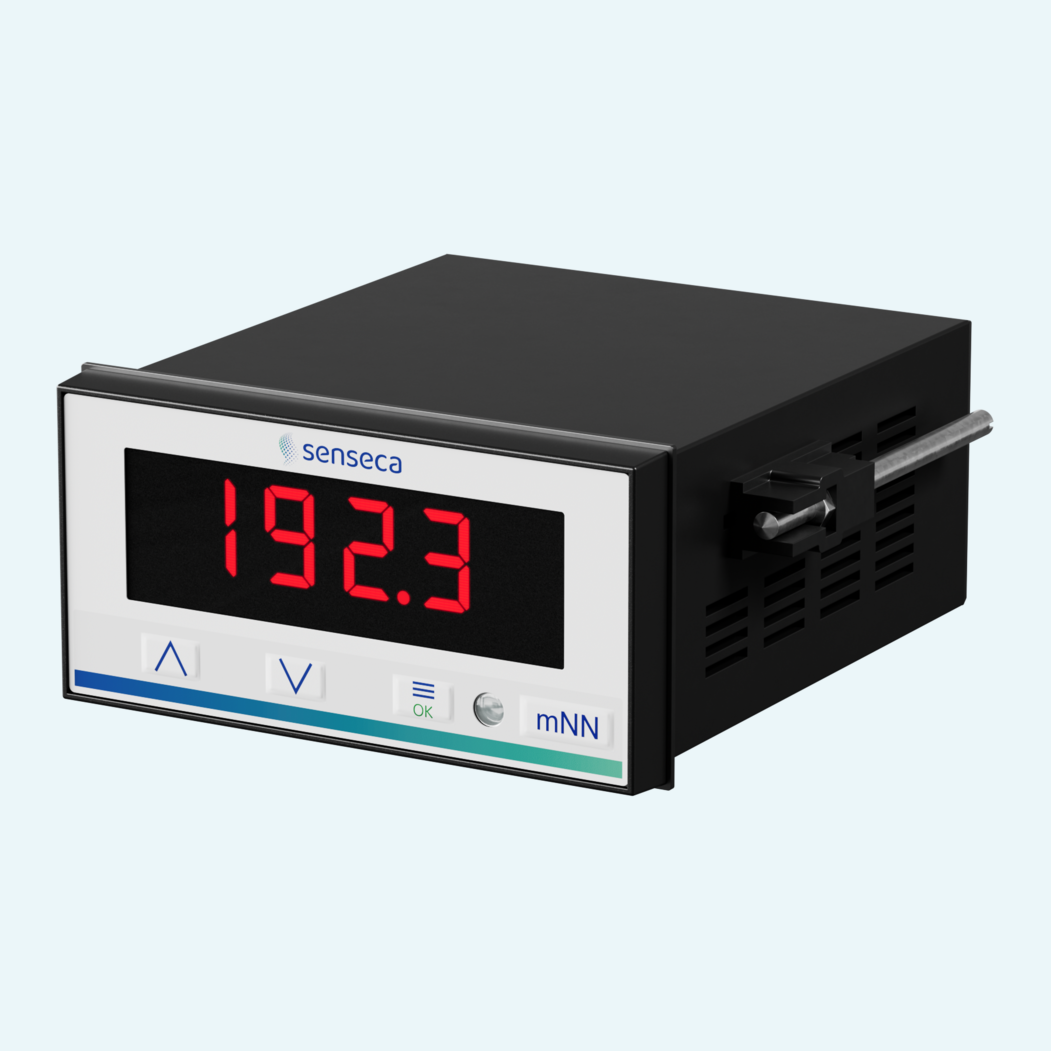

Clear local indication helps operators spot process values quickly at the panel. This panelmeter displays standard current and voltage signals as well as Pt100 temperature inputs, making it suitable for monitoring, measurement and control applications in industrial cabinets.
Flexible programming keeps one device useful across different signal tasks. The indicating range from -1999...2000 digits and the decimal point are freely programmable, while the conversion rate can be set to 8/s, 2/s or 0.5/s to match the application. Pt100 inputs cover -100...400 °C, with voltage and current accuracy of \pm0.1 % and Pt100 accuracy of \pm0.2 °C.

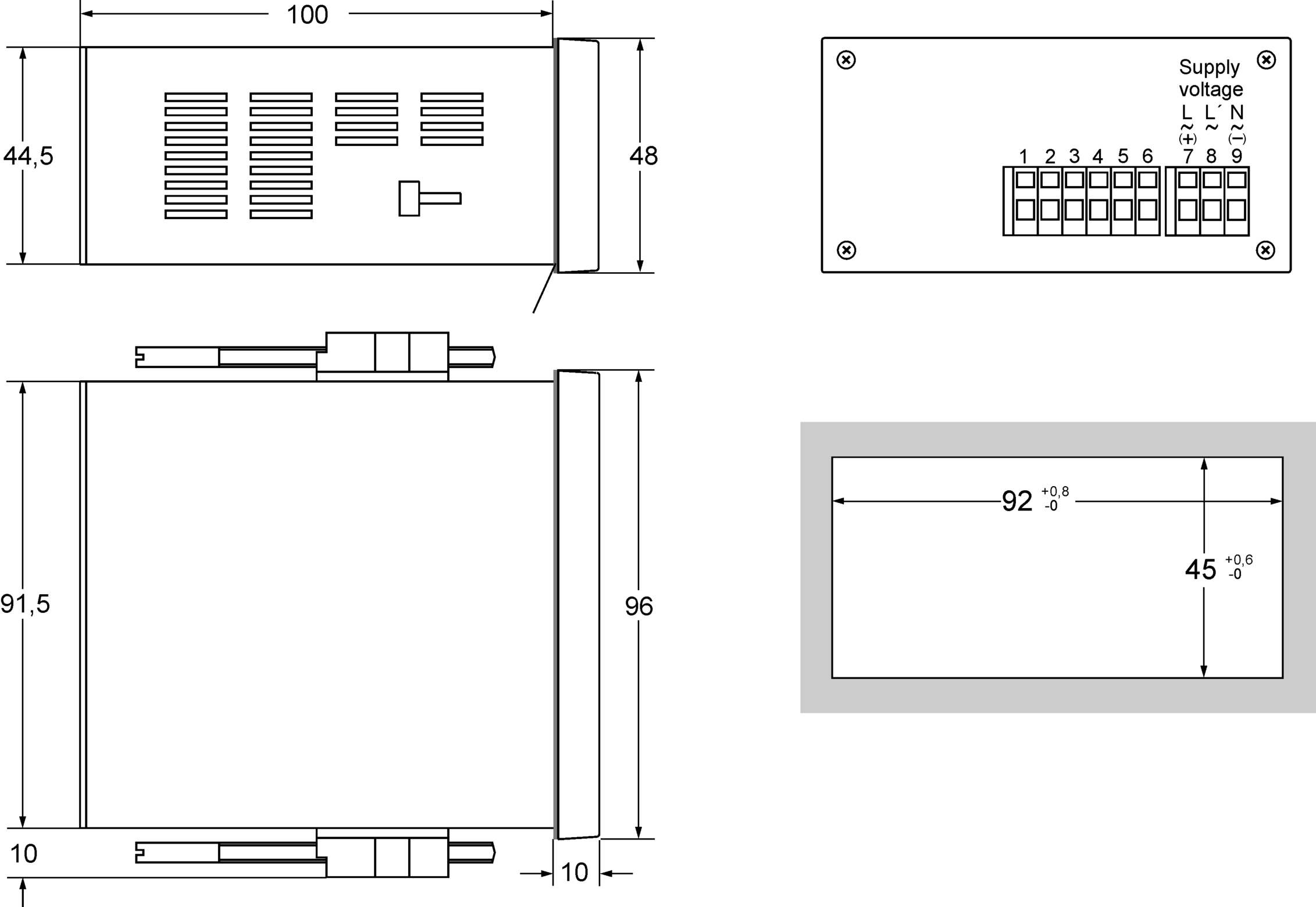

For demanding front-panel use, the DIN 96x48 mm housing provides front ingress protection (IP) IP65. Display versions include 14.2 mm LED colors or a 20.3 mm red LED, with optional self-acting brightness control via photo sensor on red display versions.

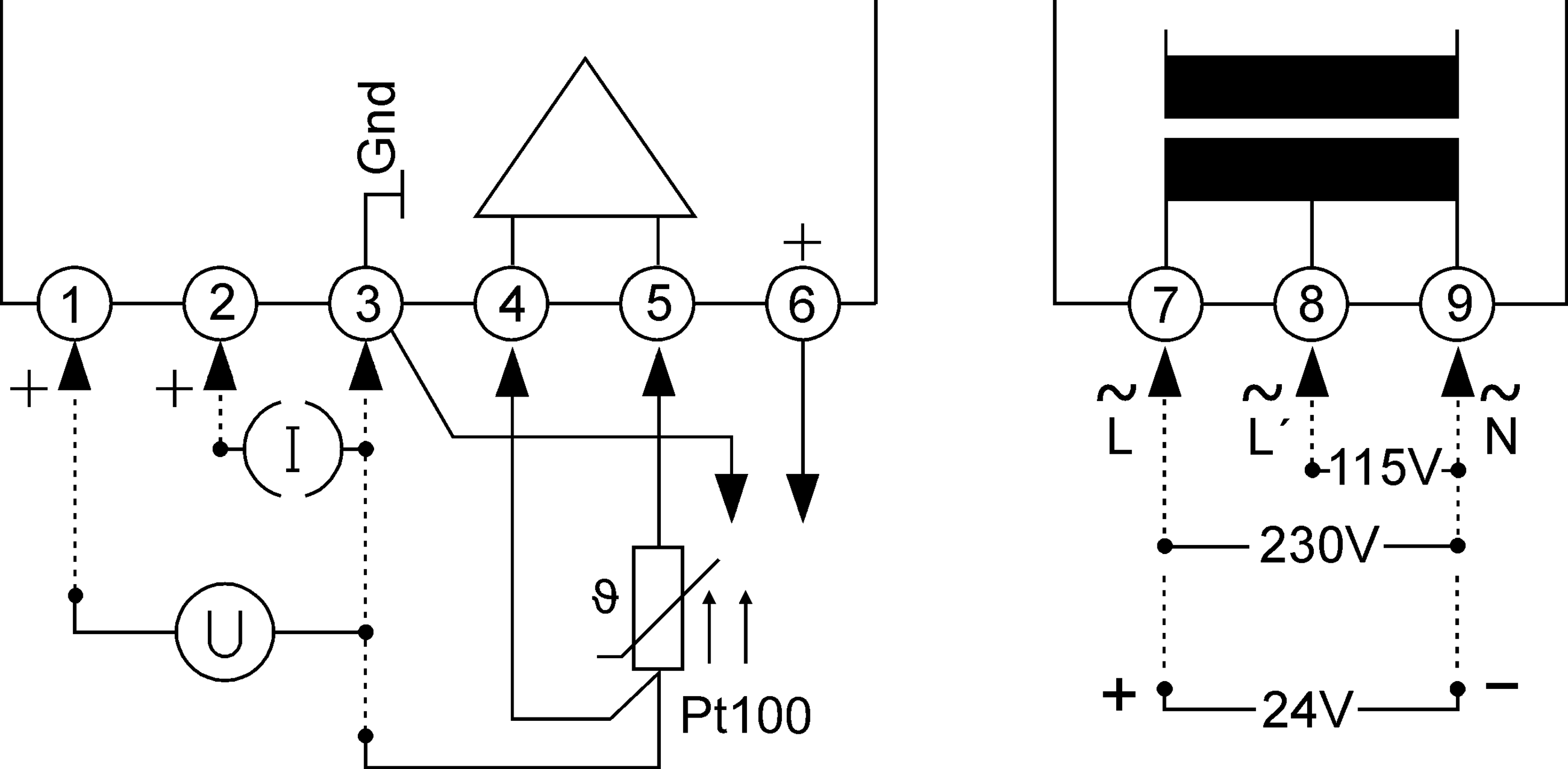

The input can be configured for current, voltage or Pt100 measurement using the device parameters.
Start value, end value, decimal point position and indicating correction are programmable from the front buttons.
The display update rate can be selected as 8 measurements per second, 2 measurements per second or 0.5 measurements per second.
A linearized 0...10 V DC analog output is available with short-circuit protection and a maximum load of 5 mA
Optional self-acting display brightness uses a built-in photo sensor and can be switched on or off in the menu.
A parameter lock function prevents unwanted changes after configuration.
