PC software for data logger and microclimate analysis

DeltaLog 9

PC software for data logger setup and measurement analysis, PC software for data logger management, real-time monitoring and data analysis with HD21xx, HD31xx, HD32.7, HD32.8.8 and HD32.8.16 instruments, including graph/table views and PDF, DOC and CSV export.
Order Code:
DELTALOG9
Article Number:
VDELTA-9
Product Inquiry

Introduction

Field and laboratory measurements become easier to manage when instrument setup, live monitoring and recorded data stay in one PC workflow. DeltaLog9 connects to compatible HD21xx, HD31xx, HD32.7, HD32.8.8 and HD32.8.16 instruments, allowing users to configure parameters, start and stop logging, and download stored measurement sessions directly to the computer.

Recorded values can be reviewed as graphs or tables, with zoom, channel selection, markers, labels and statistical views to support faster analysis. Real-time monitor mode displays current measurements numerically and graphically, with update intervals from 1 second and configurable alarm limits for monitored variables.

For reporting and documentation, data can be printed or exported in PDF, DOC, CSV and formatted text formats. Automatic device search, USB-HID or Serial RS232/USB connection options and instrument setup functions help reduce handling effort during routine measurement work.

Central PC workflow
Set up instruments, start or stop logging and download stored sessions from one software interface.
Live data view
Monitor measurements in real time with update intervals starting from 1 second.
Clear data analysis
Review sessions as graphs or tables, with zoom, markers, labels and statistics.
Flexible reporting
Export active data to PDF, DOC, CSV or formatted text for further documentation.

Features

Instrument connection

The software supports USB-HID and Serial RS232/USB connection types, with automatic search for connected devices where available.

Data download

Logged measurement sessions can be transferred from compatible instruments to the PC without deleting data from the instrument memory.

Monitor function

The PC displays live instrument readings in numerical and graphical form, including measured values, units, minimum values and maximum values.

Alarm settings

High and low limits can be assigned to measurement variables, with selectable actions such as logging control, computer beep, file opening or e-mail sending.

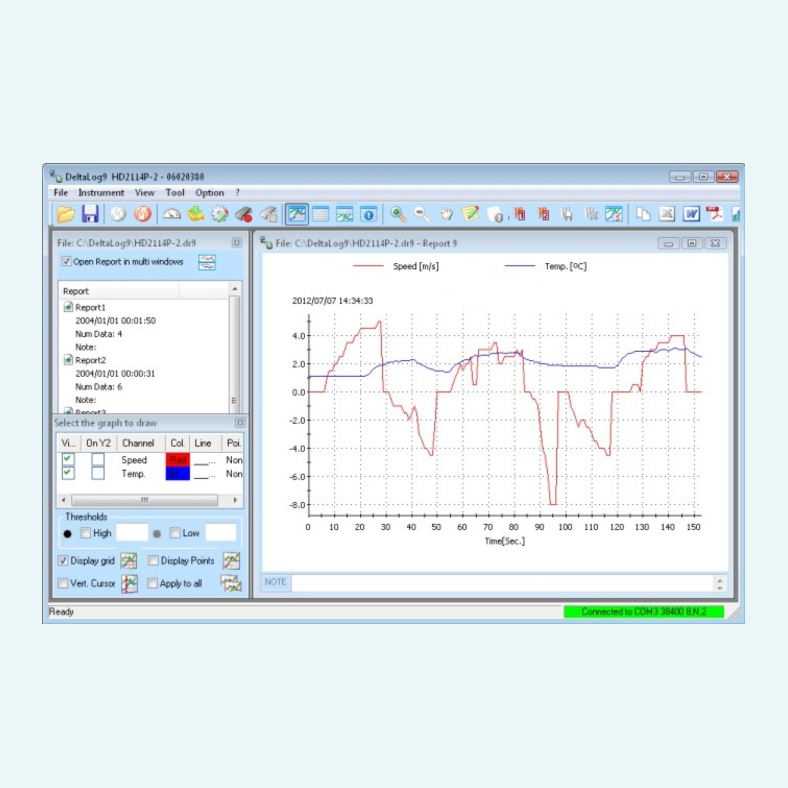

Graph and table display

Measurement data can be shown as graphs, tables or a combined view, with selectable channels and graph property settings.

Markers and labels

Users can place reference markers and text labels on graphs, then save them together with the recorded data file.

Instrument setup

Connected instruments can be configured from the PC, including date and time, logging interval, channel settings and battery status display where supported.

File handling

The software opens and saves DeltaLog9 data files and exports active data for use in PDF, DOC, CSV and formatted text workflows.
