Microclimate assessment needs traceable data, clear processing and reports that stand up in technical evaluation. DeltaLog10 saves acquired measurements in a local MySQL database, displays the data in graphs or tables and supports analysis for compatible HD32.1, HD32.2, HD32.3, HD32.3TC, HD37AB1347 and HD21AB17 instruments.
The software guides users through worker activity and clothing settings, then calculates microclimatic indices for moderate, cold, hot and very hot environments. Calculations follow standards including ISO 7730, ISO 11079, ISO 7243 and ISO 7933, giving teams a structured basis for thermal comfort and thermal stress reporting.
For daily work, data can be downloaded, filtered by time interval, extracted as a subset, exported to CSV or generated as PDF reports. Real-time Monitor mode is available for supported instruments, with selectable parameters, graph settings and saved acquisition files.
The software works with HD32.1, HD32.2, HD32.3, HD32.3TC, HD37AB1347 and HD21AB17 instruments.
Stored measurements can be transferred to the PC and saved automatically in the selected working folder, depending on the instrument model.
Clothing and activity settings can be selected from built-in categories or entered manually, then saved to a file for later processing.
Separate calculation modules cover moderate, cold, hot and very hot environments with the relevant indices for each case.

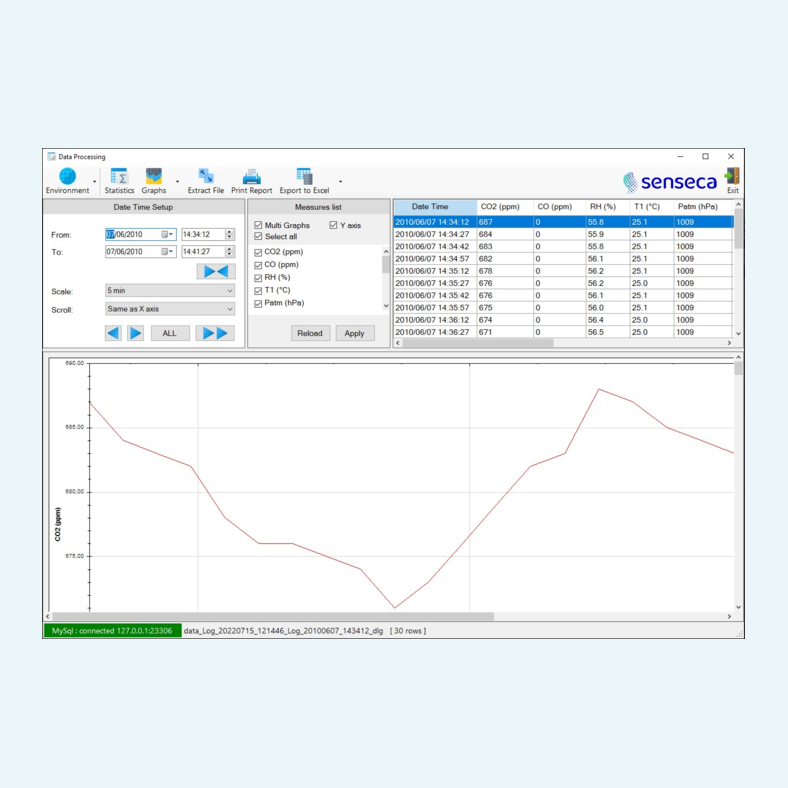

Downloaded files can be viewed as graphs, tables or complete combined displays, with selectable quantities and time intervals.
The Extract File function creates a separate file from a selected part of the measurement data for focused analysis.
Calculation and simulation tools are available for psychrometric parameters, microclimatic environments and discomfort indices.
PDF reports can include cover page information, statistical data, tabular or graphic output, address book entries and a custom header.
DeltaLog 10 can be ordered on a USB flash drive or downloaded for free from our website.
