Reliable AC voltage monitoring in control systems starts with a signal that can be used directly. VT500 converts true r.m.s. voltage values from waveforms of any shape into proportional industrial standard signals, for example when detecting the load voltage of a frequency converter.
Six measuring ranges from 0 ... 100 to 0 ... 600 V AC are selected at the front panel, with the final value adjustable by ± 35 %. This makes the transmitter adaptable across the 65 ... 800 V range without gaps. Selectable 0/4 ... 20 mA and 0/2 ... 10 V outputs support straightforward integration into process control systems.

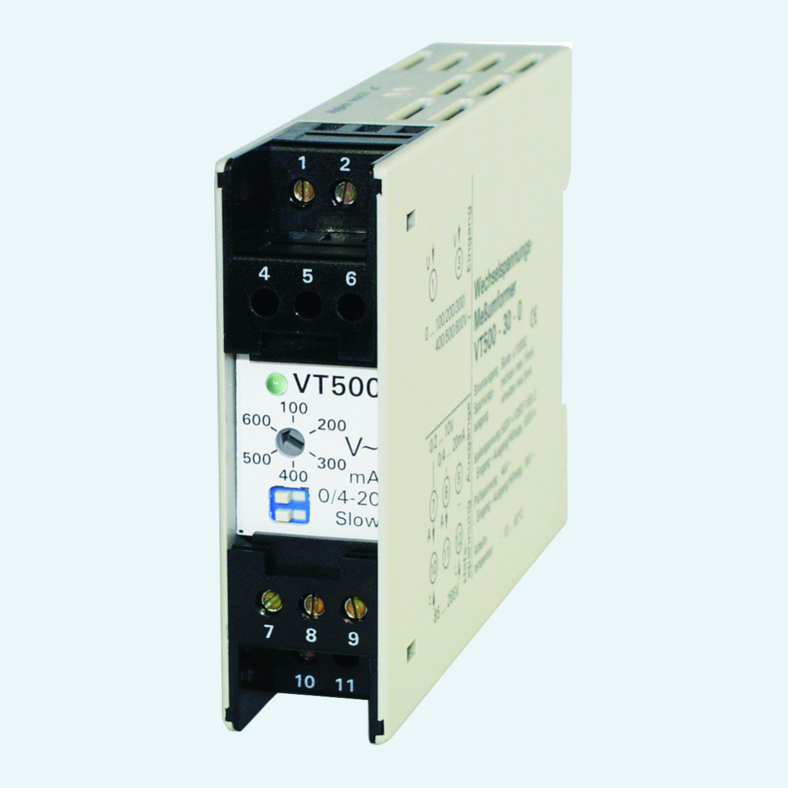

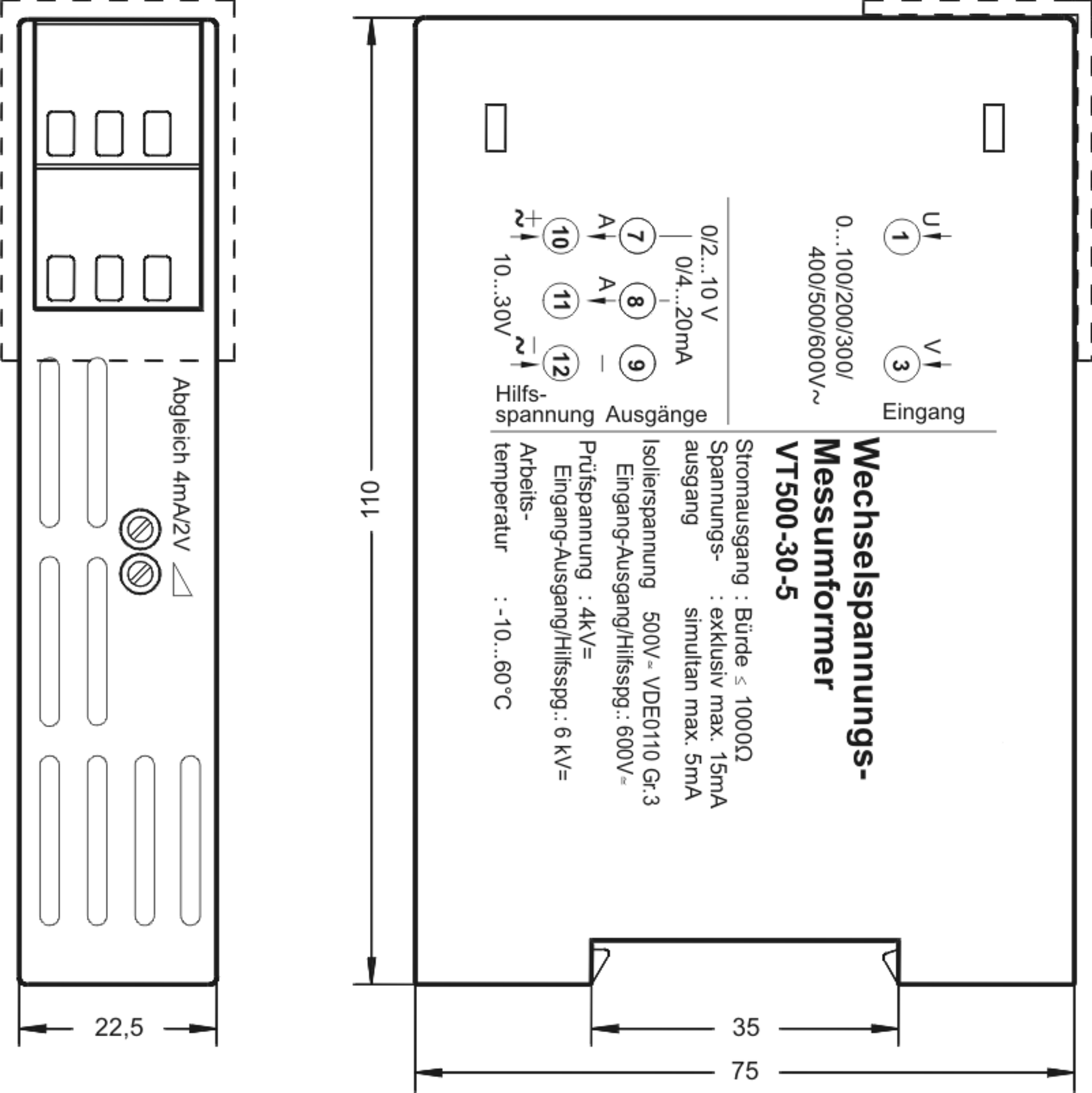

For safe, stable panel use, the device provides full 3-port isolation between input, output and supply. The 22.5 mm polycarbonate case mounts on TS35 DIN rail, while a power-on LED and front-panel switches make setup clear during commissioning.

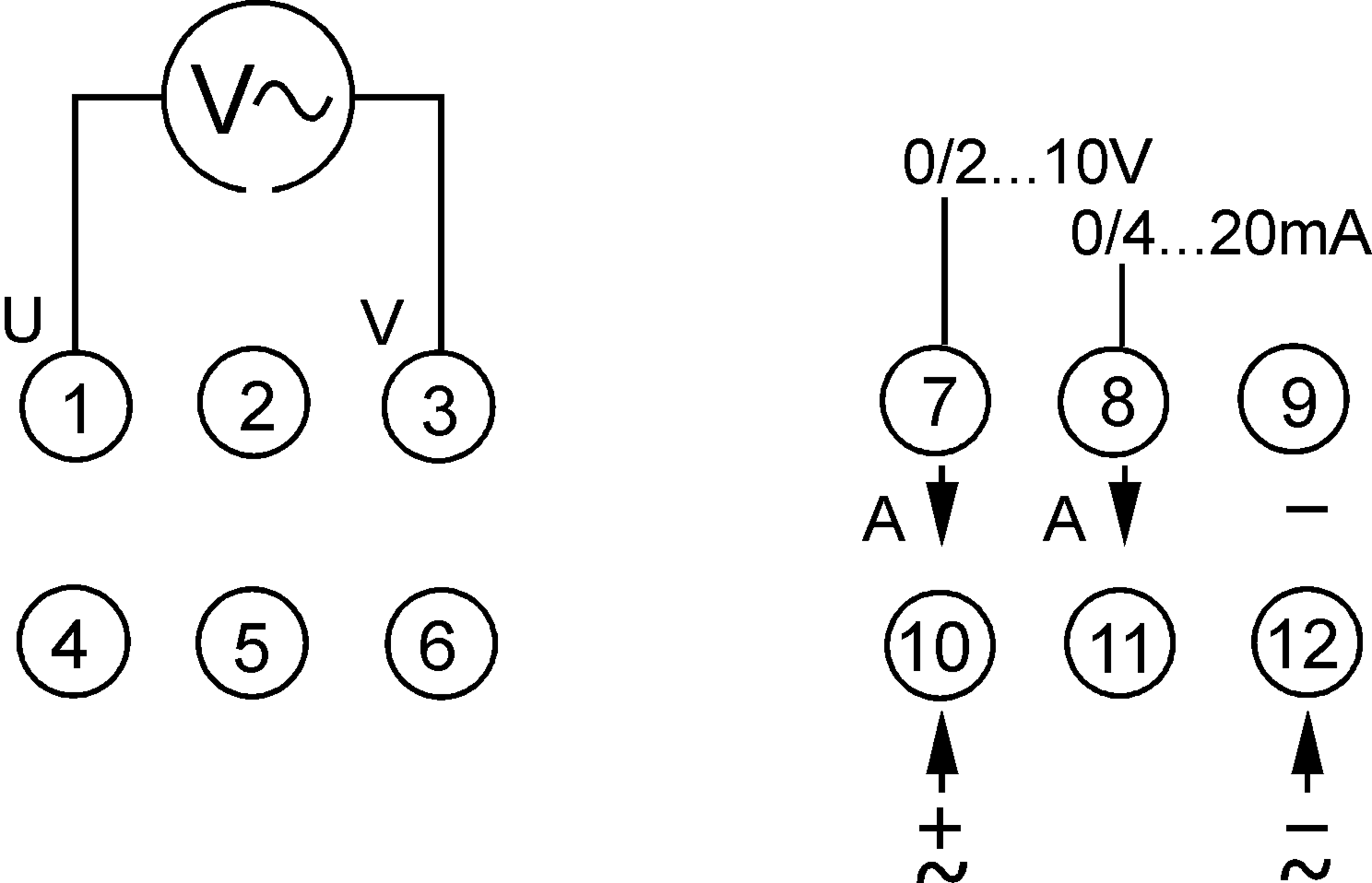

The transmitter measures AC voltage in six switch-selectable ranges. Input resistance is 720 kΩ, and overload capability is specified up to 1200 V.
The initial value is adjustable by ± 5 %, and the final value by ± 35 %. Range selection is made using the rotary switch on the front panel.
Current output is selectable as 0/4 ... 20 mA. Voltage output is selectable as 0/2 ... 10 V DC and can operate simultaneously with the current output.
A switch-selectable slow averaging function is available for measured values that require smoothed output behavior.
Measuring range and output configuration are selected using a rotary switch and DIP switch on the front panel.
The device is available with 85 ... 265 V AC or 10 ... 30 V AC/DC supply voltage, depending on the selected ordering variant.
For operation with input voltage above 400 V AC, terminal cover KA-VT is specified as an accessory.
| Voltage range |
AC 0...600 V
|
|---|---|
| Frequency range |
40...2000 Hz
|
| Operating temperature |
-10...+60 °C
|
|---|
| Number of analog outputs (active) |
2,max.
|
|---|---|
| Type of analog output |
0…20 mA, 4…20 mA,0…10 V, 2…10V
|
| Accuracy |
0.2...0.5 %
|
| Burden (current output) |
≤ 1 kΩ
|
| Materials |
Polycarbonate, UL94V-0
|
|---|
| CE Conformity |
Yes
|
|---|
| Electrical connection type |
Terminals
|
|---|
| Auxiliary voltage |
85..265 V AC, 10..30 V AC, 10..30 V DC
For 85 ... 265 V AC: 85…265 V AC For 10 ... 30 V AC/DC: 10…30 V AC/DC |
|---|
