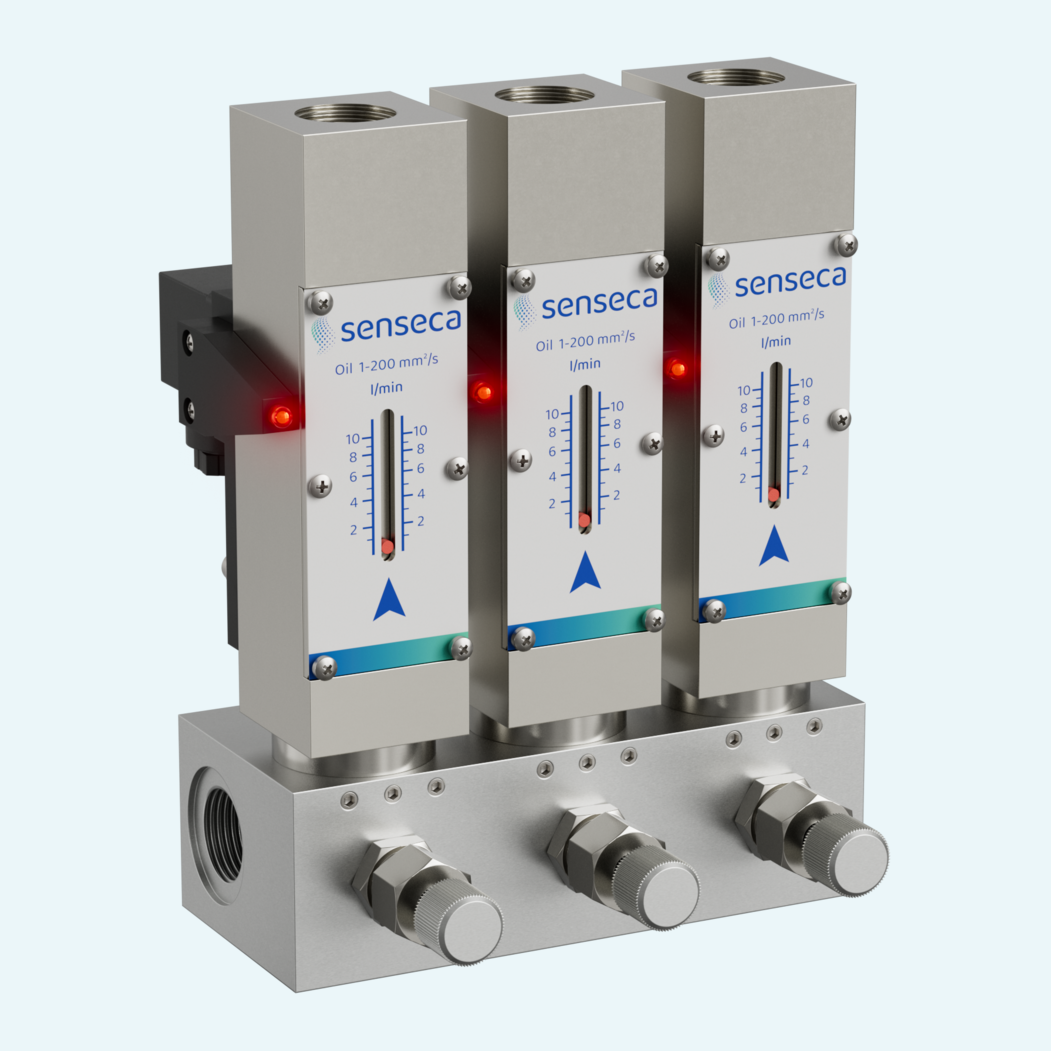

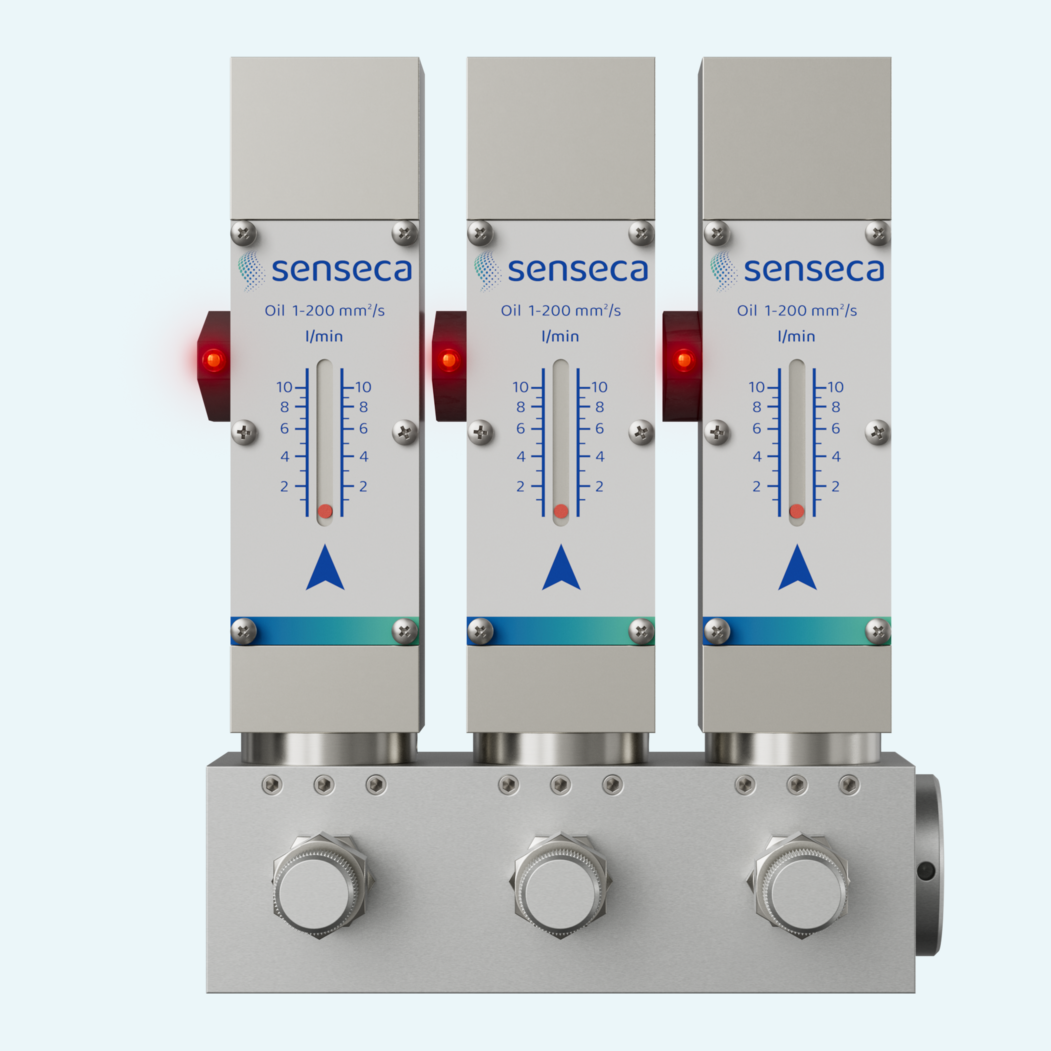

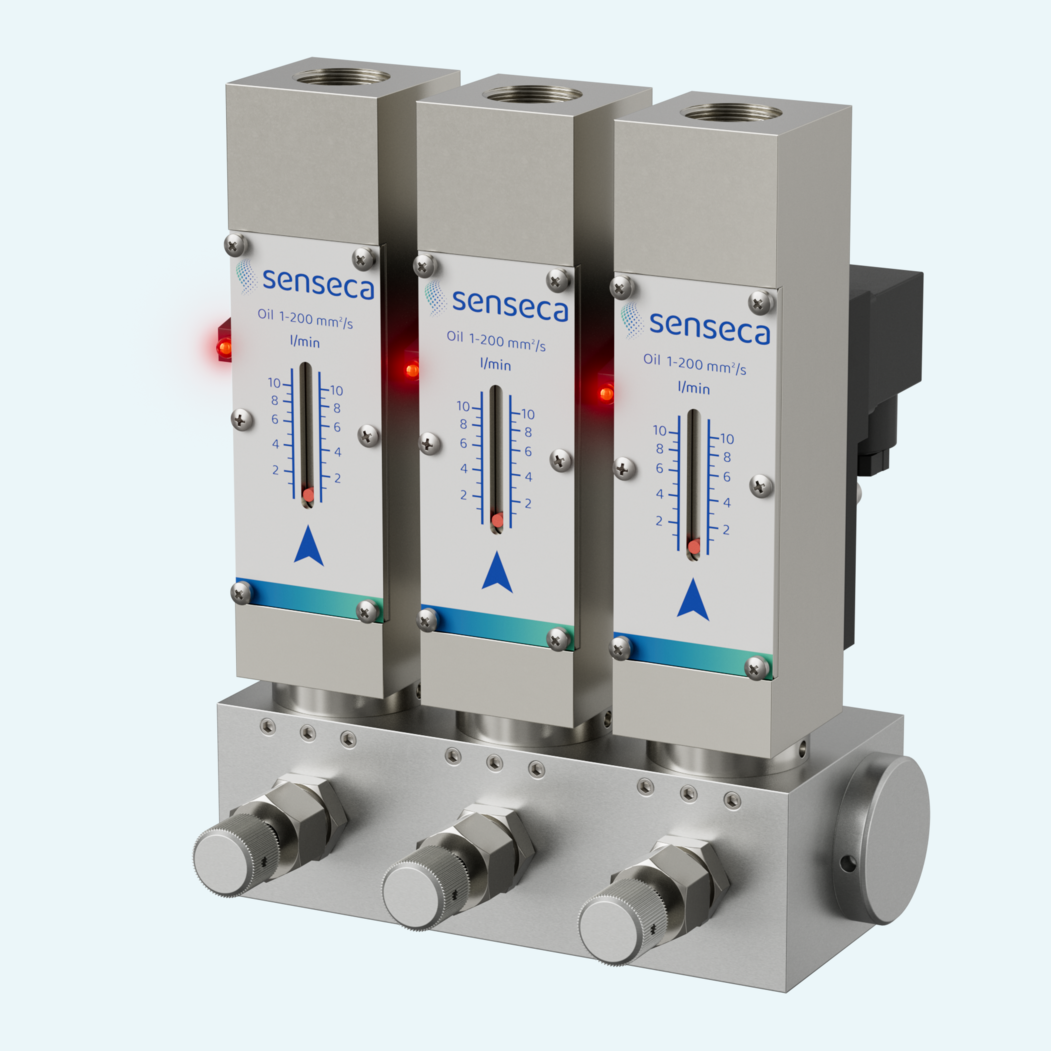

Flow indicator systems often need a clean, compact way to connect several measuring points without adding unnecessary components. This distribution block supports single- and multi-position setups and combines the manifold function with an integrated needle valve for manual flow control.
The family covers 1 to 8 measuring points, allowing the layout to match the number of monitoring positions required. DN 20 sizing with G 3/4 internal thread provides a defined connection basis for NJ / NJV flow indicator installations.
Built for industrial operating conditions, the block is pressure-resistant up to PN 25 and suitable for media temperatures from -20...+110°C. Media-contacting materials include anodized aluminum, NBR and nickel-plated CW614N, supporting dependable use in flow monitoring assemblies.
The distribution block is available for 1 to 8 measuring points and supports single- or multi-position system layouts.
An integrated needle valve provides manual flow control directly within the distribution block assembly.
The block uses DN 20 sizing with G 3/4 internal thread for connection to compatible flow indicator installations.
Media-contacting parts are made from anodized aluminum, NBR and nickel-plated CW614N.
The family is specified for PN 25 pressure resistance, -20...+110 °C media temperature and -20...+70 °C ambient temperature.
