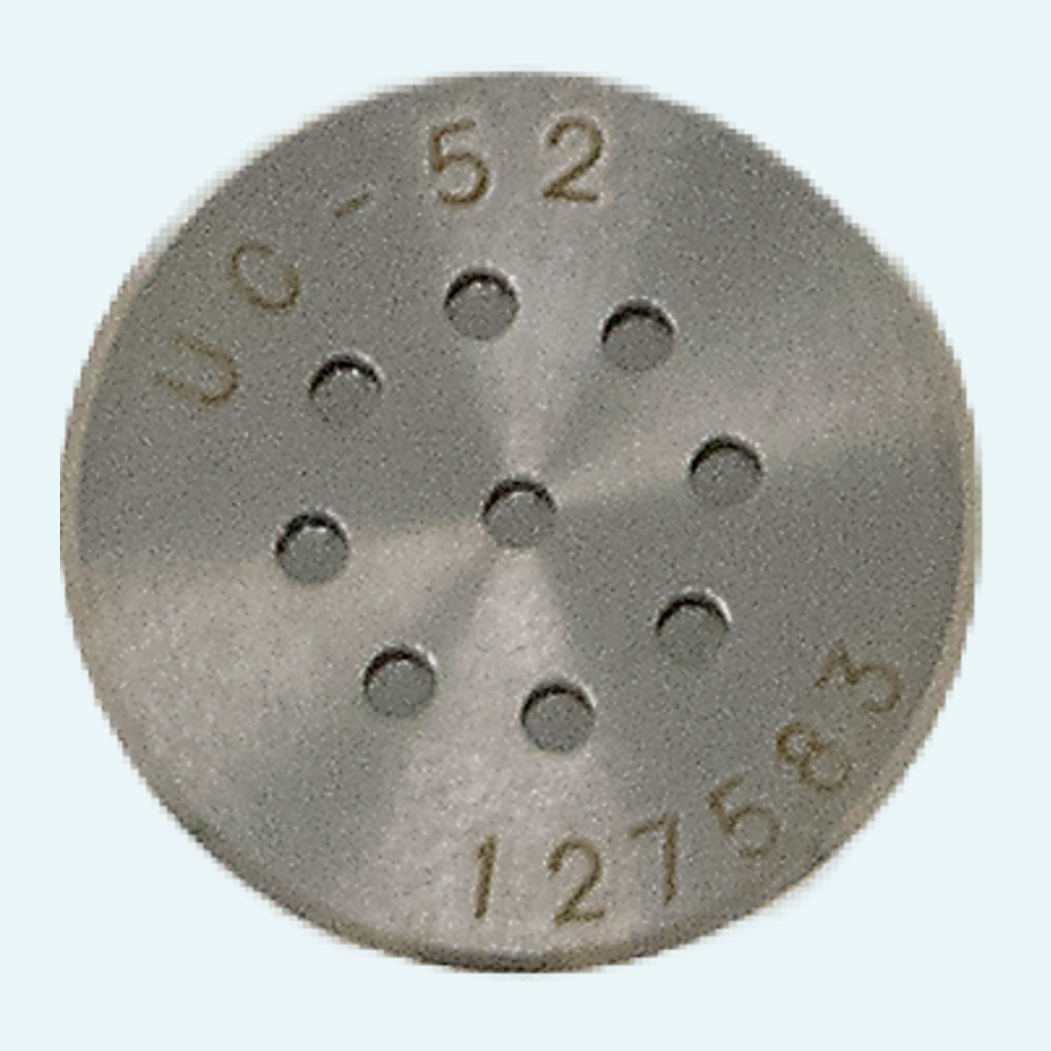

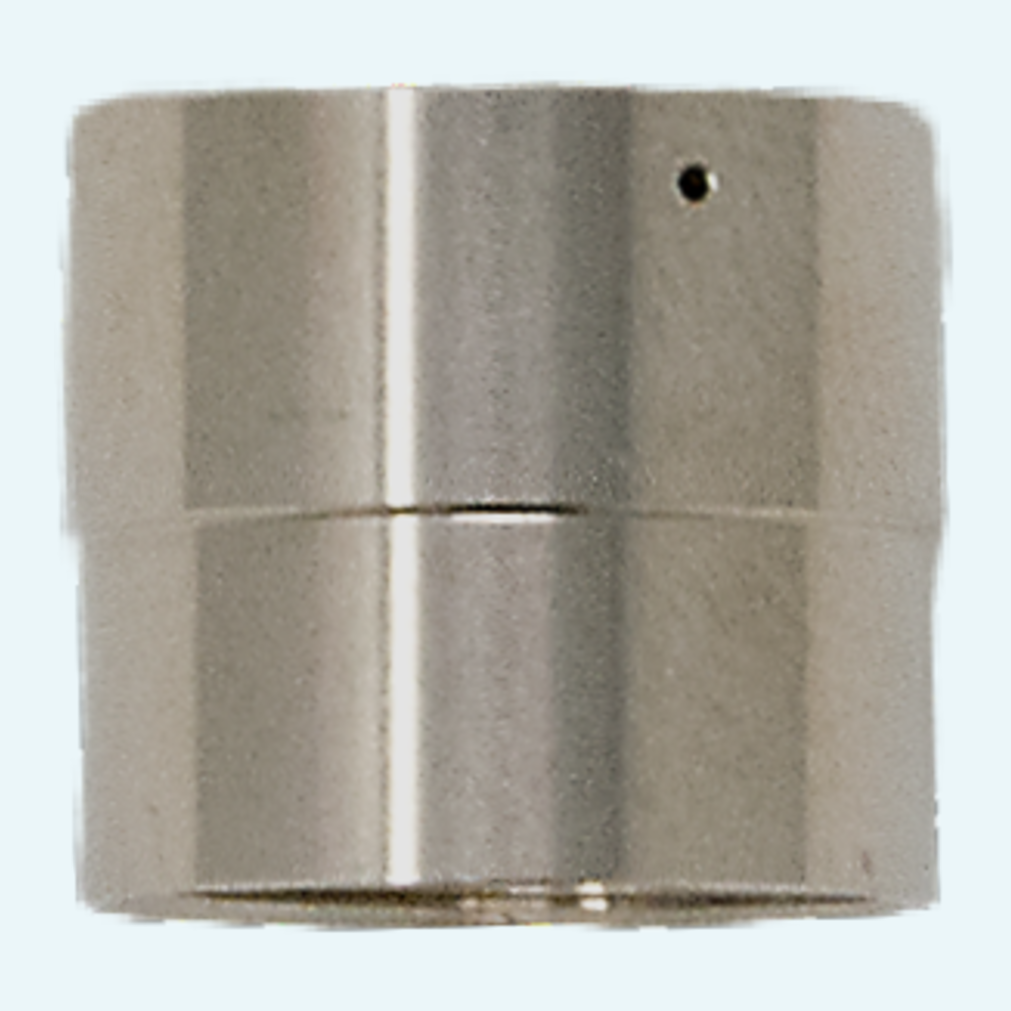

½" Free-Field Microphone

UC-52

Delivering 22.5 mV/Pa sensitivity, this ½" pre-polarized free-field microphone powers the HD2010UC sound level meters, offering a 20 Hz–16 kHz response for Class 1 and a 25 Hz–10 kHz range for Class 2 applications.
Product Inquiry

Introduction

Sound level meter performance relies on a microphone capsule perfectly matched to the instrument class and acoustic environment. The UC52 is a highly cost-effective ½" pre-polarized condenser microphone specified for HD2010UC and HD2010UC/A Class 1 and 2 instruments, delivering a removable free-field chain tailored for workplace noise exposure, general acoustic assessments, and industrial product testing.

The capsule, optimized for free-field measurements, offers a 20 Hz–16 kHz response for Class 1 and a 25 Hz–10 kHz range for Class 2 applications with a sensitivity of 22.5 mV/Pa.

Supplied with a calibration card, UC52 is used with the HD2010PNE2 preamplifier, as standard microphone set for the HD2010UC and HD2010UC/A sound level meters.

HD2010UC integration
HD2010UC integration
Used in the HD2010UC Class 1 and 2 sound level meters combined with the HD2010PNE2 preamplifier
Free-field use
Free-field use
Pre-polarized microphone optimized for free-field measurements
Documented capsule
Documented capsule
Supplied with calibration card for measurement records.
Preamplifier fit
Preamplifier fit
Compatible with HD2010PNE2 and HD2010PNE2W preamplifiers.

Features

Pre-polarized capsule

UC52 is a ½" pre-polarized condenser microphone compatible with HD2010UC and HD2010UC/A sound level meters.

Free-field response

The microphone is optimized for free-field acoustic measurements.

Sensitivity specification

The capsule is specified with 22.5 mV/Pa sensitivity.

Frequency range

The UC52 capsule delivers tailored frequency responses to match your project needs, spanning 20 Hz to 16 kHz for Class 1 applications and 25 Hz to 10 kHz for Class 2 measurements.

Calibration chart

Each microphone is supplied with its own individual calibration chart.

Details

The microphone capsule, compatible with preamplifier HD2010PNE2, is available in both Class 1 and Class 2 versions

UC52: Class 2 version

Specifications:

  • 1/2" diameter condenser microphone
  • pre-polarized membrane with 22 mV/Pa sensitivity
  • free-field optimization
  • frequency range from 25 Hz to 10 kHz

Supplied with calibration chart.

UC52/1: Class 1 version

Specifications:

  • 1/2" diameter condenser microphone
  • pre-polarized membrane with 22 mV/Pa sensitivity
  • free-field optimization
  • frequency range from 20 Hz to 16 kHz

Supplied with calibration chart.
