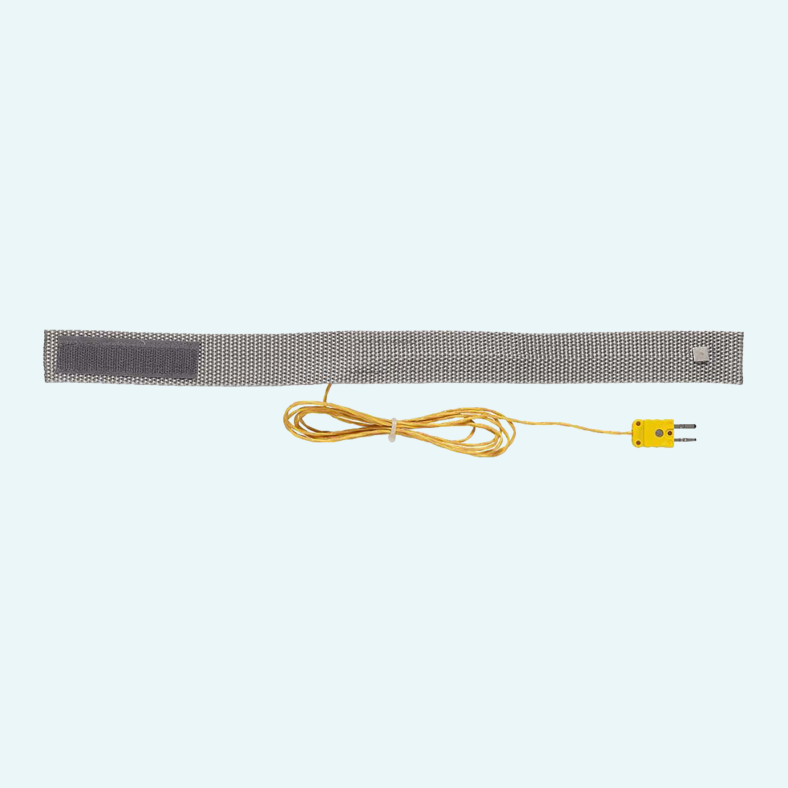

Pipe temperature measurement is simpler when the sensor can be fixed directly to the tube surface instead of held by hand. TP662 uses a K type thermocouple strap with Velcro, making it suitable for tube measurements where stable contact around the pipe is required.
The strap design supports measurements on tubes with a maximum diameter of 110 mm. A 400 mm length and 30 mm width provide the mechanical format for wrapping around the measuring point, while the 120 s response time defines the sensor reaction during measurement.
For users working with compatible K thermocouple instruments, TP662 offers a practical contact solution for pipe and tube applications where repeatable positioning matters.
The probe uses a K type thermocouple for temperature measurement with compatible instruments.
The strap fixes the sensor around tubes and supports contact measurement on pipe surfaces.
The probe is specified for measurements on tubes with a maximum diameter of 110 mm - no minimum diameter.
The strap has a length of 400 mm and a width of 30 mm.
The probe has a 120 s response time for reacting to temperature variation.
| Measuring principle |
Thermocouples
|
|---|---|
| Temperature sensor |
Type K, Class 1
|
| Temperature range |
Max. 180 °C
|
| Connection |
Miniature flat pin plug
|
|---|---|
| Probe length |
400 mm
|
| Type |
surface probe
|
