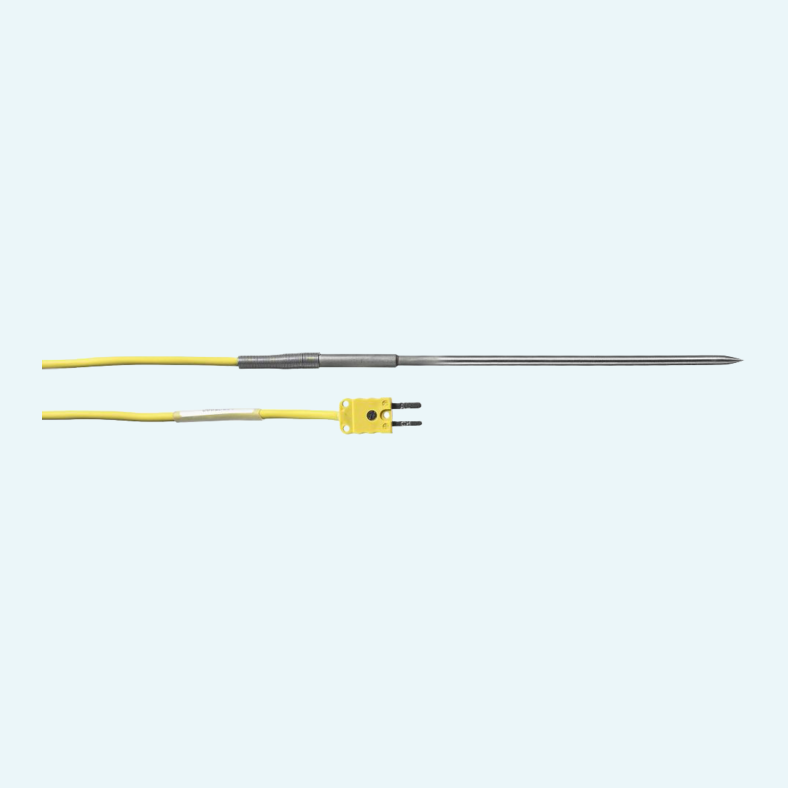

Insertion temperature checks need a probe that reaches the measured point and gives a defined result without unnecessary waiting. TP660 measures up to 400 °C and uses a Type K thermocouple, supporting penetration temperature measurement with compatible thermocouple instruments.
The 4 s response time supports routine checks where the sensor must react to a temperature change at the measuring point. Class 1 thermocouple construction and tolerance according to IEC 60584-2 provide a clear measurement basis for dependable readings.
With a 150 mm stem length and Ø 4.5 mm probe, TP660 is designed for penetration measurement where a compact insertion probe with a wider diameter is required.
The probe uses a Type K thermocouple with Chromel (Ni-Cr) and Alumel (Ni-Al) conductors.
The probe is designed for insertion-based temperature measurement with compatible thermocouple instruments.
The probe has a 150 mm stem length and Ø 4.5 mm diameter for penetration measurement.
The probe has a 4 s response time for reacting to temperature variation.
The thermocouple tolerance follows IEC 60584-2, with Class 1 stated for the probe.
| Measuring principle |
Thermocouples
|
|---|---|
| Temperature sensor |
Type K, Class 1
|
| Temperature range |
Max. +400 °C
|
| Connection |
Miniature flat pin plug
|
|---|---|
| Probe Diameter |
4.5 mm
|
| Probe length |
150 mm
|
| Type |
penetration probe
|
