Penetration temperature checks call for a probe that reaches into the medium and gives a defined reading without long waiting times. TP659 measures up to 400 °C and uses a Type K thermocouple for work with compatible thermocouple measuring instruments.
The 3 s response time supports efficient checks when the temperature at the measuring point changes. Class 1 thermocouple construction and tolerance according to IEC 60584-2 give users a clear basis for dependable measurement results.

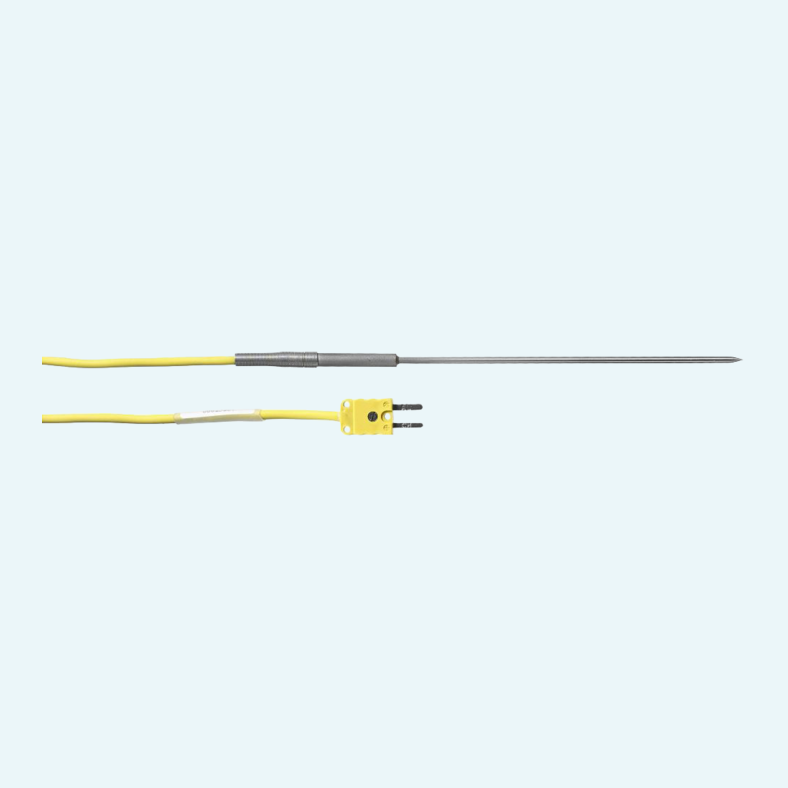

With a 150 mm stem length and Ø 3 mm probe, TP659 is suited to insertion-based temperature measurement where a compact penetration probe is required.
The probe uses a Type K thermocouple with Chromel (Ni-Cr) and Alumel (Ni-Al) conductors.
The probe is designed for insertion-based temperature measurement with compatible thermocouple instruments.

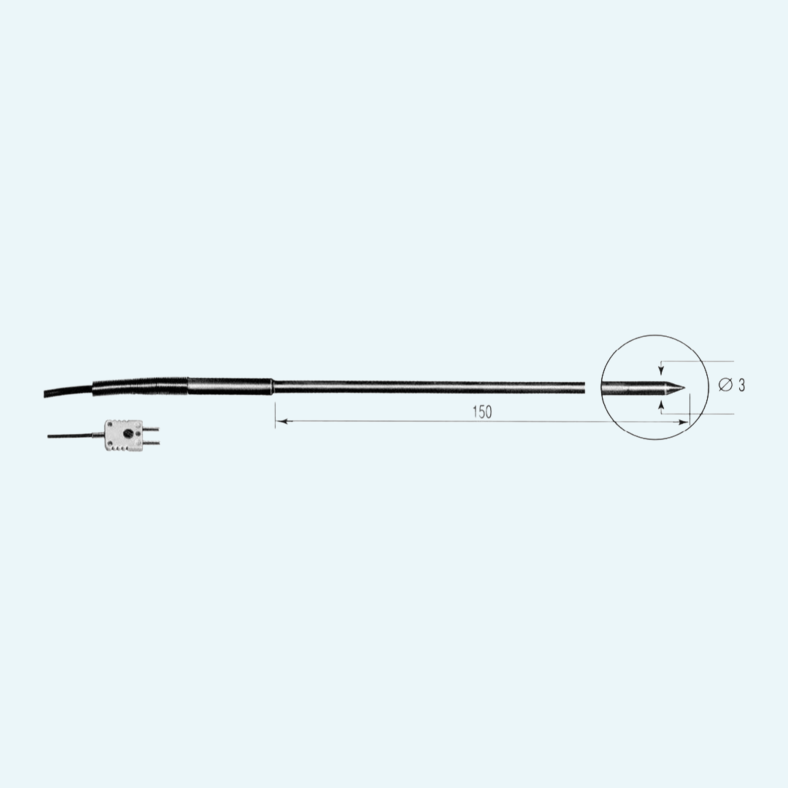

The probe has a 150 mm stem length and Ø 3 mm diameter for penetration measurement.
The probe has a 3 s response time (T0.63) for reacting to temperature variation.
The thermocouple tolerance follows IEC 60584-2, with Class 1 accuracy.
| Measuring principle |
Thermocouples
|
|---|---|
| Temperature sensor |
Type K, Class 1
|
| Temperature range |
Max. +400 °C
|
| Connection |
Miniature flat pin plug
|
|---|---|
| Probe Diameter |
3 mm
|
| Probe length |
150 mm
|
| Type |
penetration probe
|
