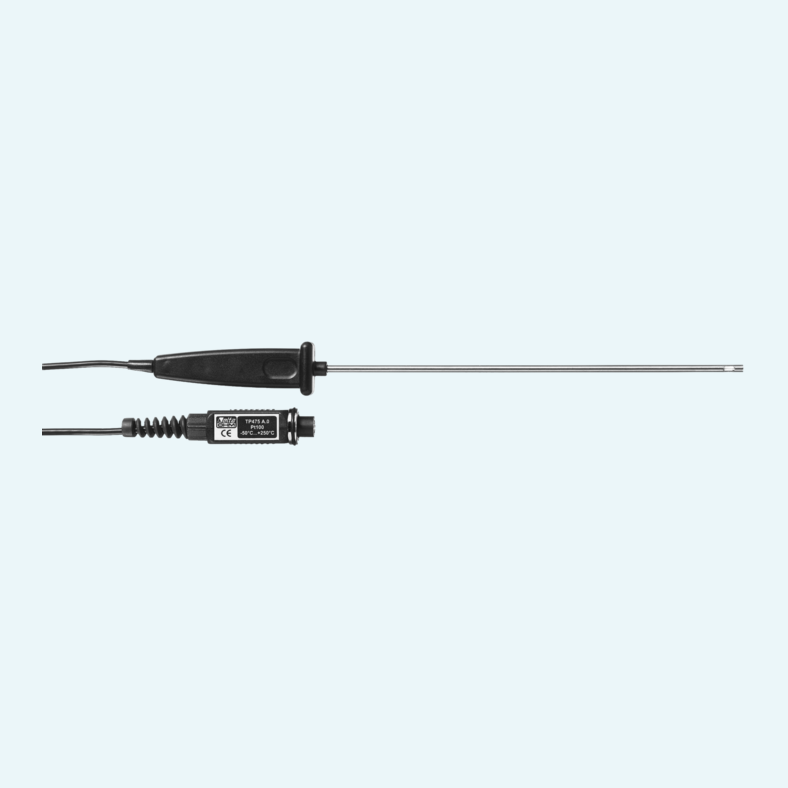

The TP475A.O is an air temperature probe designed for temperature measurement in air and gaseous environments. It uses a Pt100 sensor with SICRAM TP471 module, supporting identification and use with compatible measuring instruments.
With a measuring range of -50...+250 °C, the probe is suitable for a broad range of air temperature applications. The probe features a Ø 4 mm stem and a 230 mm stem length, supporting practical positioning in ducts, openings, and general air measurement points.
The probe is supplied with a 2 m cable for convenient handling during routine measurements. A T0.63 response time of 12 s supports reliable temperature checks in air applications.
Equipped with a Pt100 sensing element for air temperature measurement.
Integrated SICRAM TP471 module supports use with compatible measuring instruments.
Stem diameter Ø 4 mm and stem length 230 mm.
Accuracy is specified as ±0.1 °C at 0 °C and ±0.2 °C for -50 °C ≤ t ≤ 250 °C.
Supplied with a 2 m cable.
T0.63 is 12 s (to an air temperature of 100 °C).
| Measuring principle |
RTD
|
|---|---|
| Temperature sensor |
Pt100
|
| Temperature range |
-50...+250 °C
|
| Cable |
2 m
|
|---|---|
| Probe Diameter |
4 mm
|
| Probe length |
230 mm
|
