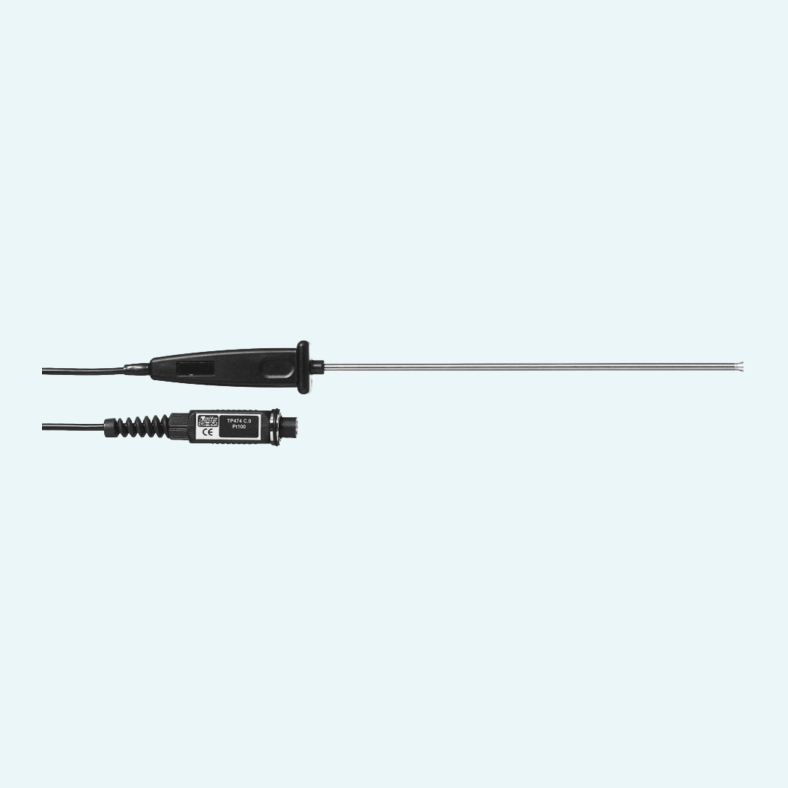

The TP474C.O is a contact temperature probe designed for surface temperature measurement where stable contact with the measuring point is required. It uses a Pt100 sensor with SICRAM TP471 module, supporting identification and use with compatible measuring instruments.
With a measuring range of -50...+300 °C, the probe is suitable for a broad range of surface temperature applications. The probe features a Ø 4 mm stem, a 230 mm stem length, and a Ø 5 mm contact surface, supporting practical use on accessible surfaces where defined probe geometry is important.
The probe is supplied with a 2 m cable for convenient handling during routine measurements. A T0.63 response time of 5 s supports responsive temperature checks in contact applications.
Equipped with a Pt100 sensing element for contact temperature measurement.
Integrated SICRAM TP471 module supports use with compatible measuring instruments.

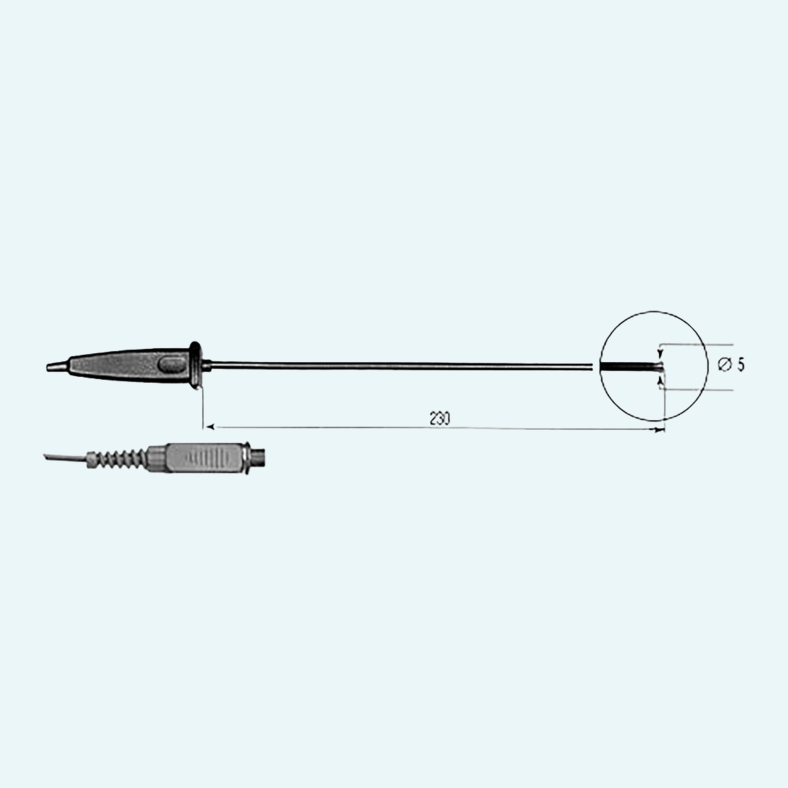

Stem diameter Ø 4 mm, stem length 230 mm, and contact surface Ø 5 mm.
Accuracy is specified as ±0.1 °C at 0 °C, ±0.2 °C for -50 °C ≤ t ≤ 250 °C, and ±0.3 °C for t < -50 °C and t > 250 °C.
Supplied with a 2 m cable.
T0.63 is 5 s (to the contact with a metal surface at 200 °C).
| Measuring principle |
RTD
|
|---|---|
| Temperature sensor |
Pt100
|
| Temperature range |
-50...+300 °C
|
| Cable |
2 m
|
|---|---|
| Probe Diameter |
4 mm
|
| Probe length |
230 mm
|
| Type |
surface probe
|
