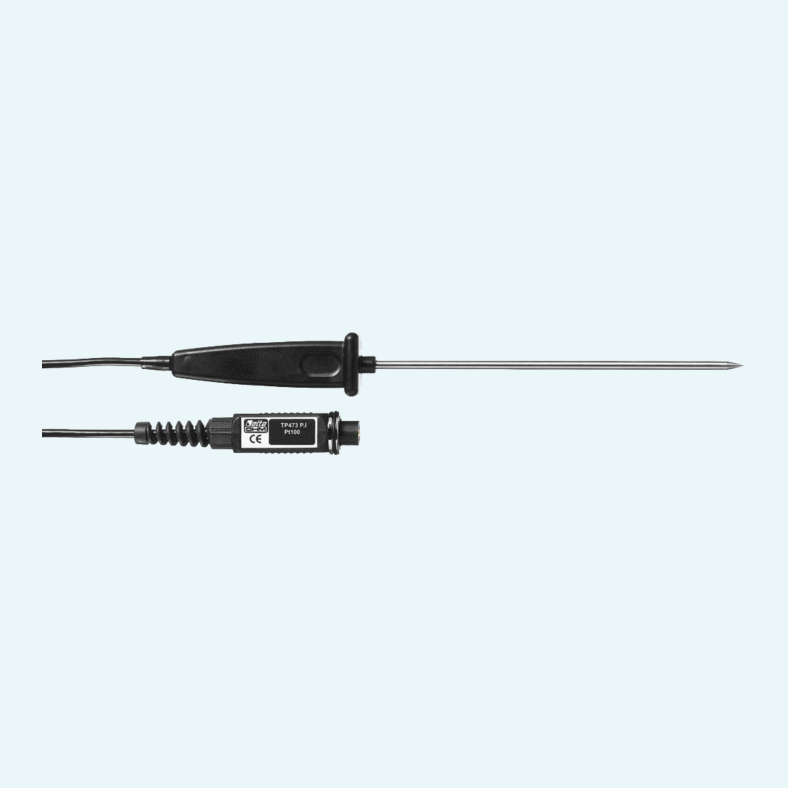

The TP473P series includes penetration temperature probes for measurement tasks where the probe needs to be inserted directly into the material being checked. Both versions use a Pt100 sensor and SICRAM TP471 module, supporting identification and use with compatible measuring instruments.
The family includes two variants: TP473P.O with a measuring range of -50...+300 °C and TP473P.I with a measuring range of -50...+400 °C. Both probes feature a Ø 4 mm stem with 150 mm stem length, making them suitable for penetration applications that require a slim probe geometry and defined insertion depth.
Each probe is supplied with a 2 m cable for practical handling in routine measurements. A T0.63 response time of 5 s supports responsive temperature measurement in penetration applications.
The TP473P series includes TP473P.O and TP473P.I, each equipped with a Pt100 sensor and SICRAM TP471 module.
Accuracy is specified as ±0.1 °C at 0 °C, ±0.2 °C for -50 °C ≤ t ≤ 250 °C, and ±0.3 °C for t < -50 °C and t > 250 °C.

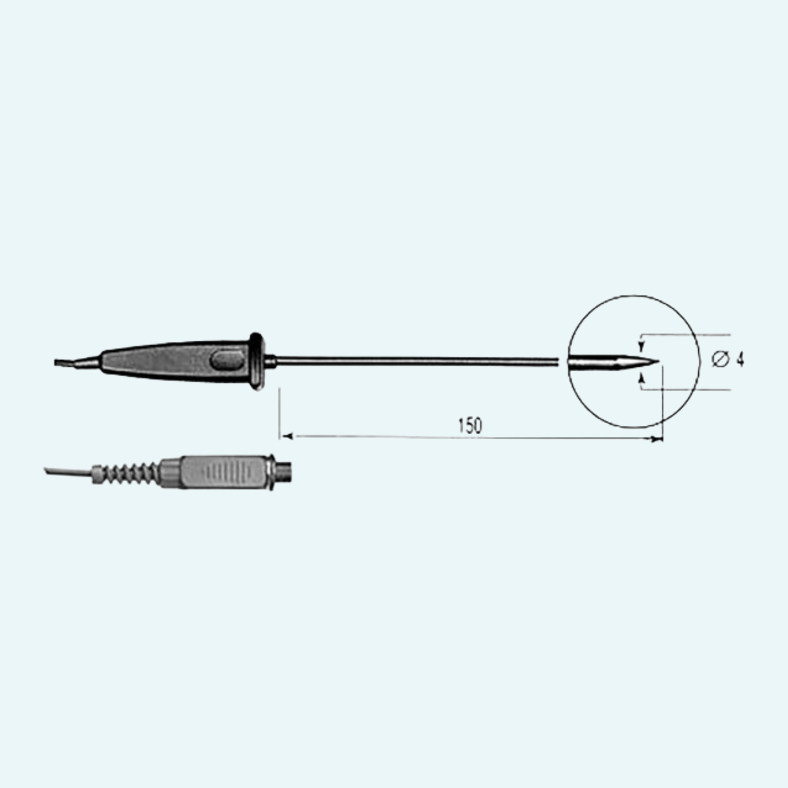

Stem diameter Ø 4 mm and stem length 150 mm.
T0.63 is 5 s.
| Measuring principle |
RTD
|
|---|---|
| Temperature sensor |
Pt100
|
| Temperature range |
-50...+400 °C / -50...+300 °C (depending on article)
|
| Cable |
2 m
|
|---|---|
| Probe Diameter |
4 mm
|
| Probe length |
150 mm
|
| Type |
penetration probe
|
