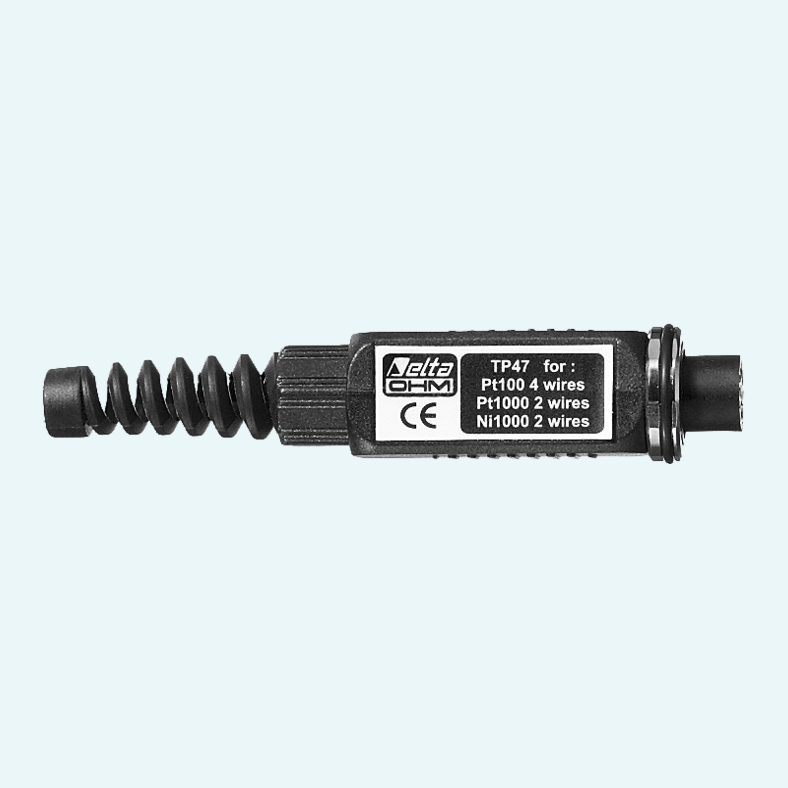

Connector for Pt100 or Pt1000 probes

TP47

Connector without SICRAM module for Pt100 and Pt1000 probes, compatible with 4-wire Pt100 probes, 3-wire Pt100 probes with some instruments, and 2-wire Pt1000 probes.
Order Code:
TP47
Article Number:
VTP47
Product Inquiry

Introduction

The TP47 is a connector designed for temperature probes that do not use a SICRAM module. It supports connection of Pt100 and Pt1000 probes to compatible measuring instruments, depending on the probe wiring configuration and instrument compatibility.

The connector can be used with 4-wire Pt100 probes as standard. It can also be connected to 3-wire Pt100 probes with some instruments, as well as to 2-wire Pt1000 probes. This supports flexible probe connection across different resistance thermometer configurations.

The TP47 is suitable for applications where a non-SICRAM connector is required for compatible Pt100 or Pt1000 probe setups.

No SICRAM module
No SICRAM module
Connector version without SICRAM electronic module.
Pt100/Pt1000 ready
Pt100/Pt1000 ready
Supports Pt100 and Pt1000 probe connection.
Multi-wire support
Multi-wire support
Compatible with 4-wire Pt100, some 3-wire Pt100, and 2-wire Pt1000 probes.
Flexible use
Flexible use
Supports connection across compatible probe and instrument combinations.

Features

Non-SICRAM connector

Designed as a connector without SICRAM module.

Pt100 compatibility

Supports 4-wire Pt100 probes and 3-wire Pt100 probes with some instruments.

Pt1000 compatibility

Supports 2-wire Pt1000 probes.

Application fit

Suitable for compatible resistance thermometer probe configurations without SICRAM electronics.
